X8 MIG WELDER 2.3 System structure

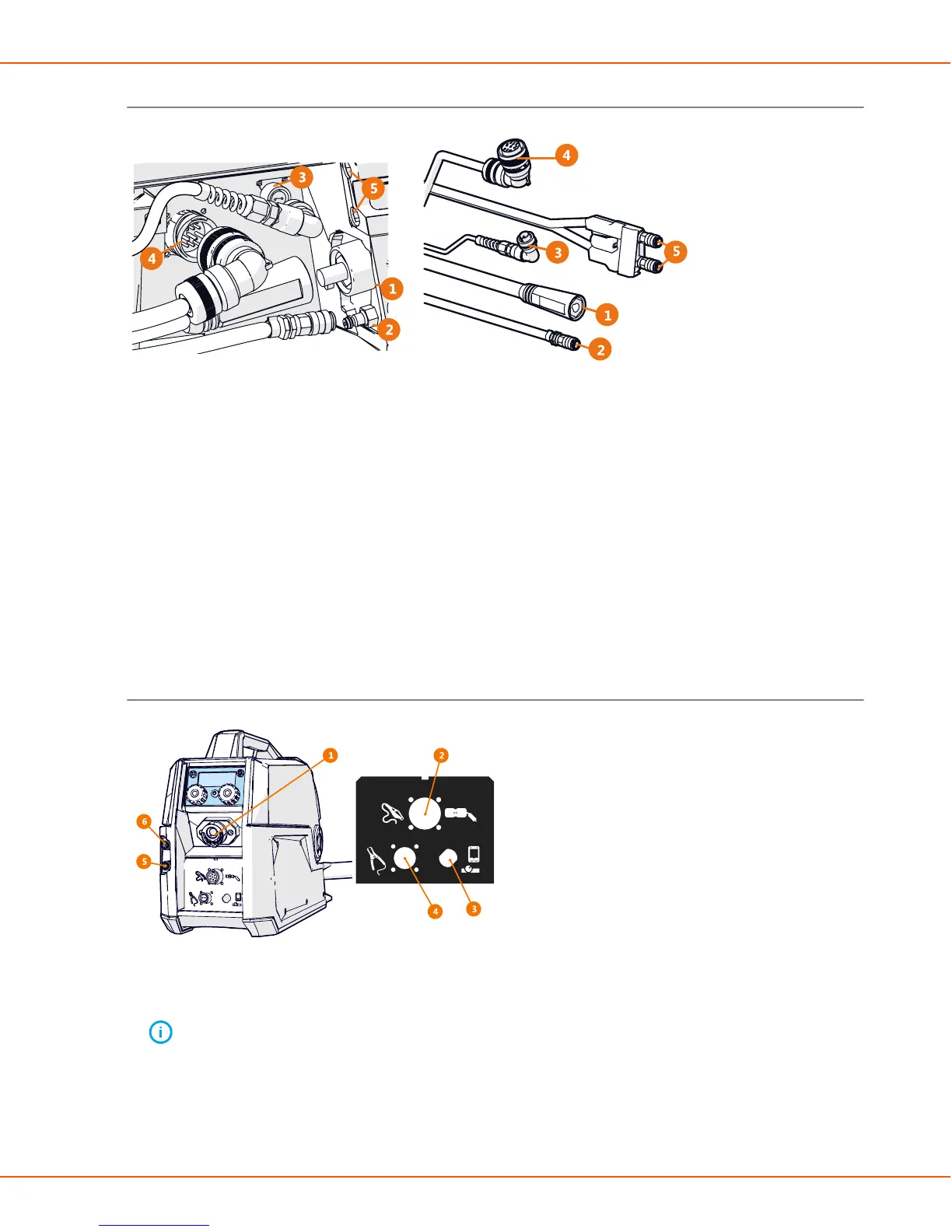

Interconnection cable connectors
1. Welding current
Supplies current from the power source to the wire feeder.
2. Shielding gas
Supplies shielding gas to the welding gun.
3. Measurement
Supplies the welding parameters measured during welding.
4. Control
Supplies data and operating voltage to the wire feeder.
5. Coolant outlet and inlet
Circulates coolant to and from the welding gun.
For information on the installation of the cables, see Cables installation on page 51.
External component connectors
1. Kemppi Gun Adapter
Connects to the welding gun.
Note:
The wire feeder is supplied with Kemppi Gun Adapter.
2. Subfeeder
Provides control to optional SuperSnake subfeeder or a motorized welding gun.
OPERATING MANUAL | EN 20
©
KEMPPI 2017 | 1817
