X8 MIG WELDER 2.4 Installation
3.

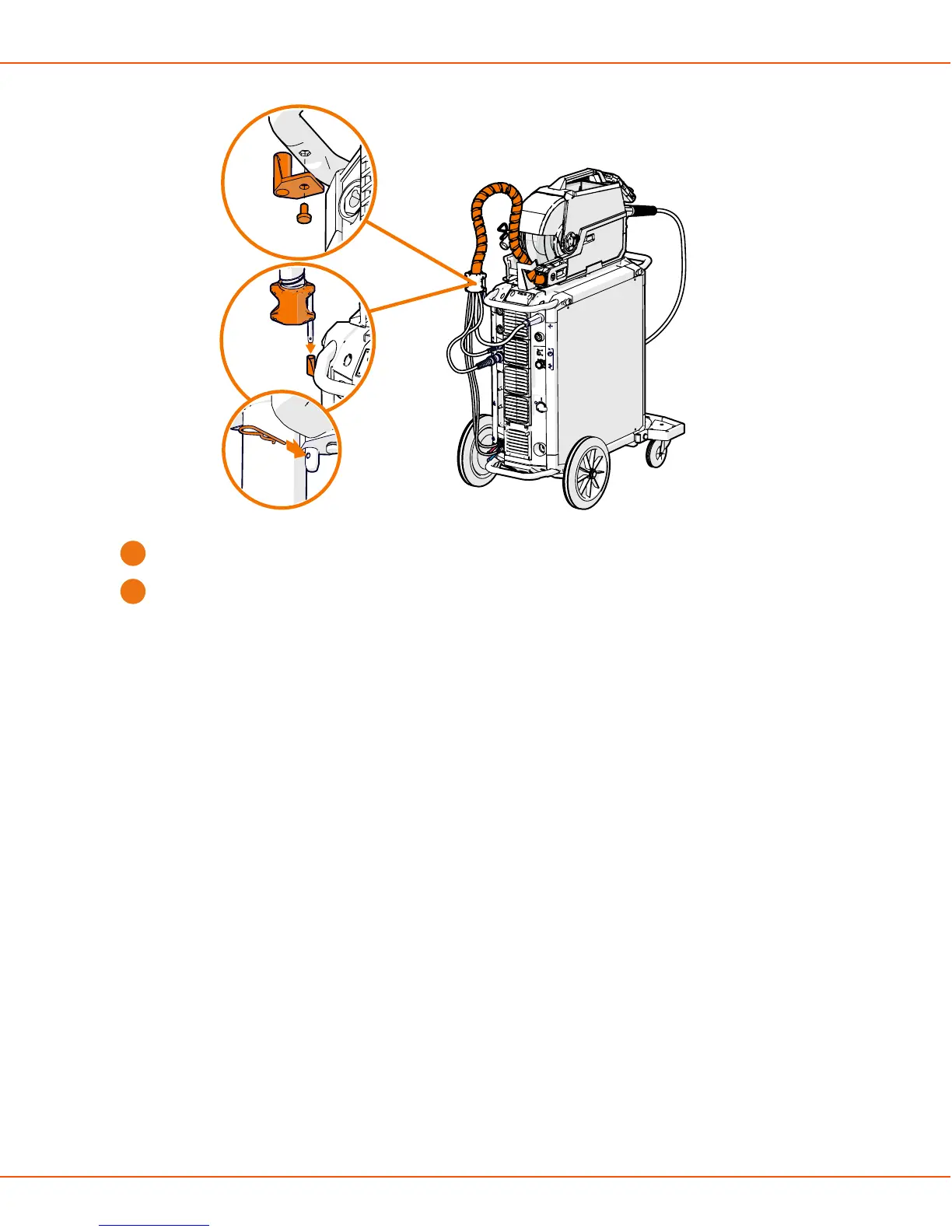

Insert the supplied locking pin through the hole in the strain relief pin.
4.
Route the cable bundle from the back of the power source and attach the strain relief in the
other end of the cable to the left-hand side of the wire feeder. For more information, see .
2.4.4 Cables installation
For a detailed description of the power source and wire feeder cabling, see Installing
interconnection cable. For a full overview of the cabling, see Cabling diagram.
2.4.4.1 Installing interconnection cable
Install the interconnection cable first to the the wire feeder and then to the power source.
Proceed as follows:
OPERATING MANUAL | EN 51
©
KEMPPI 2017 | 1817
