X8 MIG WELDER 2.3 System structure
3. Settings button
The button lights up orange, when the view is activated.
4. Left control knob
5. Right control knob
6. Left and right button
For more information on the use and features of the control panel, see Wire feeder views on page
106.

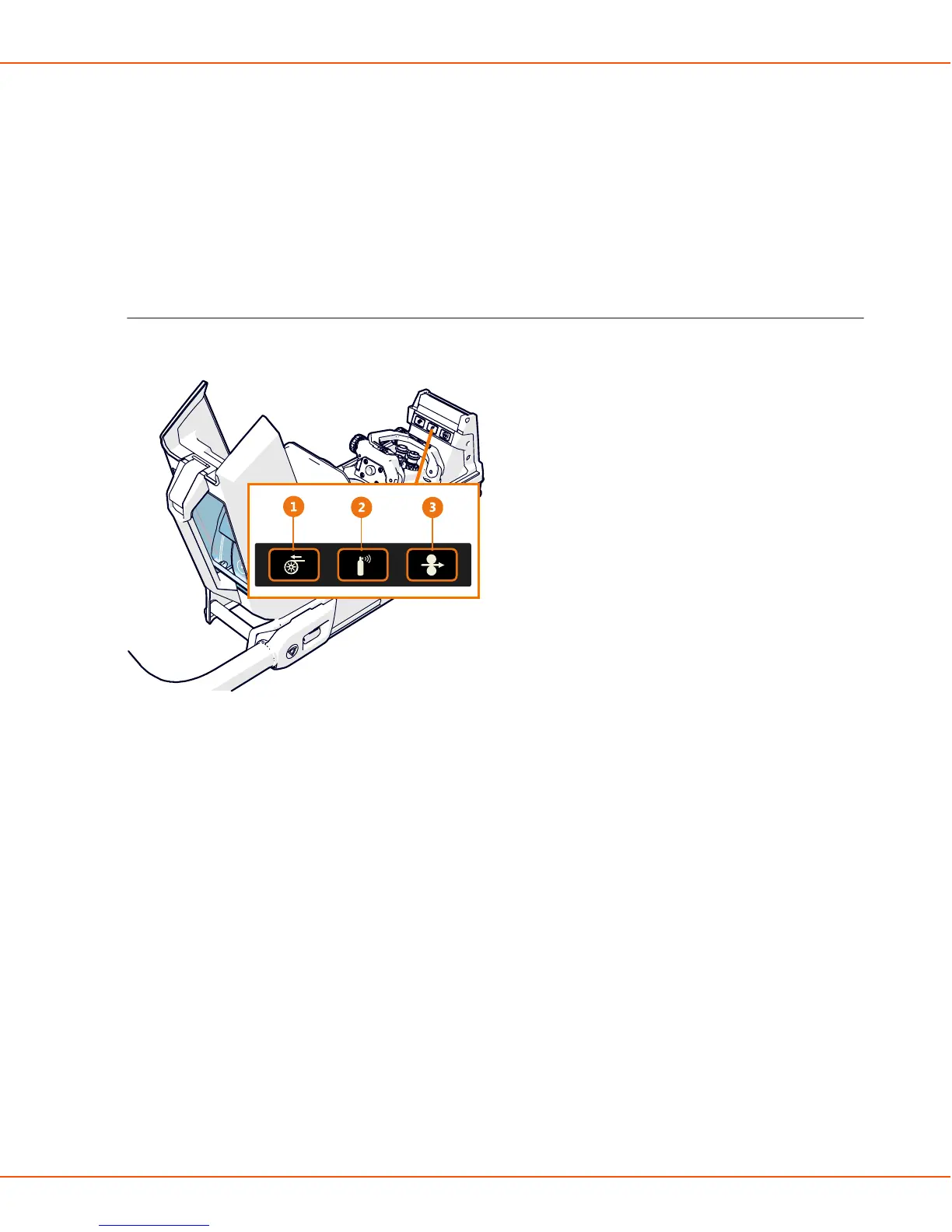

Control buttons on the inside
The wire feeder has control buttons inside the wire cabinet.
1. Wire retract button
Drive the filler wire backward with arc off.
2. Gas test button
Test the shielding gas flow, or flush out the remainder of the previous gas.
3. Wire inch button
Drive the filler wire forward with arc off.
OPERATING MANUAL | EN 19
©
KEMPPI 2017 | 1817
