X8 MIG WELDER 2.3 System structure
4. Left and right button
When the button lights up green, you can press the button to confirm an action.
5. Display
6. View buttons
7. Channel button
The button lights up blue, when the view is activated.
8. Menu button
The button lights up white, when the view is activated.
9. Settings button
The button lights up orange, when the view is activated.

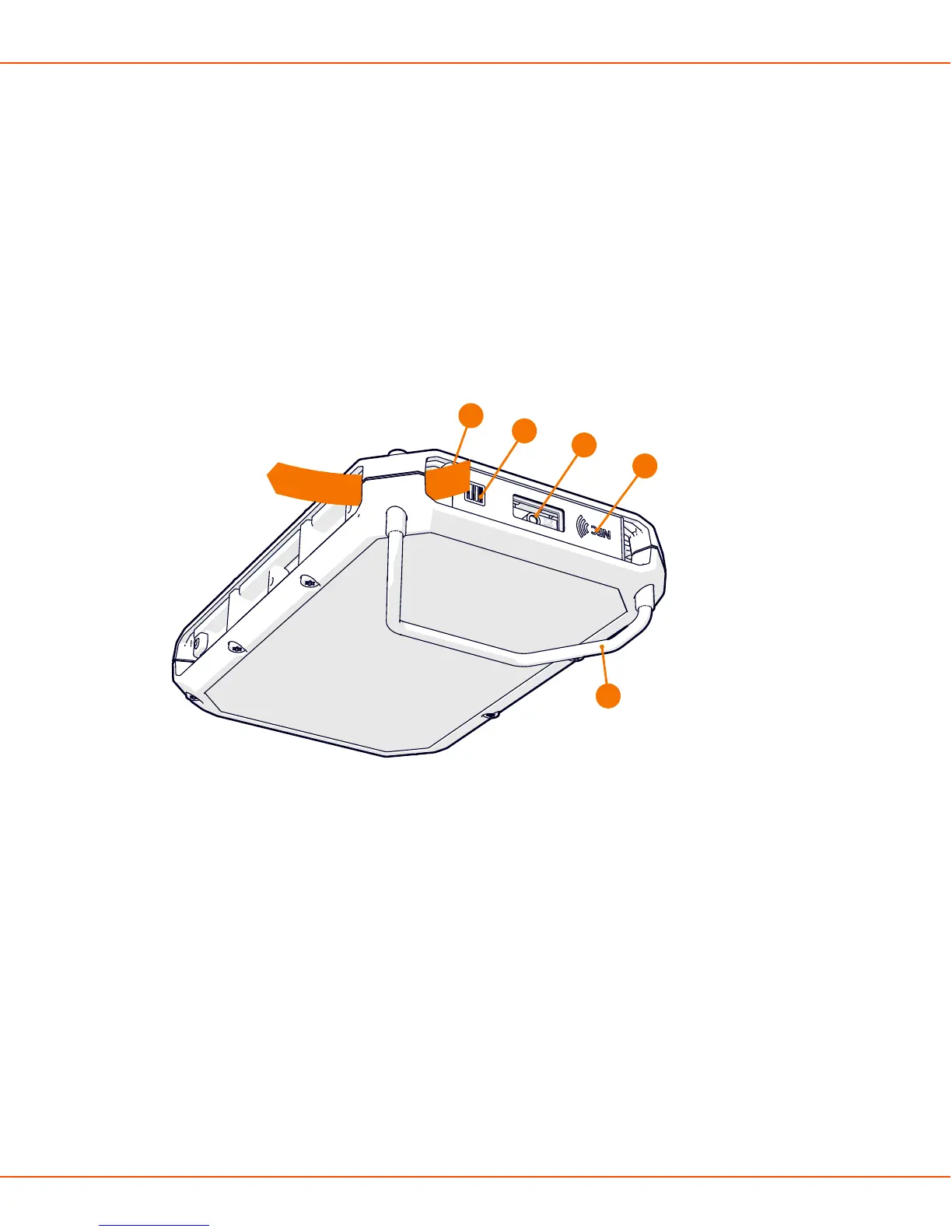

14
10
11
12
13
10. NFC reader
11. Bar code reader
12. ON/OFF button for NFC and bar code readers
13. Loop for a sling
14. Hook
When you connect or disconnect the charger, Control Pad shows you the charge level.
