KERN MRS120-3 User Manual

MRS-BA-defsi-0410 128
B Blank (space)
S Prefix (+,–, space)
DP Decimal point
D0...D7 Digits
U ... Unit (only if the weight is stable, otherwise no unit is sent)
CR Carriage return
LF Line feed
NOTE
Unused positions are filled with spaces.
The decimal point DP can be between D0 and D7.

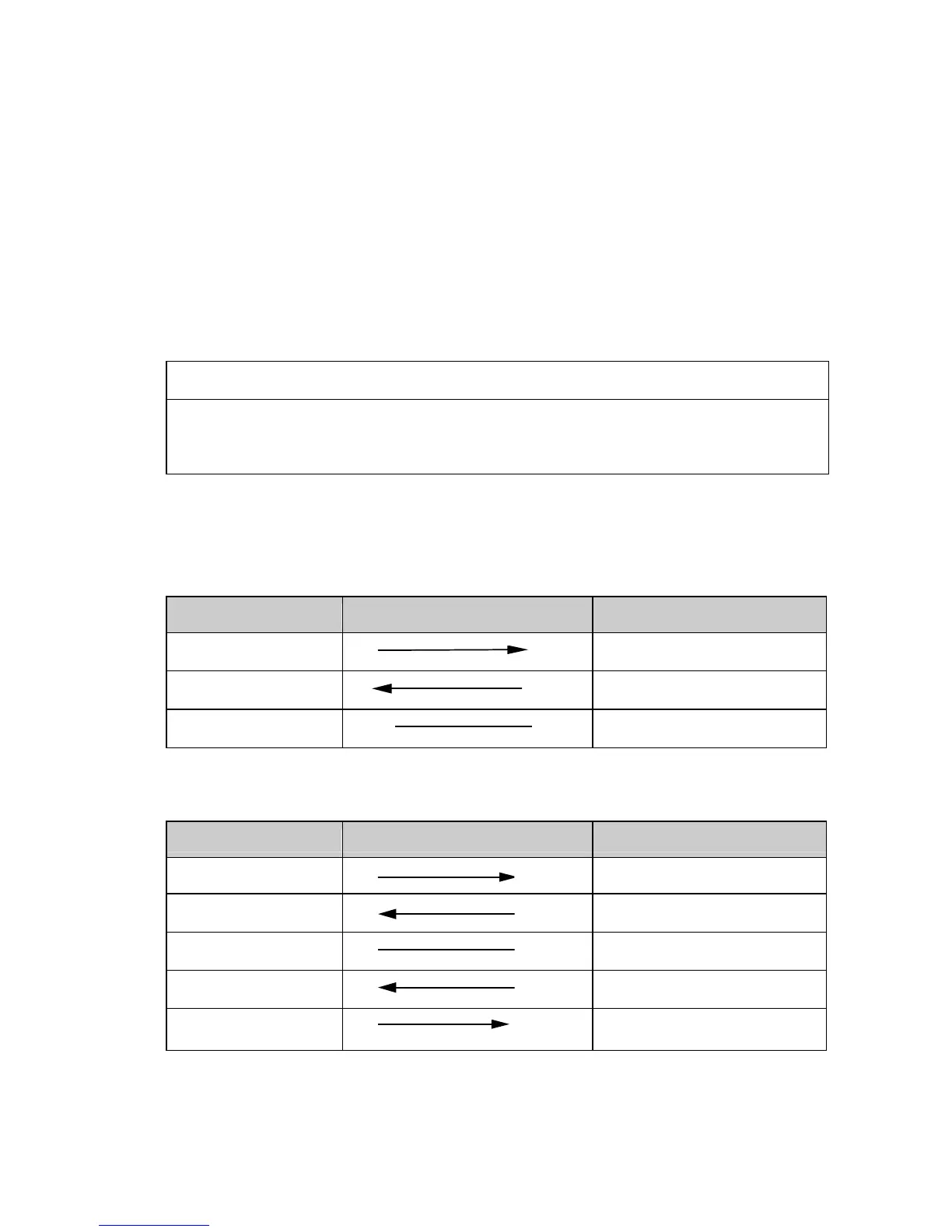

6.1 Connection scheme
– Standard duplex connection
MRS 120-3 RJ 45 D25 / D9 Peripheral instrument
RS 232 out 2 3 / 2 RS 232 in
RS 232 in 6 2 / 3 RS 232 out
GND 5 7 / 5 GND
•
Standard duplex connection with additional hardware
handshake in the peripheral instrument
MRS 120-3 RJ 45 D25 / D9 Peripheral instrument
RS 232 out 2 3 / 2 RS 232 in
RS 232 in 6 2 / 3 RS 232 out
GND 5 7 / 5 GND
CTS 3 20 / 4 DTR
DTR 7 5 / 8 CTS
