6 Disassembly and Repair

128 Keysight 33210A Service Guide

Front-Panel Removal Procedure

1 Gently lift both ends of the flat flex cable connector actuator and disconnect

the cable from the main PC board (A1 assembly).

CAUTION

To prevent damage to the cable and connector, use care when lifting the

actuator. Excessive or uneven force may damage the actuator or connector.

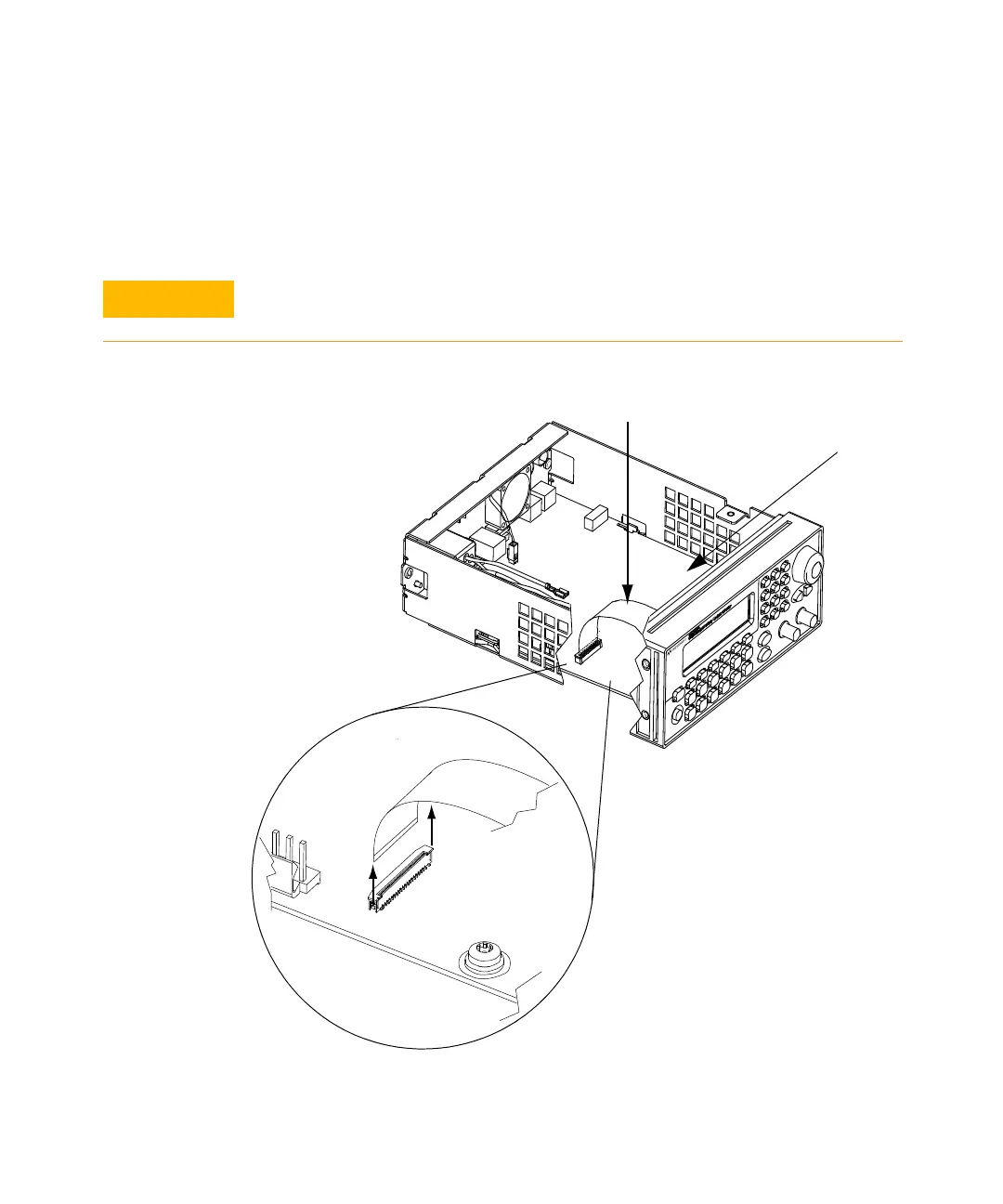

Flat Flex Cable
