Front-Panel Menu Operation 3
Keysight 33210A Service Guide 47
To Store the Instrument State
You can store the instrument state in one of four non-volatile storage locations. A
fifth storage location automatically holds the power-down configuration of the
instrument. When power is restored, the instrument can automatically return to its
state before power-down.

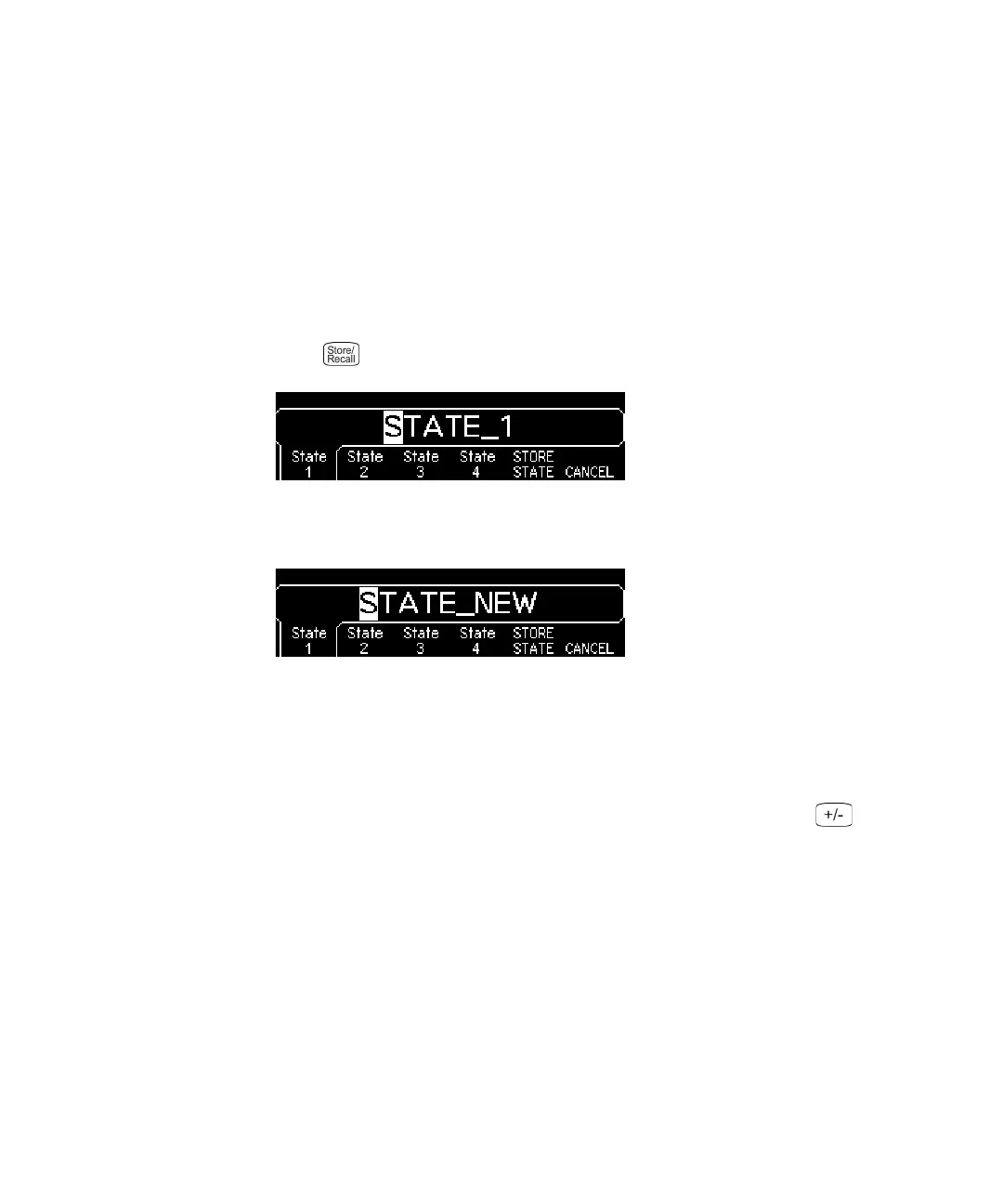

1 Select the desired storage location.
Press and then select the Store State softkey.
2 Select a custom name for the selected location.
If desired, you can assign a custom name to each of the four locations.
– The name can contain up to 12 characters. The first character
must be a
letter but the remaining characters can be letters, numbers
, or the
underscore character ( “ _ ” ).
– To add additional characters, press the right-cursor key until the cursor is
to the right of the existing name and then turn the knob.
– To delete all characters to the right of the cursor position, press .
– To use numbers in the name, you can enter them directly from the numeric
keypad. Use the decimal point from the numeric keypad to add the
underscore character ( “ _ ” ) to the name.
3 Store the instrument state.
Press the STORE STATE softkey. The instrument stores the selected function,
frequency, amplitude, dc offset, duty cycle, symmetry, as well as any
modulation parameters in use. The instrument does not store volatile
waveforms created in the arbitrary waveform function.
