Calibration Procedures 4
Keysight 33210A Service Guide 69
AC Amplitude (high-impedance) Verification
This procedure checks the ac amplitude output accuracy at a frequency of 1 kHz,
and establishes reference measurements for the higher frequency flatness
verification procedures.

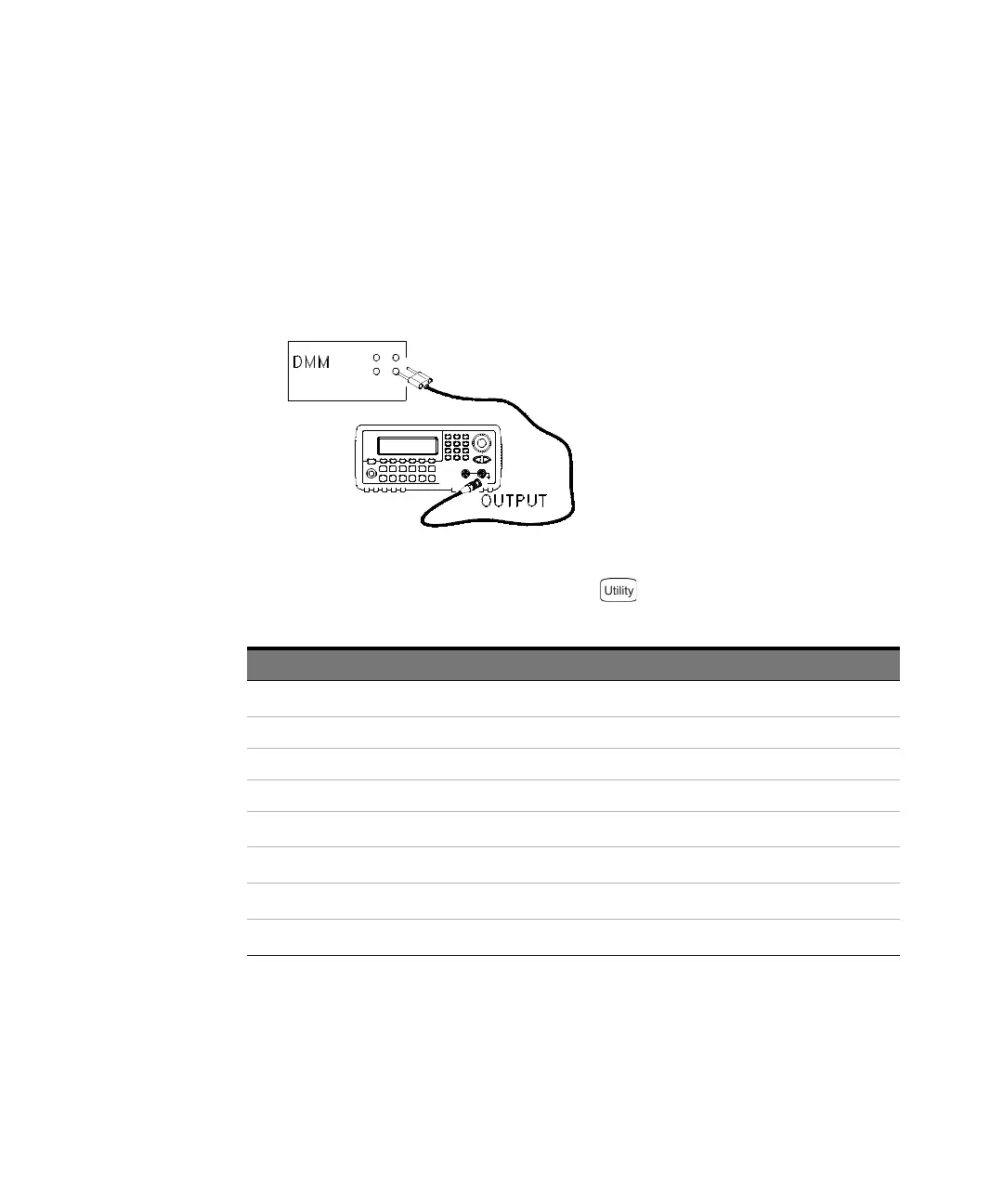

1 Set the DMM to measure Vrms Volts. Connect the DMM as shown below.
2 Set the instrument to each output described in the table below and measure
the output voltage with the DMM. Press to set the output impedance to
High–Z. Be sure the output is enabled.
Keysight 33210A Measurement
Output Setup Function Frequency Amplitude Nominal
Error
[a]
[a] Based upon 1% of setting ±1 mVpp (50 W); converted to Vrms for High–Z.
Q High Z Sine Wave 1.000 kHz 20.0 mVrms 0.020 Vrms ± 0.00091 Vrms
Q High Z Sine Wave 1.000 kHz 67.0 mVrms 0.067 Vrms ± 0.00138 Vrms
Q High Z Sine Wave 1.000 kHz 200.0 mVrms 0.200 Vrms ± 0.00271 Vrms
Q High Z Sine Wave 1.0v00 kHz 670.0 mVrms
0.670 Vrms
[b]
[b] Enter the measured value on the worksheet (76) as 1kHz_0dB_reference.
± 0.00741 Vrms
Q High Z Sine Wave 1.000 kHz 2.000 Vrms
2.0000 Vrms
[c]
[c] Enter the measured value on the worksheet (76) as 1kHz_10dB_reference.
± 0.0207 Vrms
Q High Z Sine Wave 1.000 kHz 7.000 Vrms
7.000 Vrms
[d]
± 0.0707 Vrms
Q High Z
Square Wave
[a]
1.000 kHz 900.0 mVrms 0.900 Vrms ± 0.0100 Vrms
