4 Calibration Procedures
88 Keysight 33210A Service Guide
Internal ADC Adjustment/Self Calibration
The function generator stores calibration constants related to the gain and offset
of the internal ADC. Setup 6 must always be performed before any later
adjustments are attempted. The internal ADC is then used as a source for the
calibration constants generated in setup 7.

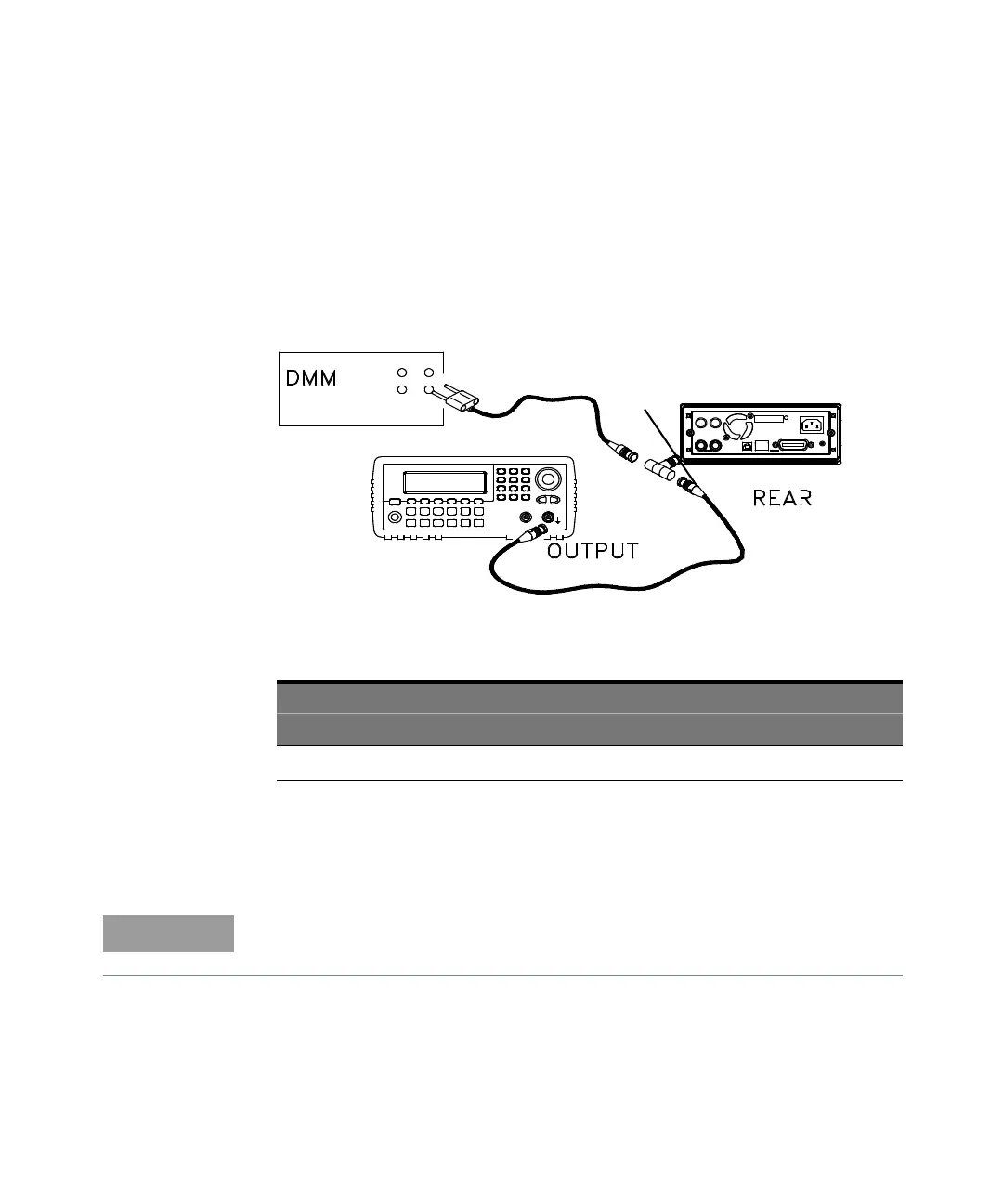

1 Make the connections as shown below.
2 Set the DMM to display 5 1/2 digits.
3 Enter the following setup, and then measure the dc value.
4 Enter the measured value of the dc source using the numeric keypad or knob.
5 Disconnect all cables from the rear panel Modulation In connector.
Nominal Signal
Setup DC level
6
[a]
[a] Constants are stored after completing this setup.
~1.1 Vdc ±10% Calibrates the internal ADC.
This setup requires approximately 15 seconds to complete.
