2- 28 Keysight E5260/E5270 Programming Guide, Edition 4
Remote Mode Functions
Digital I/O Port
Accessories
The following accessories are available to connect the Digital I/O port.
• Keysight 16493G Digital I/O connection cable
Used to connect the Digital I/O port to a D-Sub (f) 25-pin connector. This cable
should be connected between two E5260/E5270s, or between the E5260/E5270
and the N1253A-200 BNC box. Cable length depends on the following option
items:
16493G-001: Approx. 1.5 m
16493G-002: Approx. 3 m
• Keysight N1253A-100 Digital I/O T-cable
Used to connect the Digital I/O port to a D-Sub (f) 25-pin connector and a
D-Sub (m) 25-pin connector. This cable must be used to connect three or more
E5260/E5270s. Cable length is as following:
• D-Sub (m) to D-Sub (m): Approx. 1.5 m
Both connectors should be connected to the Digital I/O ports.
• D-Sub (m) to D-Sub (f): Approx. 30 cm
The D-Sub (f) connector should be connected to the additional N1253A-100
or the 16493G cable to connect the third or following E5260/E5270.
• Keysight N1253A-200 Digital I/O BNC box
Used to convert the D-Sub connector to the BNC connectors. Only the DIO 1 to
DIO
8 are connected to the BNC (f) connectors individually. To use the BNC
box, connect the 16493G cable between the Digital I/O port and the BNC box.

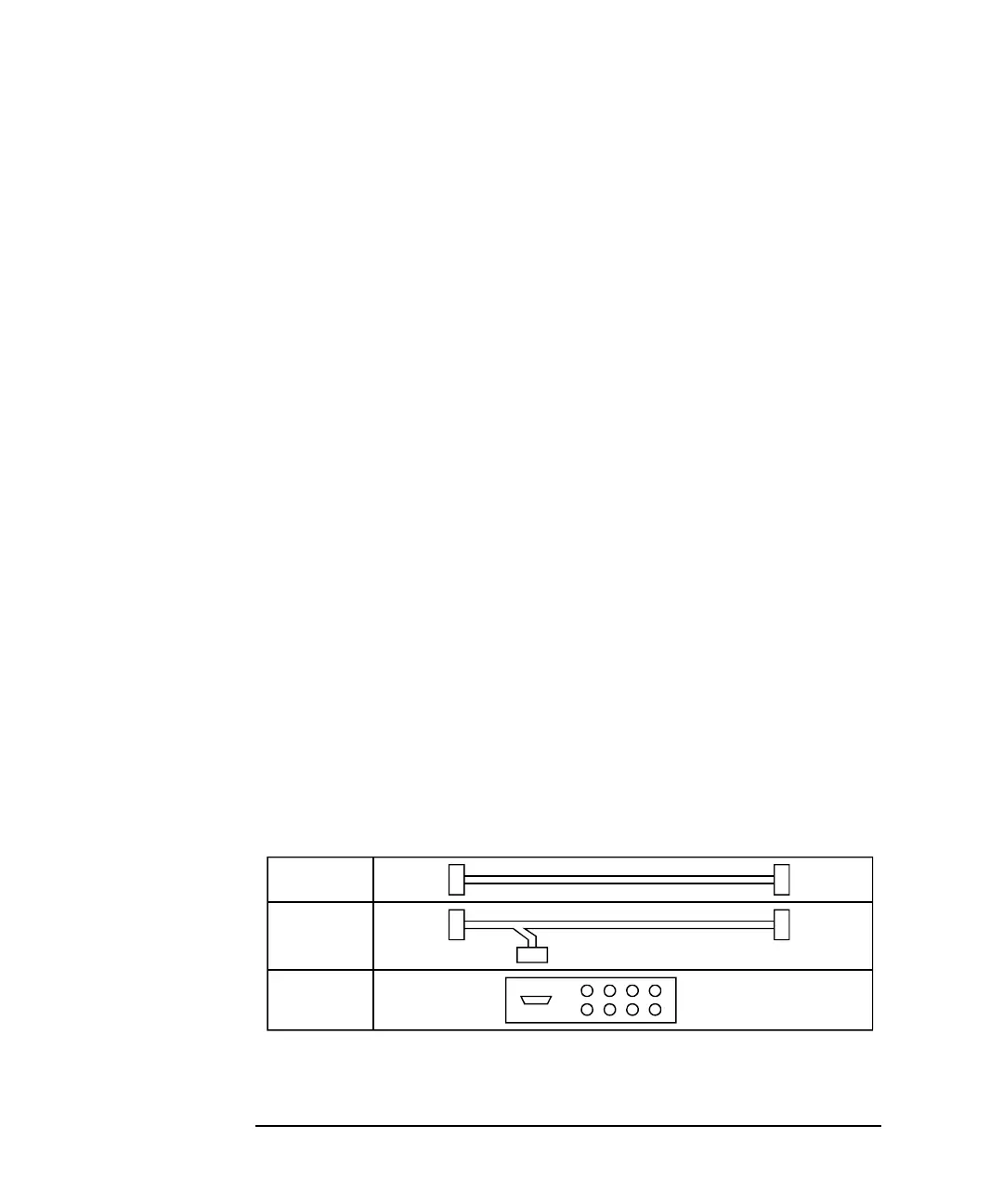

Figure 2-17 Accessories for Digital I/O Port
D-Sub (m)
D-Sub (m)
D-Sub (m)
D-Sub (m)
D-Sub (f)
D-Sub (f)
N1253A-100
N1253A-200
16493G
BNC (f) x 8
