Keysight E5260/E5270 Programming Guide, Edition 4 2- 31
Remote Mode Functions
Trigger Function
Trigger Input
A trigger input operation example is shown in Figure 2-20. Measurement or source
output can be started by the input trigger sent through the port specified by the TGP
command. See
Table 2-3.

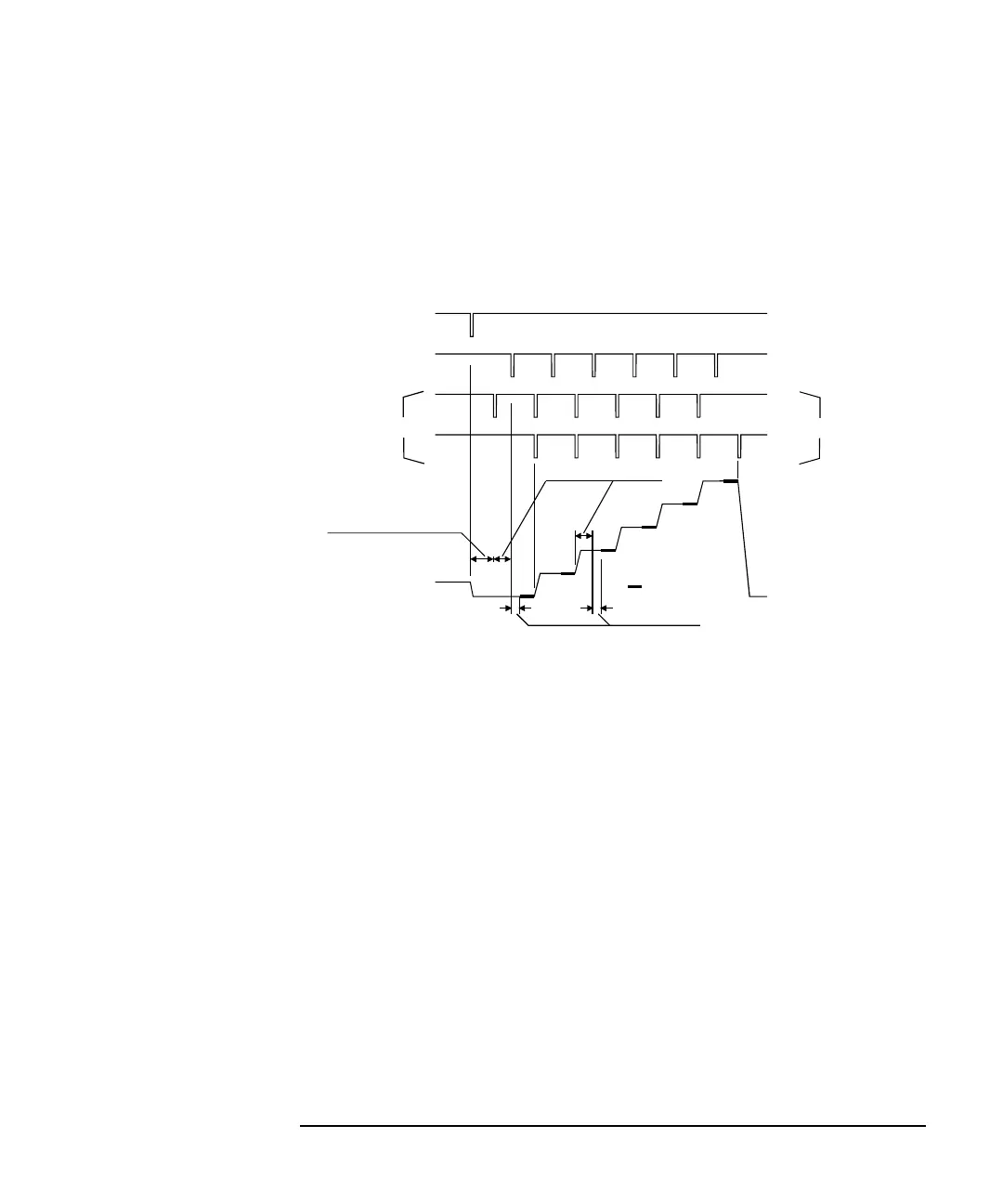

Figure 2-20 Trigger Input Example, Staircase Sweep Measurement, Negative Logic
Initial Settings The following functions are available in the initial settings:
• Trigger port: Ext Trig In
• Trigger type: Start Measurement (type 1)
• Commands for the trigger wait: WS, TM3, or PA with TM3
Input Trigger The E5260/E5270 responds to the input trigger (minimum pulse width 10 μs) that
changes the signal level from high (approx. 2.4 V) to low (approx. 0.8
V). This is
negative logic. You can change it to positive logic by using the third parameter of
the TGP command.
Measurement
Trigger Delay
Delay time from a trigger input to starting a step measurement. The delay time is
available for the Start Step Measurement trigger (type 3). You can set the delay time
value by using the WT command.
: Measurement
TGP t,1,p,3
TGP t,1,p,2
TGP t,1,p,1
Hold time (Case 2)
or more (Case 1)
Delay time or more
Start Step Measurement
Start Step Output Setup
Start Measurement
Measurement trigger delay
Case 1: With trigger for
first sweep step
Case 2: With trigger for
output after sweep
Case 1
Case 2
To Next Page
