Keysight Technologies E5260 Series

2- 34 Keysight E5260/E5270 Programming Guide, Edition 4
Remote Mode Functions
Trigger Function
Using Multiple
Channels
If you use the multiple measurement channels, an edge trigger will be sent or a gate
trigger level will be returned when the measurement is completed by all channels.
For the multi channel sweep measurement, an edge trigger will be sent or a gate
trigger level will be returned when the source output setup is completed by all
channels, or when the measurement is completed by all channels.

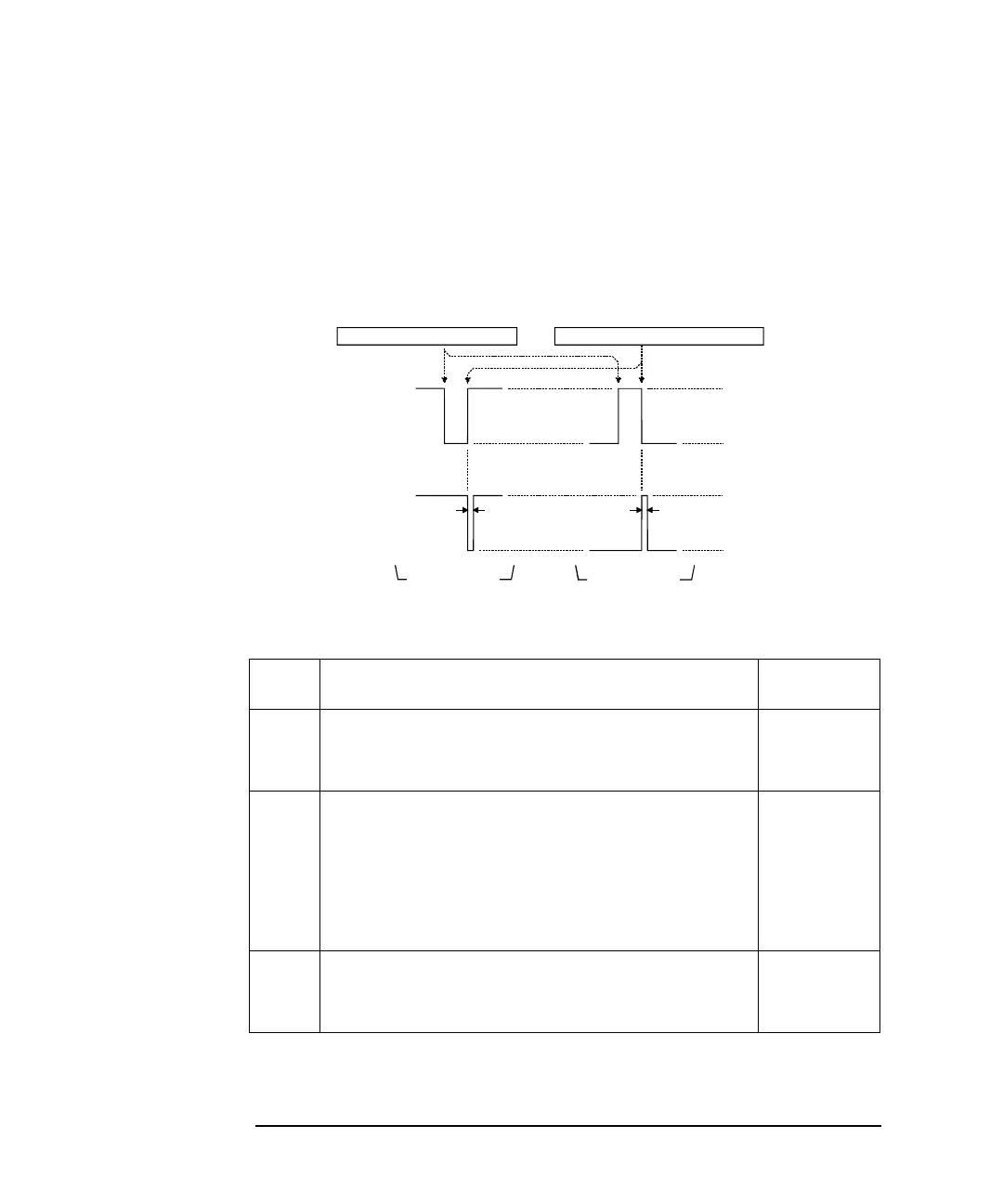

Figure 2-22 Output Trigger
Table 2-4 Type of Trigger Output
Type Timing of Trigger Output by E5260/E5270
Command
a
a. t selects the trigger output terminal, Ext Trig Out or a digital I/O.
p
selects positive or negative logic. m selects edge or gate trigger.
1 When the measurement specified by the MM command
is completed.
TGP t,2,p,1
TGXO m
TM3
2 When the source trigger delay time is elapsed after the
sweep step output setup or pulse output setup is
completed.
Available for the staircase sweep, pulsed spot, pulsed
sweep, staircase sweep with pulsed bias, and multi
channel sweep measurement.
TGP t,2,p,2
TGSO m
3 When the measurement is completed at each sweep step
for the staircase sweep or multi channel sweep
measurement.
TGP t,2,p,3
TGMO m
Edge trigger
Gate trigger
Negative logic Positive logic
High
(Approx. 2.4 V)
Low
(Approx. 0.8 V)
Operation complete or OS or OSXOperation start or OS or OSX
Approx. 10us
High
(Approx. 2.4 V)
Low
(Approx. 0.8 V)
