108 Keysight Agile Signal Generator Service Guide
Assembly Replacement
A2 Power Supply
Tools Required
— T-10 driver
Removal Procedure
Refer to Figure 3-14 for this procedure.
1. Disconnect the power cord.
2. Remove the outer cover from the signal generator. Refer to “Outer Cover”
on page 99.
3. Remove the front bottom cover from the signal generator. Refer to “Inner
Bottom Covers” on page 101.

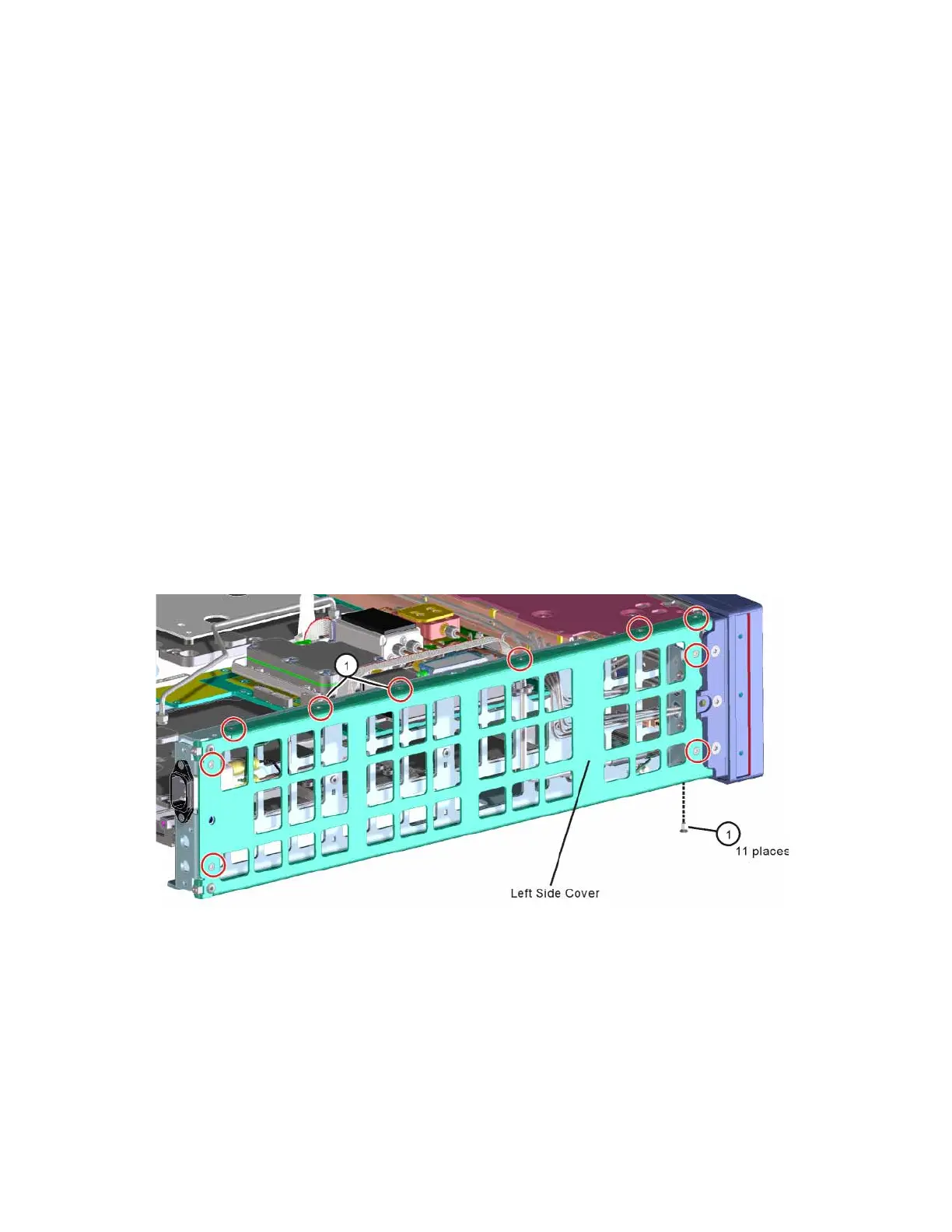

4. Refer to Figure 3-12. Using the T-10 driver, remove the eleven screws (1)
(0515-1946) that attach the left side cover to the chassis. Remove the left
side cover.
Figure 3-12 Left Side Cover Removal
To Next Page
