80 Keysight Agile Signal Generator Service Guide
Replaceable Parts

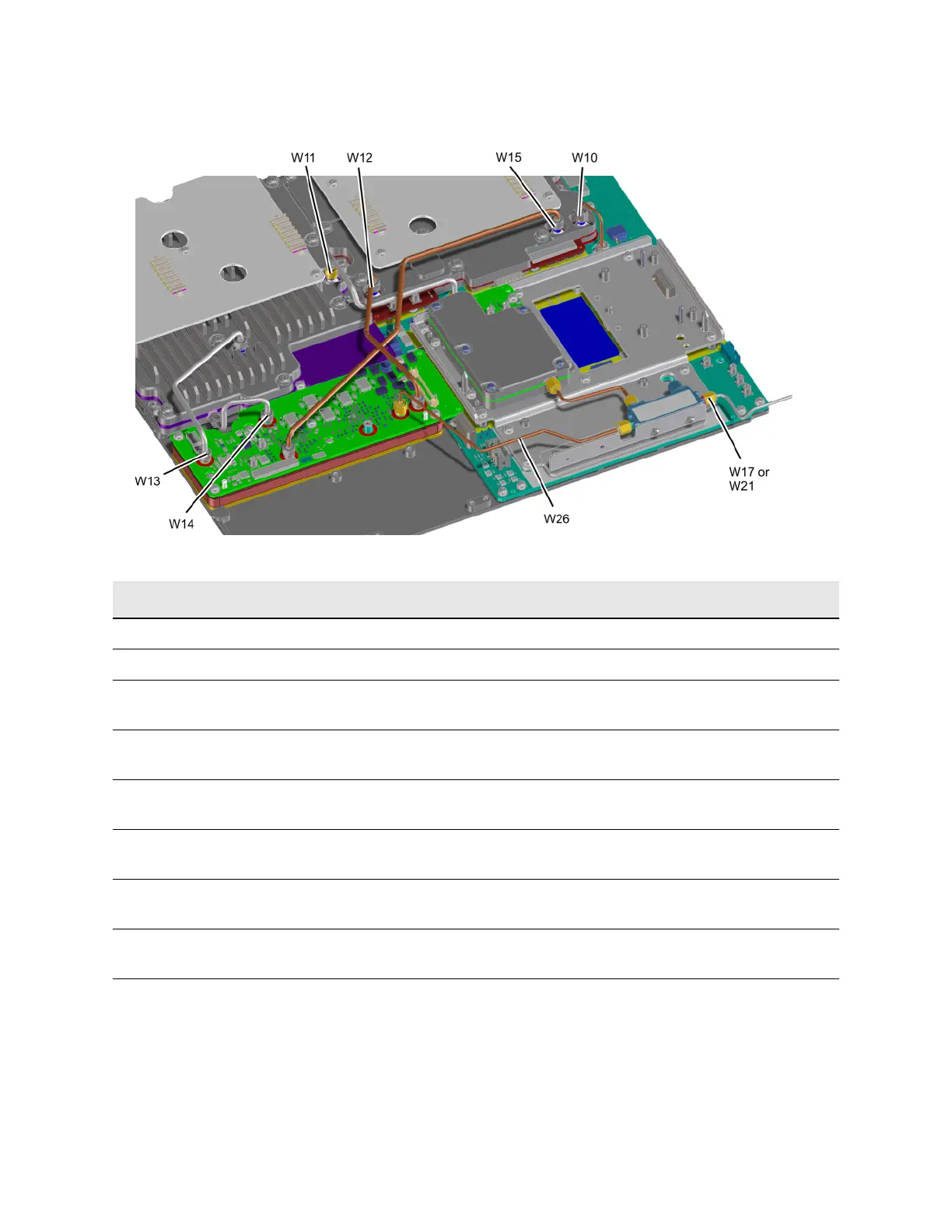

Figure 2-14 Microdeck Cables Option 520/52E, UNM
Item Description Part Number
W10 Cable Assembly - RF, Semi-Rigid, Agile Cleanup Bypass Output N5191-20122
W11 Cable Assembly - RF, Semi-Rigid, Agile Cleanup Output to Multiplier Input N5191-20123
W12
a
a. NOTE: for instruments with serial prefix < MY/SG/US5619xxxx, cables W12 and W15 MUST be
replaced at the same time.
Cable Assembly - RF, Semi-Rigid, Low Band Output to Mod Filter Low Band
Input
N5191-20238
W13 Cable Assembly - RF, Semi-Rigid, Multiplier Low Band Output to Mod Filter Low
Band Input
N5191-20125
W14 Cable Assembly - RF, Semi-Rigid, Multiplier High Band Output to Mod Filter
High Band Input
N5191-20126
W15
a
Cable Assembly - RF, Semi-Rigid, Mod Filter Low Band Output to Low Band
Board Input.
N5191-20239
W17 Cable Assembly - RF, Semi-Rigid, Mech Attn Output to RF Out, Option 520/52E,
3.5 mm Connector, UNM
N5191-20136
W21 Cable Assembly - RF, Semi Rigid, Mech Attn Output to RF Out, Option 520/52E,
Type N Connector, UNM
N5191-20145
W26 Cable Assembly - RF, Semi-Rigid, Mod Filter Output to Coupler Input, Option
520/52E
N5191-20175
