136 Keysight Agile Signal Generator Service Guide
Assembly Replacement
5. Refer to Figure 3-33. Unplug the fan wires from the Infrastructure board.
6. Using the T-10 driver remove the nine screws (1) (0515-0663) that attach
the fan assembly to the chassis. The fan assembly can now be removed
from the chassis.

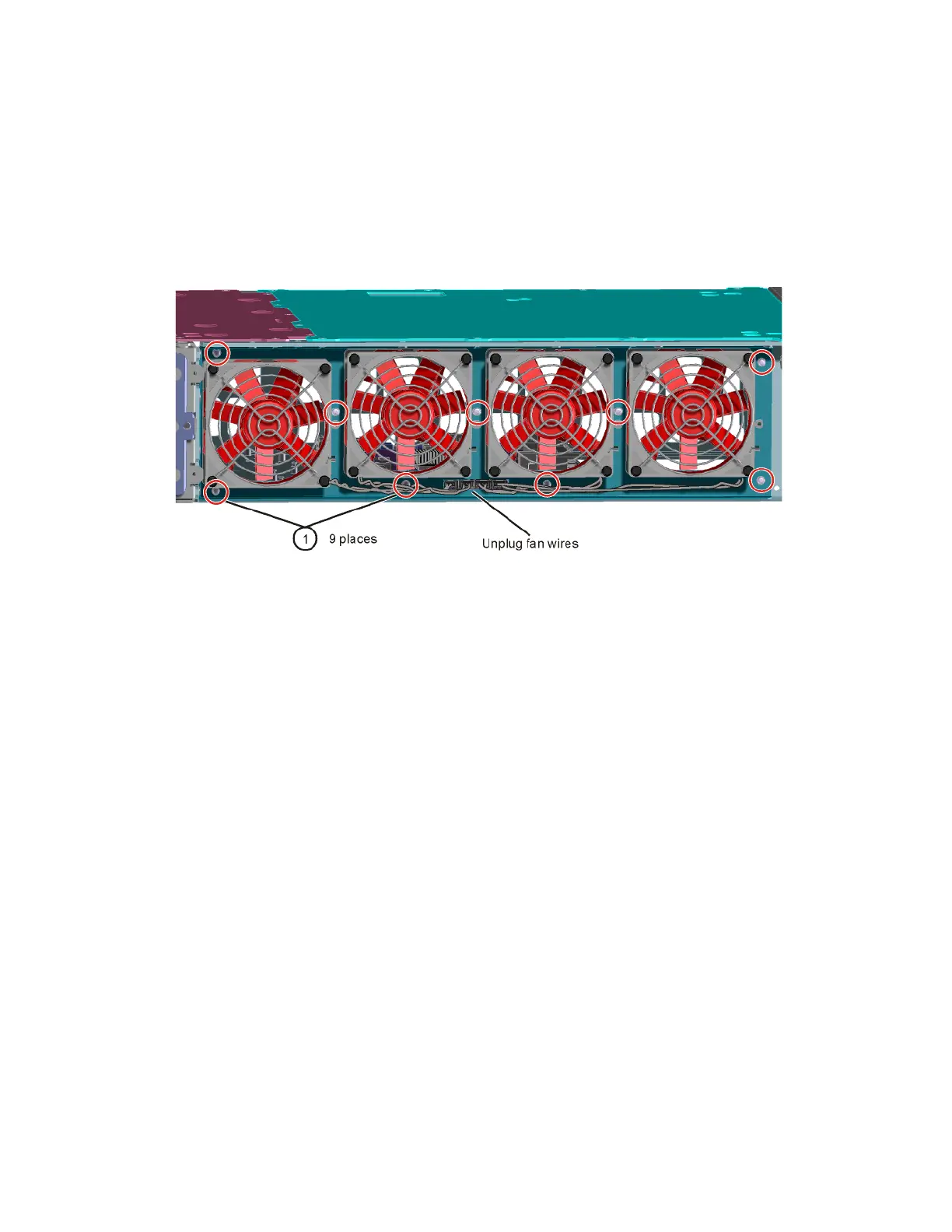

Figure 3-33 Fan Assembly Removal
Replacement Procedure
1. Reverse the order of the removal procedures.
2. Recommended torque for all screws is 9 in–lbs.
