Keysight Agile Signal Generator Service Guide 117
Assembly Replacement
A16 Frequency Multiplier
Tools Required
— T-10 driver
— 5/16 inch open-ended wrench
— socket wrench and 5/16 inch slotted deep socket
Removal Procedure
1. Refer to Figure 3-20. Remove cables W13 and W14. Using the 5/16 inch
slotted socket remove cable W11.

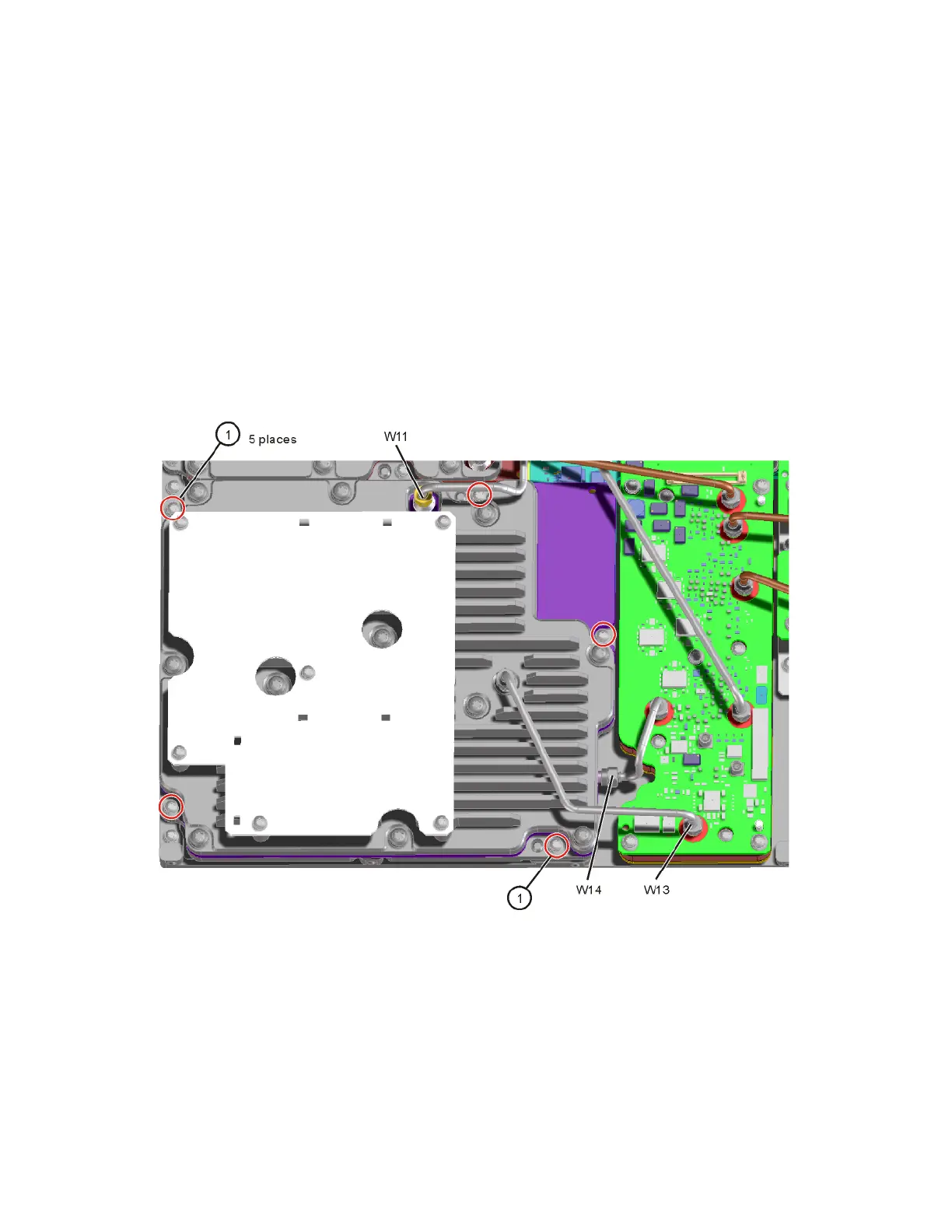

Figure 3-20 A16 Frequency Multiplier Cables and Screws
2. Remove the five screws (1) (0515-0664) that attach the A16 Frequency
Multiplier to the deck. The Frequency Multiplier can now be lifted from the
deck.
