Replaceable Parts
Rear Panel

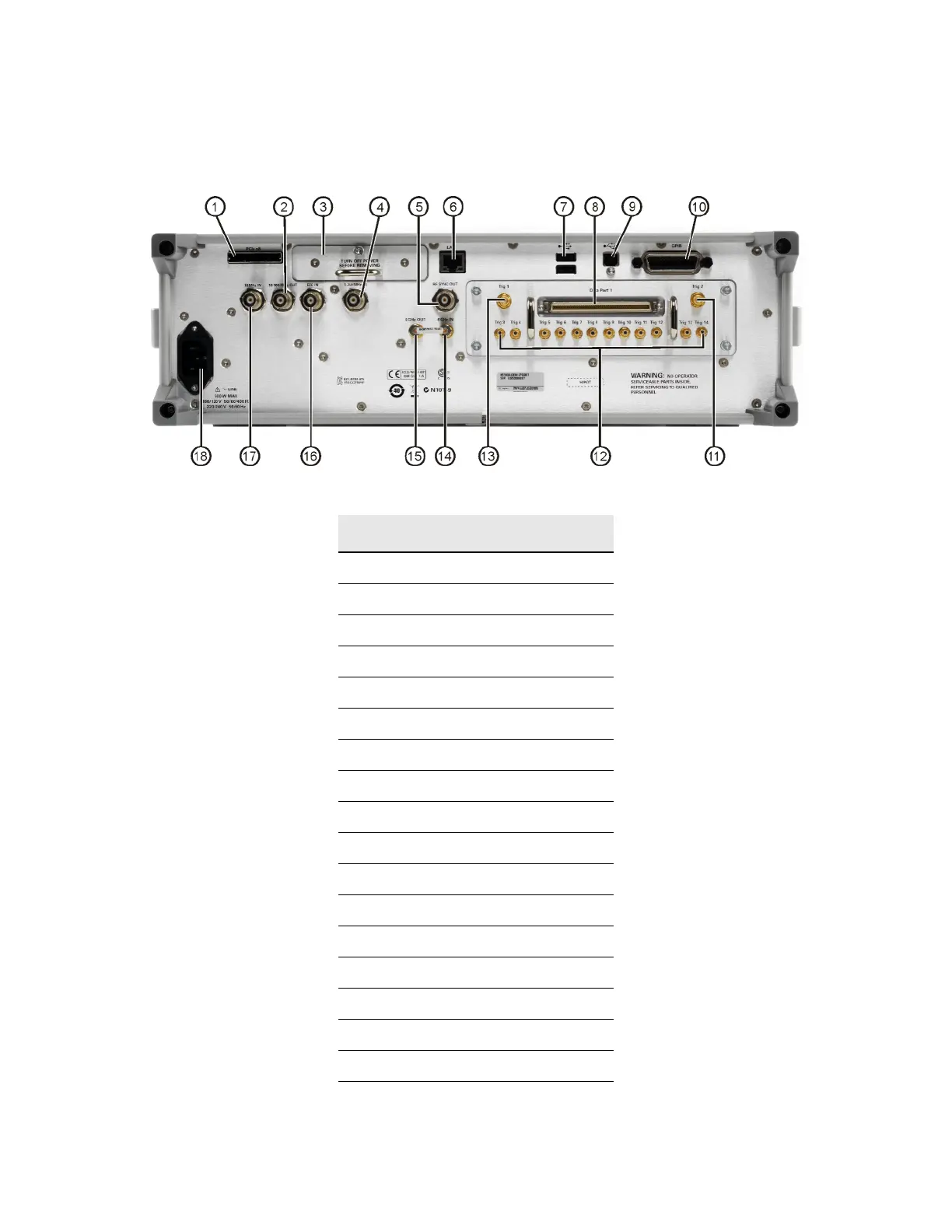

Figure 2-3 Rear Panel View
Item Description
1PCIe x8l
2 10/100 MHz OUT
3SSD
4SYSTEM SYNC IN
5 RF SYNC OUT
6LAN
7Host USB
8 FCP (Option CC1 or CC2)
9 Device USB
10 GPIB
11 Trig 2
12 Trig 3-14
13 Trig 1
14 6 GHz INPUT - W9
15 6 GHz OUTPUT - W9
16 EFC IN
17 10 MHz IN
18 AC Power Receptacle
