Keysight E5071C ENA Series User Manual

30 Keysight E5071C ENA Series RF Network Analyzers
Installation
Initial Registration of E5071C
2-

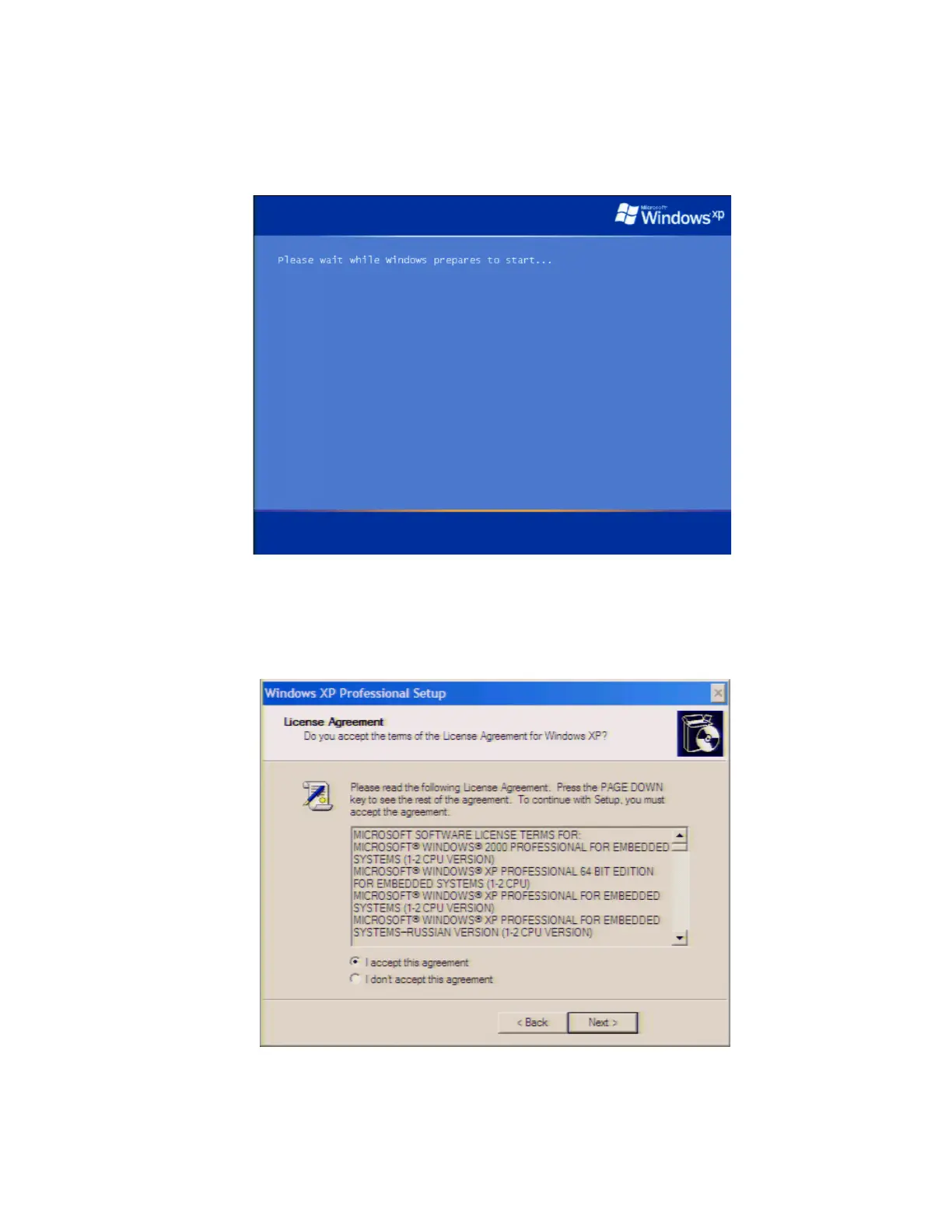

Step 4. The windows start up screen as shown in Figure 2-11 appears.
Figure 2-11 Windows XP Pro for Embedded Systems start up screen
Step 5. In the License agreement dialog box, select the I accept this agreement box
and click the Next > button. Figure 2-12 shows the license agreement dialog
box in Windows XP Pro for Embedded Systems.
Figure 2-12 Windows XP Pro for Embedded Systems license agreement dialog box

Keysight E5071C ENA Series Specifications

General

Number of Ports	2 or 4
Dynamic Range	>123 dB (typical)
Connectivity	LAN, USB, GPIB
Display	10.4-inch LCD
Trace Noise	0.004 dB rms
Impedance	50 Ohm
Weight	20 kg
Dimensions	426 mm × 177 mm × 407 mm
