Keysight TS-5020 - System Block Diagrams with Express Connect Test System Interface; Figure 3-6 TS-5020 Simplified System with Express Connect Block Diagram

3-30 TS-5020 Automotive Electronics Functional Test System Wiring Guide and Hardware Reference
3 System Overview
System Block Diagrams with Express Connect Test System Interface

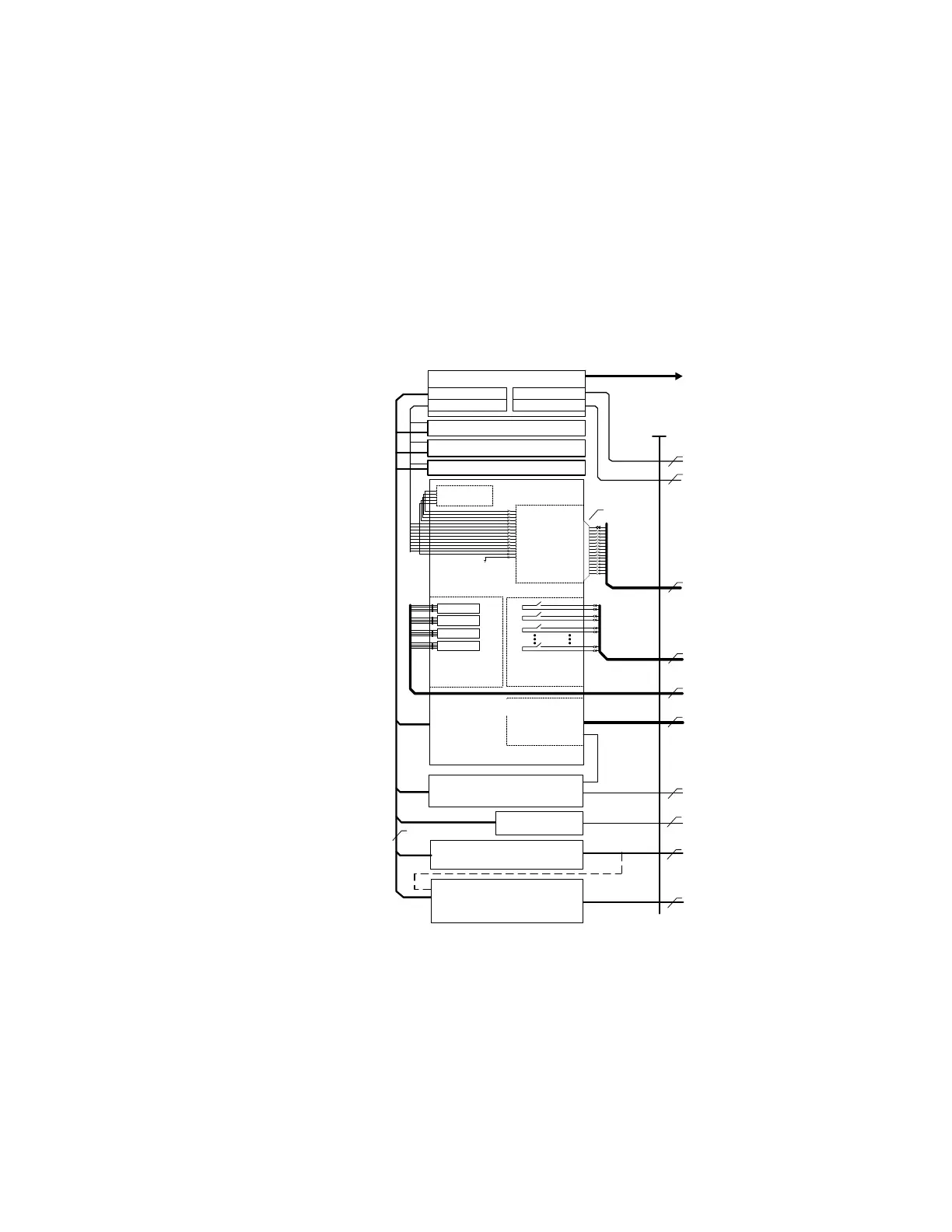

Figure 3-6 TS-5020 Simplified System with Express Connect Block
Diagram
34938A
up to 20 Ch
@ 5 Amps pk
3494xA
RF/uW relay
switches or drivers
34980A Switch/Measure Unit
RF/uWave instruments
Customized as needed
Other serial com
adaptors as needed
Advantech Industrial IPC
Various I/O Methods
Tester interface
(ICA-ITA)
Power Supplies
Agilent 66xx or Agilent 67xx
PC user interface
TC Connector
Pins
DUT Serial I/O
RF/uW
Customized as needed
up to 80 points
load switching
up to 112 points of
measurement switching
34951A 4 Ch DAC
w/ waveform
generation
DAC1
DAC2
DAC3
DAC4
Last Rev 3-15-06
34933A based
matrix
Internal DMM
up to 16x4x112
4 channels of DAC w/
waveform capability
CAN/Serial interfaces
PCI-1750
Utility DI/DO fixture control
Rack mounted / LXI Arb
Rack mounted / LXI
Counter
Termination block to
construct matrix
PCI - GPIB
Rack mount / LXI Digitizer [1]
CAN Adaptor
TS-5020
Light Duty Mechatronic/Telematic Test System Architecture
PCI based inst (opt)
RF swtiching capability
either in rack or fixture
Customized as needed
Customized as needed
add when high current loads required
(30amp continuous/200amp pk)
Optional load unit E6198A
High power load
access
Not shown: AC power distribution E1135C or E3858A
[1]
[1]
[2]
Notes: [1] Instruments are customized as needed by customers.
[2] The power supply is wired to the TC pins unless the
optional load unit, E6198A, is present.
Then the power supply is wired via the E6198A power bus
rather than through the TC pins.
