Express Connect PCA Connector Definition and Pin Access
Users may access the sockets using the appropriate
E3750-61603/04 and E3750-61621cables as needed.

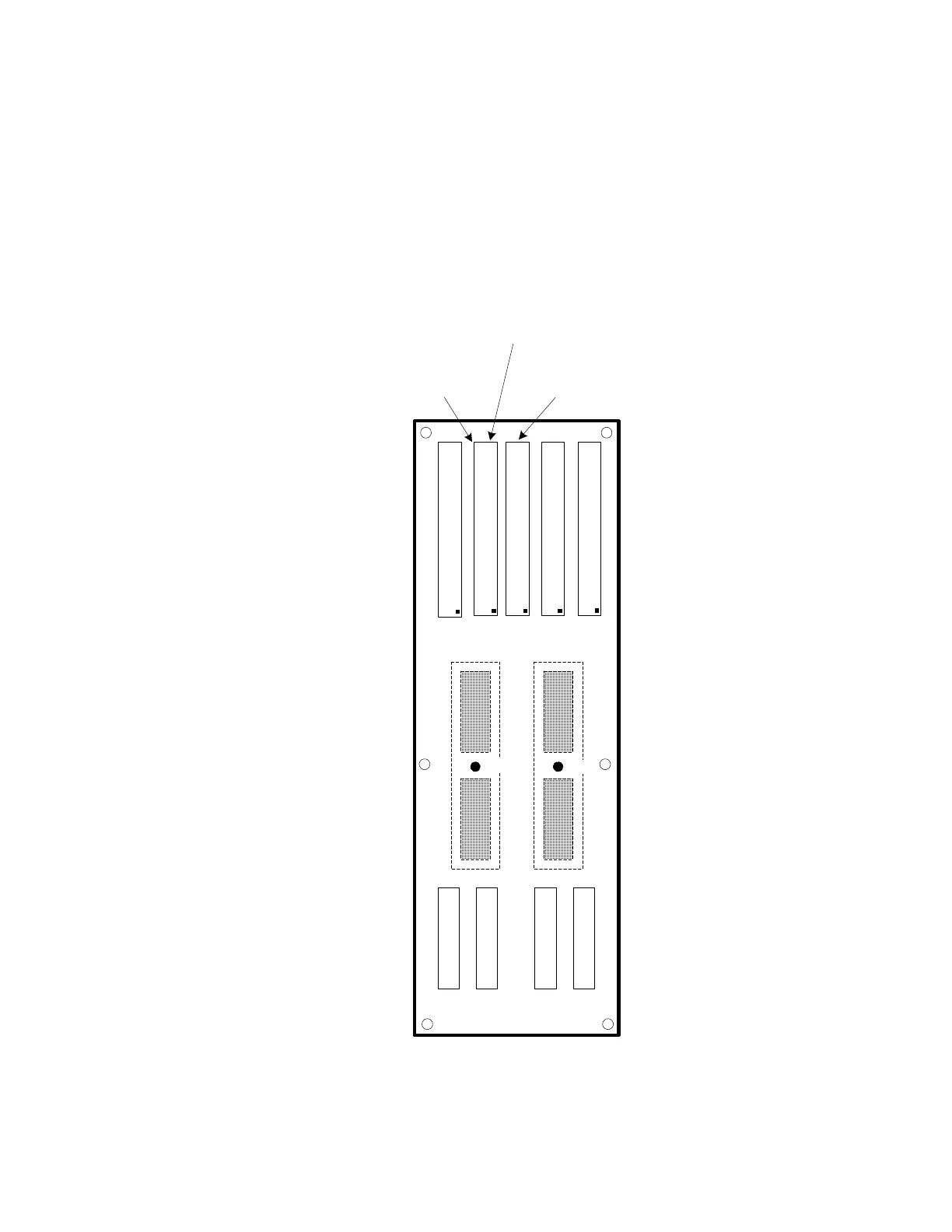

Figure 4-13 PCA Layout For Full Profile Express Connect (For TC1-TC8
Use)
Load Card 1
J10
J3
J4
System Connector
J6
Configuration connector
J7
Resource Connector
J8
PIN Card 1 Connector
J5
PIN Card 2 Connector
J9
Load Card 1 Load Card 2 Load Card 2
J11 J12 J13
"PINCARD2" "PINCARD1"
"LOADBOX"
"CONFIG"
"SYSCONN"
"Meritec style" connector
Row 1 starts on THIS end
AABB
TC1
TC2
System Connector routes to "InstAccess" and
"Trigger" areas of TC1 & TC2 and allows user to
bring resources to TC connectors as needed
Configuration Connector routes to
"UserAaccess" areas of TC1 & TC2 and allows
user to bring resources to TC connectors as
needed
FllP fil E C tPCA
