Keysight TS-5020 - TC1-TC2 Pinouts

System Interconnects 4
TS-5020 Automotive Electronics Functional Test System Wiring Guide and Hardware Reference 4-11
TC1-TC2 Pinouts
Figure 4-9 shows the pinouts for TC1 and Figure 4-10 the
pinouts for TC2.
Figure 4-11 and Figure 4-12 show the general pinout mapping
for TCn and TCn+1.
Note that TC1 pins A1 to J6 are reserved for the 20-channel, 5A
switch module in the 34980 A Multifunction Switch / Measure
unit. Refer to
Figure 3-8 for more details.

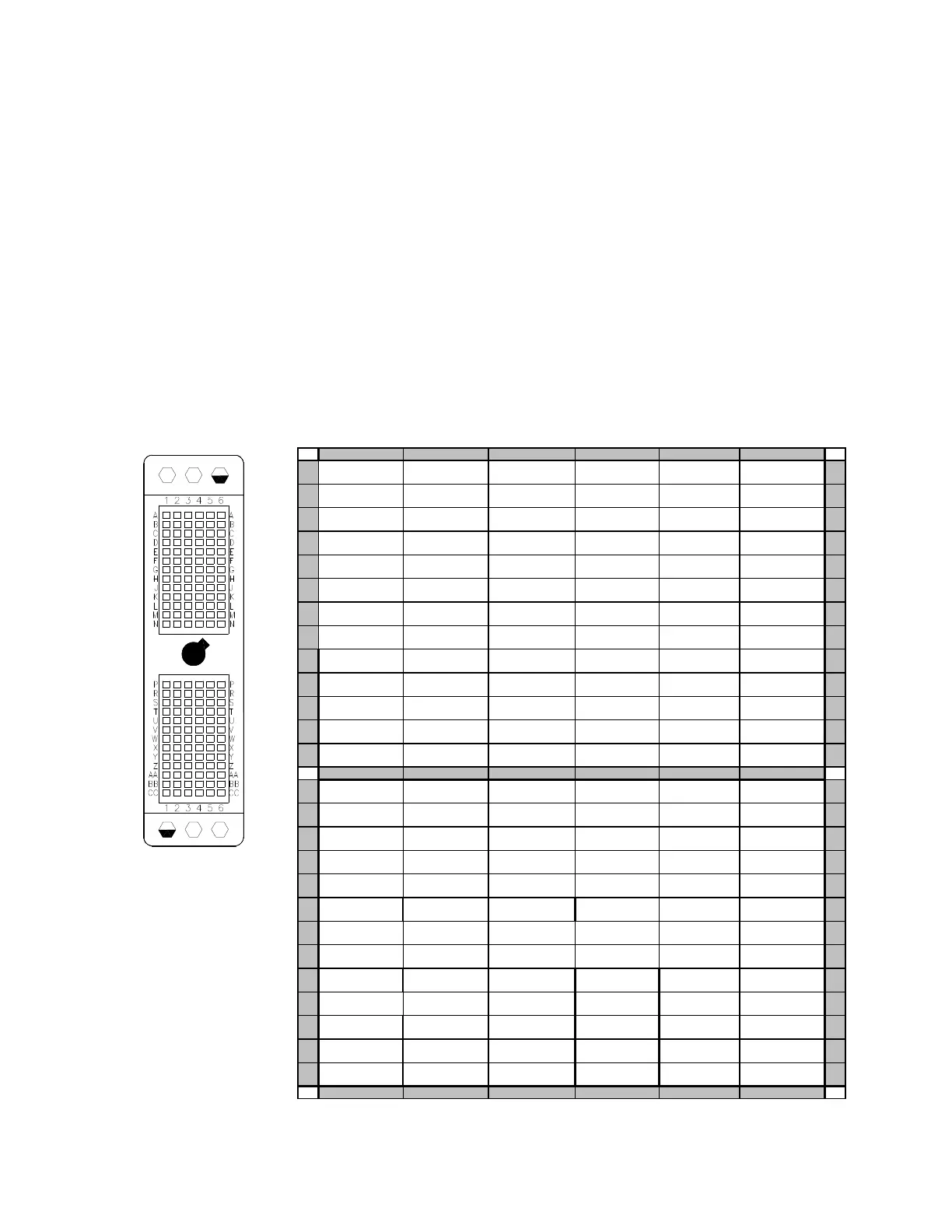

Figure 4-9 TC1 Pinouts
TC1
123456
A
Ch1 Ch2 Ch3 Ch1 COM Ch2 COM Ch3 COM
A
B
Ch4 Ch5 Ch6 Ch4 COM Ch5 COM Ch6 COM
B
C
Ch7 Ch8 Ch9 Ch7 COM Ch8 COM Ch9 COM
C
D
Ch10 Ch11 Ch12 Ch10 COM Ch11 COM Ch12 COM
D
E
Ch13 Ch14 Ch15 Ch13 COM Ch14 COM Ch15 COM
E
F
Ch16 Ch17 Ch18 Ch16 COM Ch17 COM Ch18 COM
F
G
Ch19 Ch20 PS S- Ch19 COM Ch20 COM PS S+
G
H
PS- PS - PS - PS+ PS+ PS+
H
J
Safety Ground Safety Ground Safety Ground Safety Ground Safety Ground Safety Ground
J
K
DIO0 DIO1 System Ground not used DMM Trig + System Ground
K
L
DIO2 DIO3 COM2 Gnd not used not used not used
L
M
DIO4 DIO5 COM2 Rx not used DAC Clk not used
M
N
DIO6 DIO7 COM2 Tx not used DAC Trig not used
N
P
UserAccess#1
UserAccess#2 UserAccess#3 UserAccess#4 Aux Inst #1 Aux Inst #2
P
R
UserAccess#5 UserAccess#6 UserAccess#7 UserAccess#8 System Ground System Ground
R
S
UserAccessCom UserAccessCom UserAccessCom UserAccessCom
Serial1(-)
Serial1(+)
S
T
UserAccess#9 UserAccess#10 UserAccess#11 UserAccess#12
Serial2(-)
Serial2(+)
T
U
UserAccess#13 UserAccess#14 UserAccess#15 UserAccess#16
DAC#1 Hi
DAC#1 Lo
U
V
UUT Common 1 UUT Common 1 UUT Common 1 UUT Common 1 PMatrix* 1 Row 1 Pmatrix* 1 Row 2
V
W
PMatrix* 1 Row 3 PMatrix* 1 Row 4 PMatrix* 1 Row 5 PMatrix* 1 Row 6 PMatrix* 1 Row 7 PMatrix* 1 Row 8
W
X
PMatrix* 1 Row 9 PMatrix* 1 Row 10 PMatrix* 1 Row 11 PMatrix* 1 Row 12 PMatrix* 1 Row 13 PMatrix* 1 Row 14
X
Y
UUT Common 1 UUT Common 1 UUT Common 1 UUT Common 1 UUT Common 1 UUT Common 1
Y
Z
PMatrix* 1 Row 15 PMatrix* 1 Row 16 not used* Not used Not used Not used
Z
AA
Not used Not used Not used Not used Not used Not used
AA
BB
UUT Common 1 UUT Common 1 UUT Common 1 UUT Common 1 UUT Common 1 UUT Common 1
BB
CC
Not used Not used Not used Not used Not used Not used
CC
123456
TC1
