System Overview 3
TS-5020 Automotive Electronics Functional Test System Wiring Guide and Hardware Reference 3-35

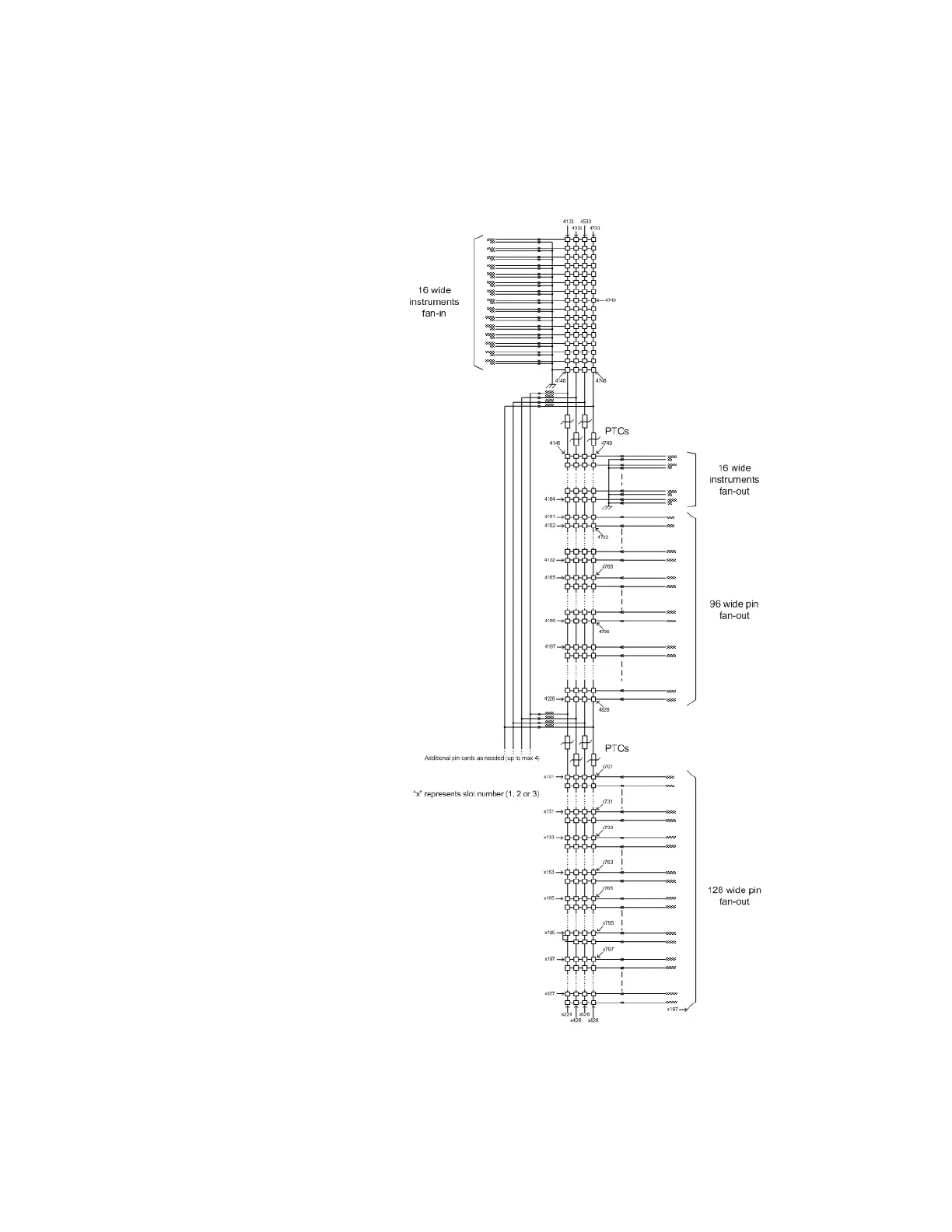

Figure 3-11 Multiple 34934A configured as Instrumentation and Pin
Matrix
Note that up to four matrix card can be configured to give a
maximum measurement points. Four 34933A provides
maximum 112 measurement points, where four 34934A is
capable of maximum 480 measurement points.
