5-6 TS-5020 Automotive Electronics Functional Test System Wiring Guide and Hardware Reference

5 Test System Interface Cables

E6170-61627 DMM Trig 34980 To ICA

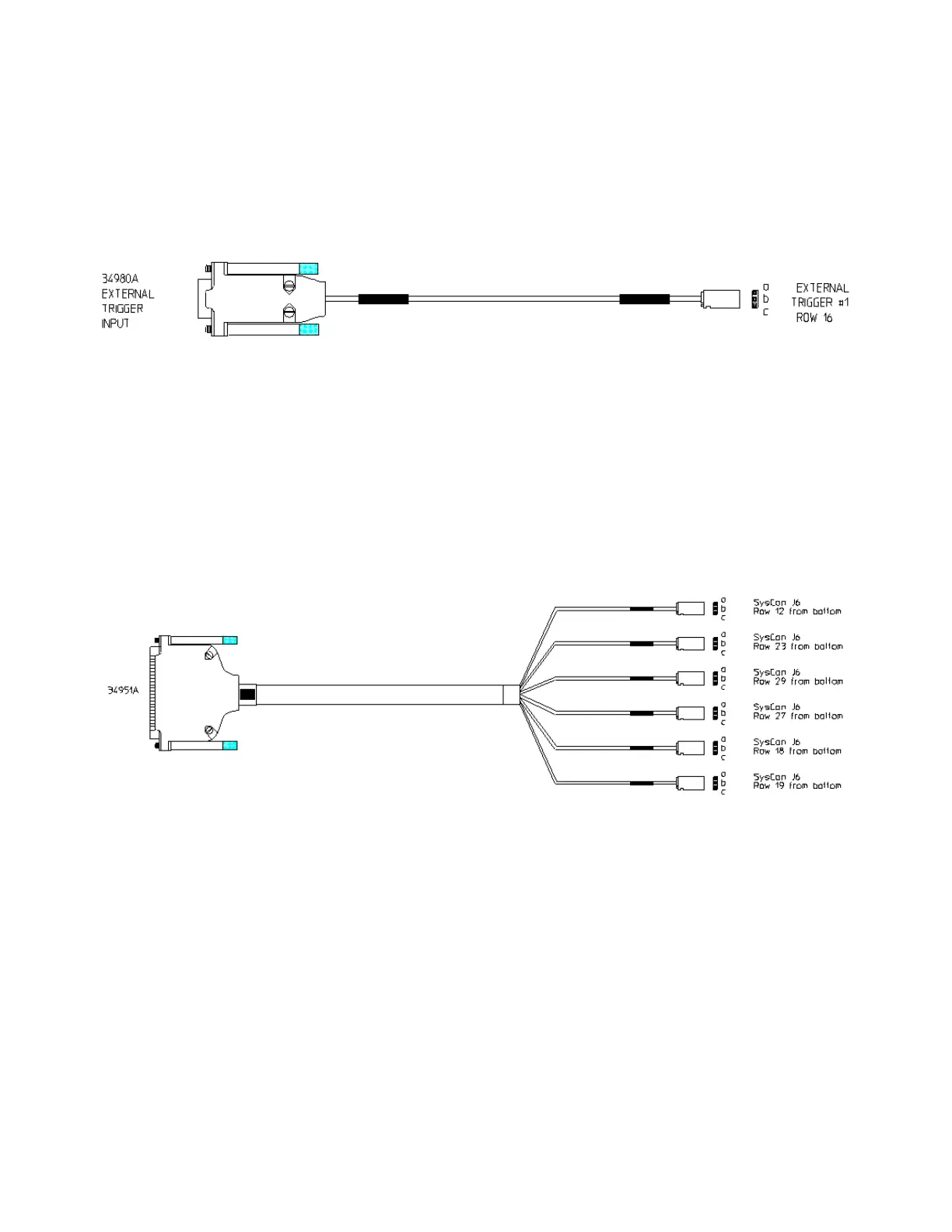

Figure 5-6 E6170-61627 DMM Trig 34980 To ICA

E6170-61628 DAC 34951 To ICA Cable

Figure 5-7 E6170-61628 DAC 34951 To ICA Cable
