Keysight TS-5020 - TCn+1 Pin Assignments

4-14 TS-5020 Automotive Electronics Functional Test System Wiring Guide and Hardware Reference
4 System Interconnects

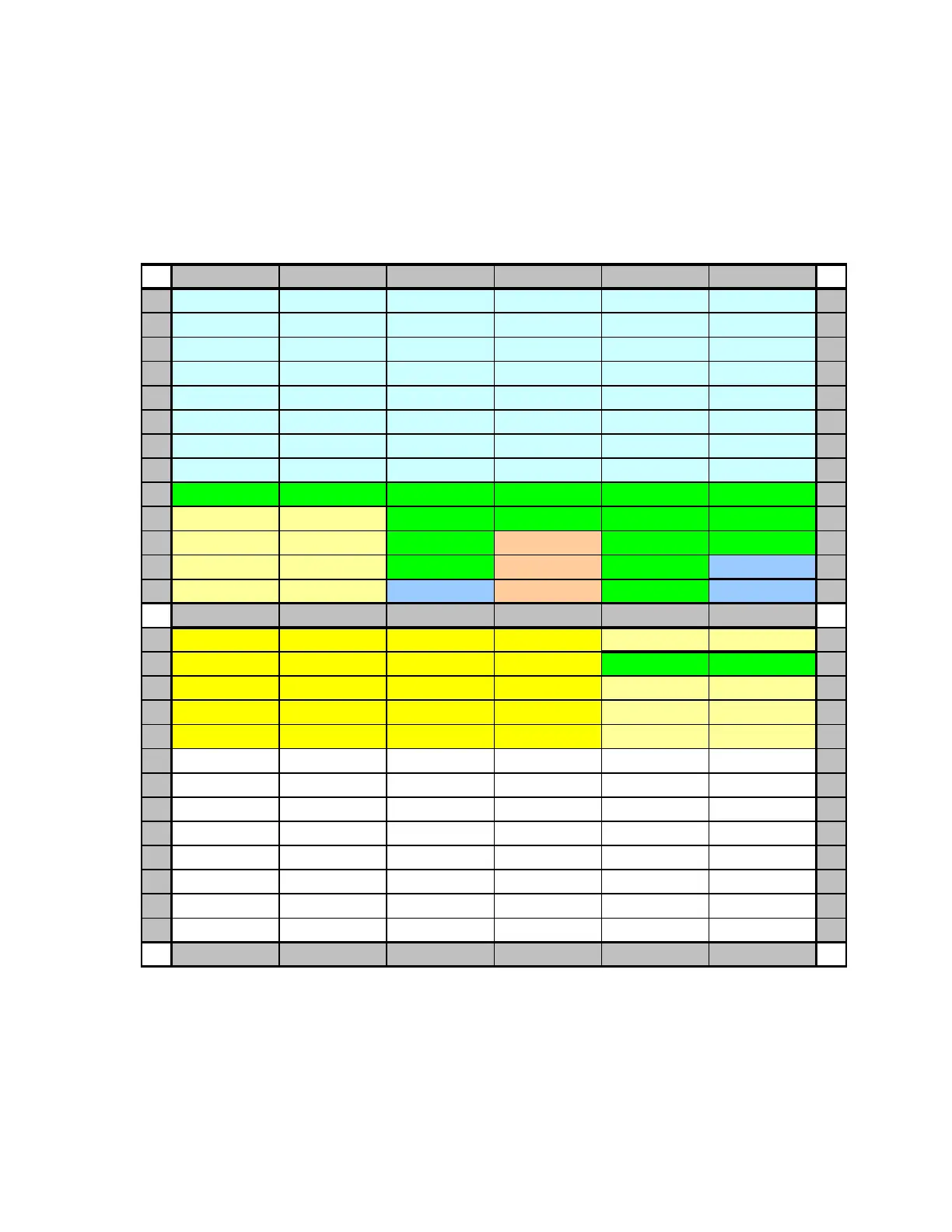

Figure 4-12 TC
n+1
Pin Assignments
Note:
[3] In TC4, spare InstAccess is used for E6198A Switch Load
Unit (SLU) DAC if it is present.
TC
n+1
(n = 3, 5, 7)
123456
A
loadcard n+1.01 loadcard n+1.02 loadcard n+1.03 loadcard n+1.04 loadcard n+1.05 loadcard n+1.06
A
B
loadcard n+1.07 loadcard n+1.08 loadcard n+1.09 loadcard n+1.10 loadcard n+1.11 loadcard n+1.12
B
C
loadcard n+1.13 loadcard n+1.14 loadcard n+1.15 loadcard n+1.16 loadcard n+1.17 loadcard n+1.18
C
D
loadcard n+1.19 loadcard n+1.20 loadcard n+1.21 loadcard n+1.22 loadcard n+1.23 loadcard n+1.24
D
E
loadcard n+1.25 loadcard n+1.26 loadcard n+1.27 loadcard n+1.28 loadcard n+1.29 loadcard n+1.30
E
F
loadcard n+1.31 loadcard n+1.32 loadcard n+1.33 loadcard n+1.34 loadcard n+1.35 loadcard n+1.36
F
G
loadcard n+1.37 loadcard n+1.38 loadcard n+1.39 loadcard n+1.40 loadcard n+1.41 loadcard n+1.42
G
H
loadcard n+1.43 loadcard n+1.44 loadcard n+1.45 loadcard n+1.46 loadcard n+1.47 loadcard n+1.48
H
J
Safety Ground Safety Ground Safety Ground Safety Ground Safety Ground Safety Ground
J
K
Digital I/O Digital I/O System Ground Safety Ground Safety Ground System Ground
K
L
Digital I/O Digital I/O Safety Ground Utility supply Safety Ground System Ground
L
M
Digital I/O Digital I/O Safety Ground Utility supply Safety Ground Not used
M
N
Digital I/O Digital I/O Not used Utility supply Safety Ground Not used
N
P
UserAccess 17 UserAccess 18 UserAccess 19 UserAccess 20 Aux Inst #3 Aux Inst #4
P
R
UserAccess 21 UserAccess 22 UserAccess 23 UserAccess 24 System Ground System Ground
R
S
UserAccess Com1 UserAccess Com1 UserAccess Com2 UserAccess Com2 InstAccess#5 [3] InstAccess#6 [3]
S
T
UserAccess 25 UserAccess 26 UserAccess 27 UserAccess 28 InstAccess#7 [3] InstAccess#8 [3]
T
U
UserAccess 29 UserAccess 30 UserAccess 31 UserAccess 32 InstAccess#9 [3] InstAccess#10 [3]
U
V UUT Common n+1 UUT Common n+1 UUT Common n+1 UUT Common n+1 PMatrix n+1 Row 1 PMatrix n+1 Row 2 V
W
PMatrix n+1 Row 3 PMatrix n+1 Row 4 PMatrix n+1 Row 5 PMatrix n+1 Row 6 PMatrix n+1 Row 7 PMatrix n+1 Row 8
W
X PMatrix n+1 Row 9 PMatrix n+1 Row 10 PMatrix n+1 Row 11 PMatrix n+1 Row 12 PMatrix n+1 Row 13 PMatrix n+1 Row 14 X
Y
UUT Common n+1 UUT Common n+1 UUT Common n+1 UUT Common n+1 UUT Common n+1 UUT Common n+1
Y
Z PMatrix n+1 Row 15 PMatrix n+1 Row 16 PMatrix n+1 Row 17 PMatrix n+1 Row 18 PMatrix n+1 Row 19 PMatrix n+1 Row 20 Z
AA PMatrix n+1 Row 21 PMatrix n+1 Row 22 PMatrix n+1 Row 23 PMatrix n+1 Row 24 PMatrix n+1 Row 25 PMatrix n+1 Row 26 AA
BB
UUT Common n+1 UUT Common n+1 UUT Common n+1 UUT Common n+1 UUT Common n+1 UUT Common n+1
BB
CC PMatrix n+1 Row 27 PMatrix n+1 Row 28 PMatrix n+1 Row 29 PMatrix n+1 Row 30 PMatrix n+1 Row 31 PMatrix n+1 Row 32 CC
123456
