Using the Oscilloscope 3
Keysight U1610/20A User’s Guide 77

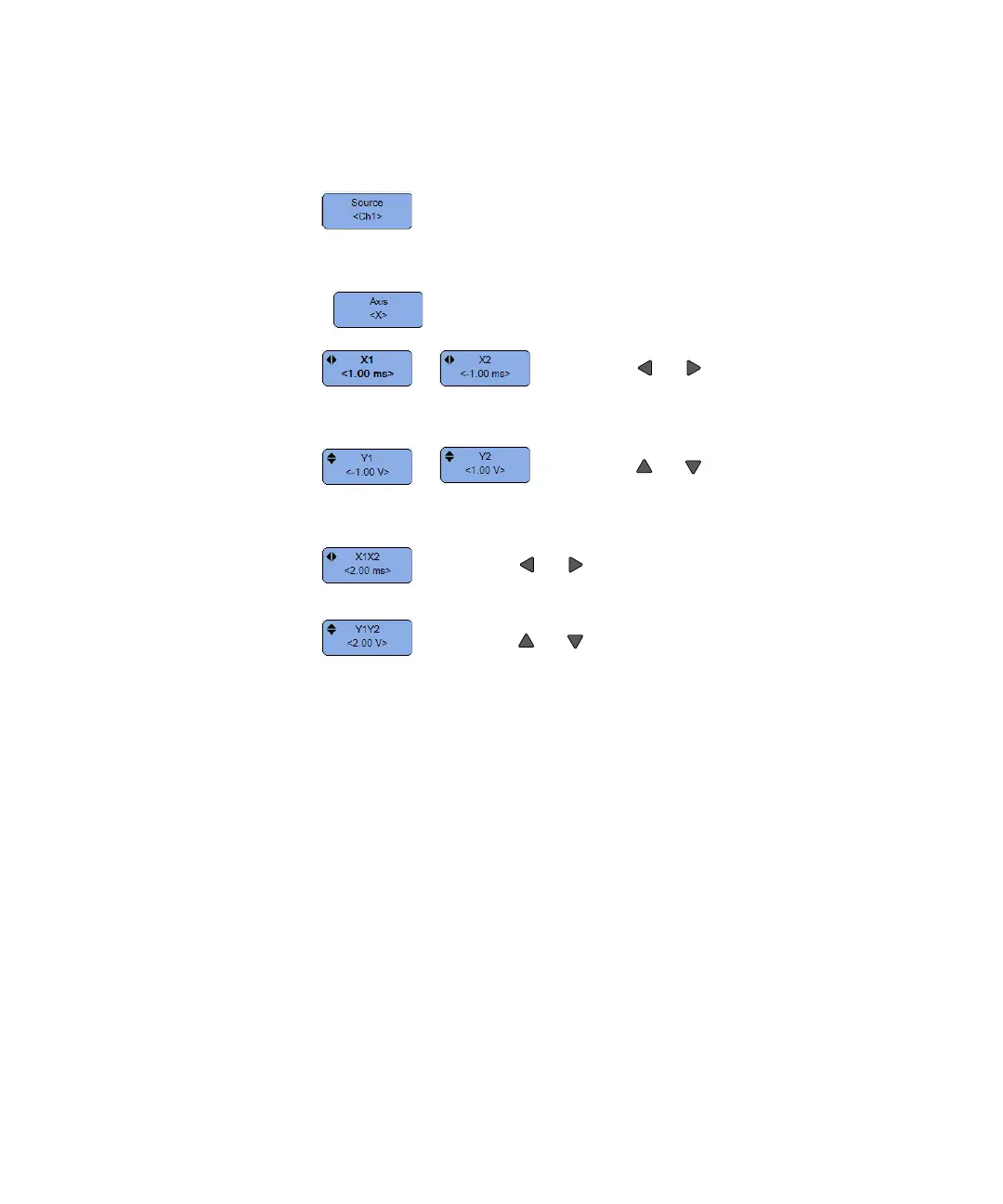

To set up the cursor measurement:
1 Press repeatedly to select a channel or analyzer source or to turn
off the cursors. The analyzer source is applicable only when Analyzer Controls
are enabled.
2 Toggle to select the X or Y cursor.
3 Press or and use the or key to adjust the X1 or
X2 cursor respectively. The X1 cursor is displayed as a short-dashed vertical
line while the X2 cursor is displayed as a long-dashed vertical line.
Press or and use the or key to adjust the Y1 or
Y2 cursor respectively. The Y1 cursor is displayed as a short-dashed horizontal
line while the Y2 cursor is displayed as a long-dashed horizontal line.
4 Press and use the or key to adjust the X1 and X2 cursors
together.
Press and use the or keys to adjust the Y1 and Y2 cursors
together.
