Using the Oscilloscope 3
Keysight U1610/20A User’s Guide 61

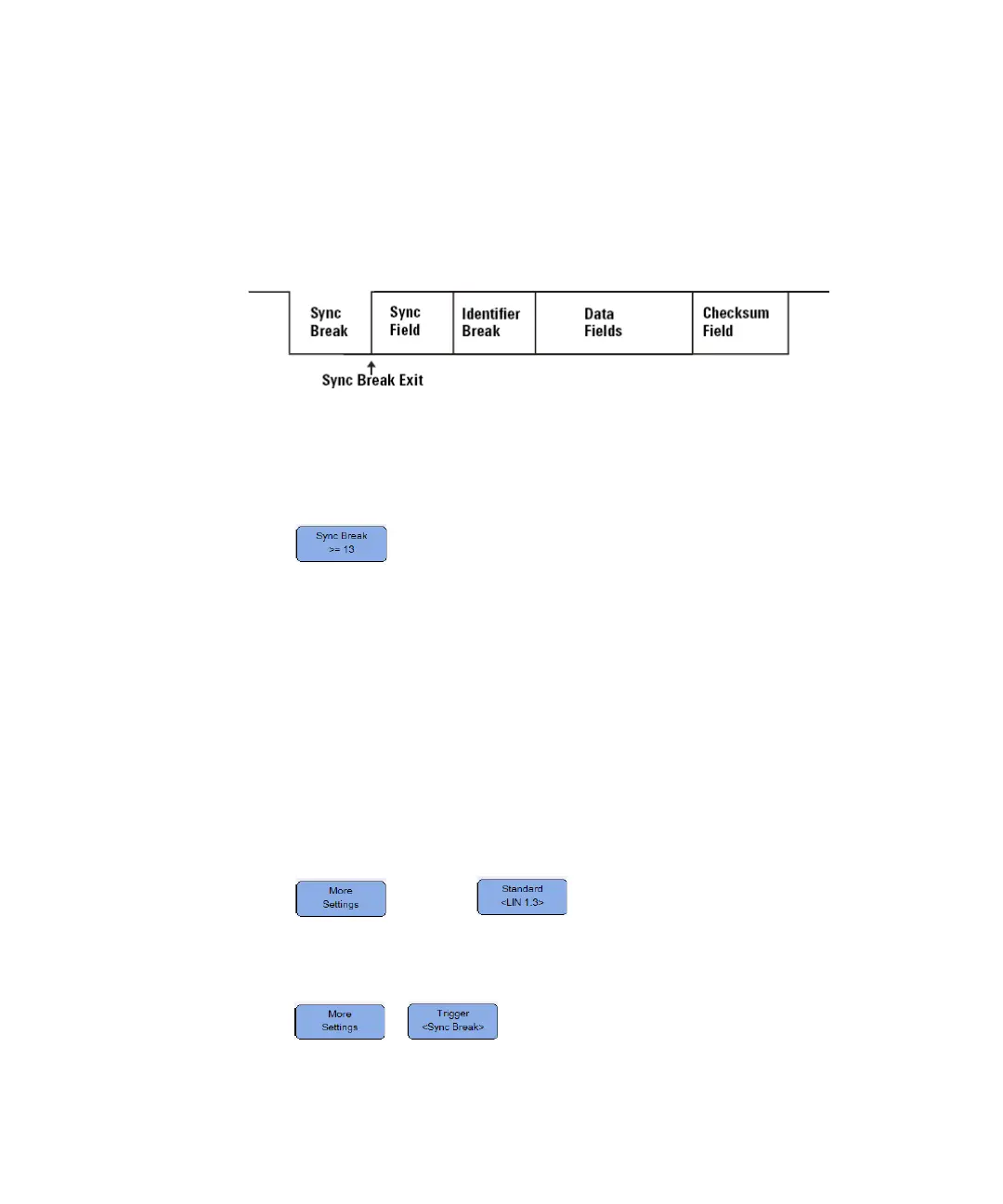

LIN trigger
Local Interconnect Network (LIN) triggering will trigger on the rising edge at the
Sync Break exit of the LIN single-wire bus signal that marks the beginning of the
message frame.
Source
See “Source” on page 55.
Sync break
Press repeatedly to select the minimum number of clocks that define
a sync break in the LIN signal.
Level
See “Level” on page 55.
Baud rate
See “Baud rate” on page 60.
Sample point
See “Sample point” on page 60.
Standard
Press and press repeatedly to select the LIN standard of
1.3, 2.0, or 2.1.
Trigger
Press > to trigger on the rising edge at the Sync Break exit
of the LIN single-wire bus signal that marks the beginning of the message frame.
