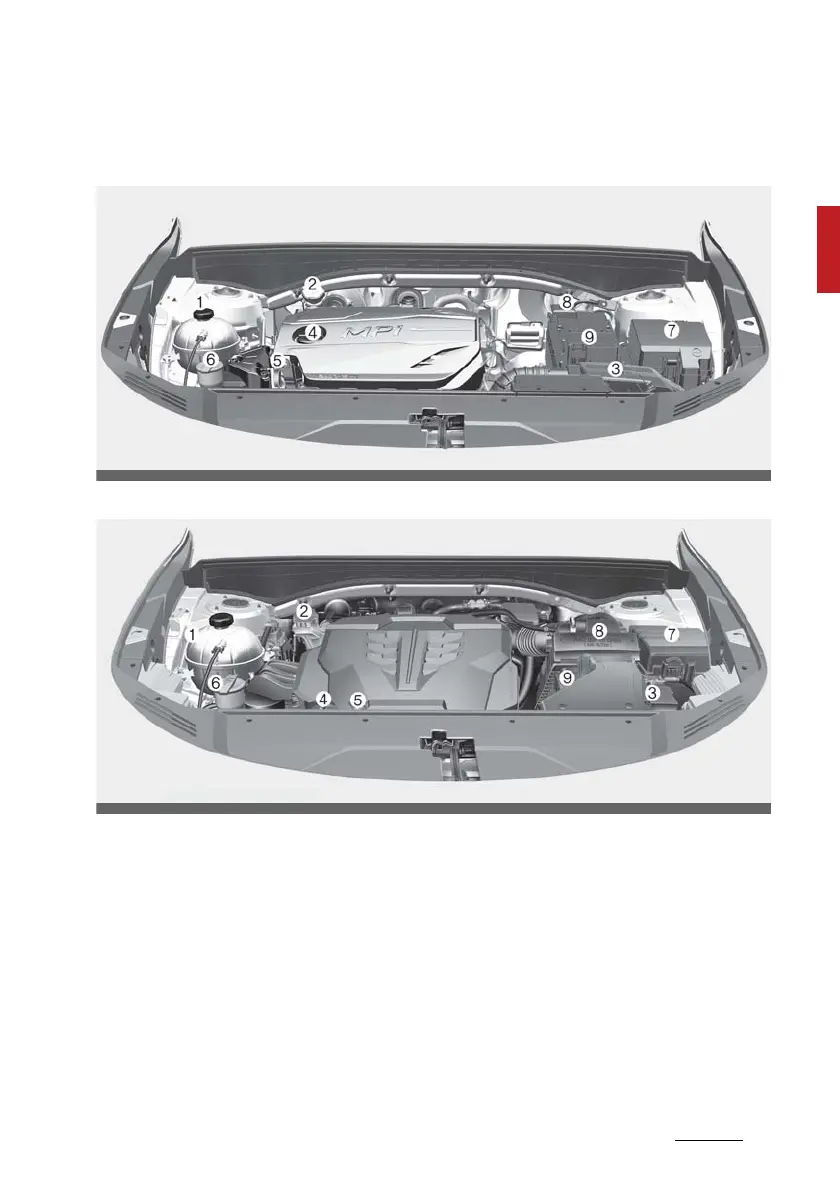

Your vehicle at a glance Engine compartment
Engine compartment
Smartstream G2.5 (Petrol)
Smartstream G3.5 (Petrol)
* The actual engine room in the vehicle may differ from the illustration.
1. Engine coolant reservoir 7-44
2. Brake fluid reservoir 7-47
3. Air cleaner 7-50
4. Engine oil filler cap 7-39
5. Engine oil dipstick 7-39
6. Windscreen washer fluid reservoir 7-48
7. Fuse box 7-71
8. Negative battery terminal 6-6, 7-56
9. Positive battery terminal 6-6, 7-56
