Maintenance
1027
Light bulbs

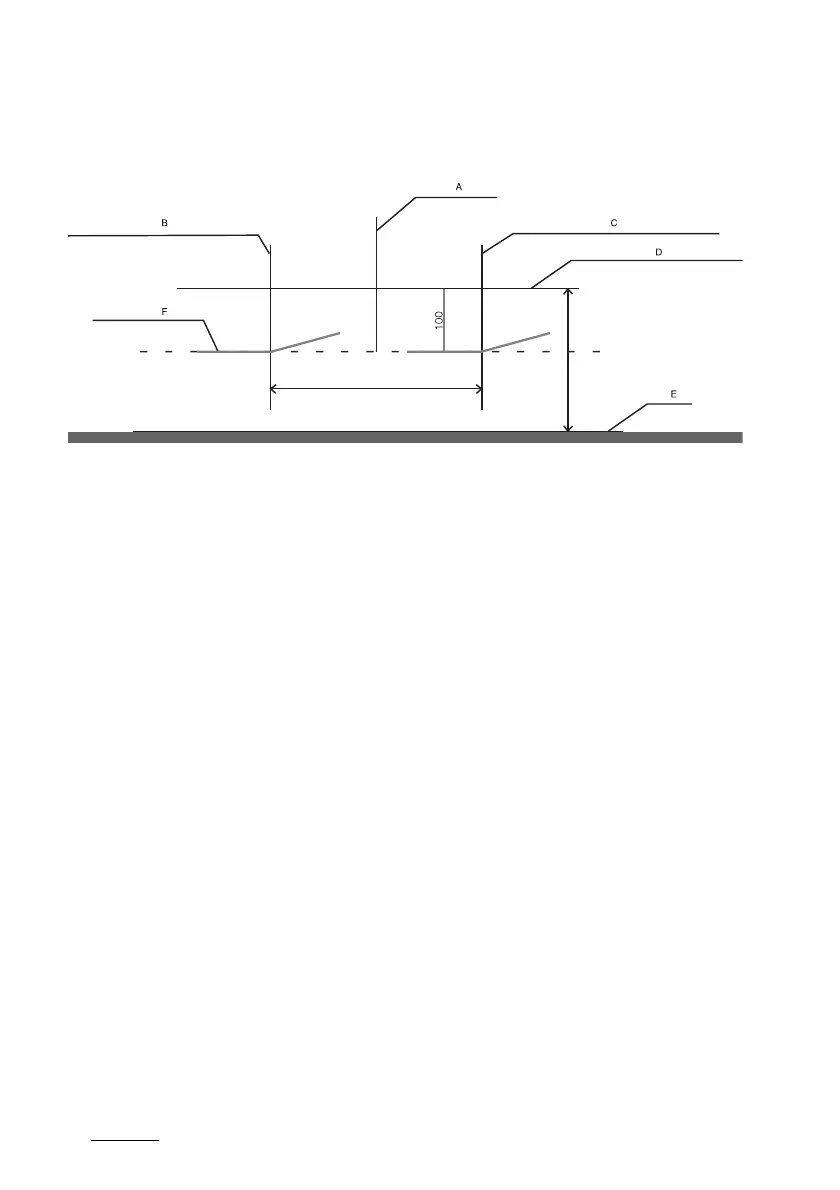

Head lamp low beam (LHD Vehicle)
Based on 10m screen
A: Vehicle axis
B: Vertical line of the left head lamp bulb centre
C: Vertical line of the right head lamp bulb centre
D: Horizontal line of head lamp bulb centre
E: Ground
F: Cut-Off line
1. Turn the low beam on without driver aboard.
2. The cut-off line should be projected in the cut-off line shown in the pic
-
ture.
3. When aiming the low beam, vertical aiming should be adjusted after
adjusting the horizontal aiming.
4. If head lamp levelling device is equipped, adjust the head lamp levelling
device switch with 0 positions.
