PLZ-4W General Information 1-7
Support for large capacity
To achieve large capacity at low cost, the PLZ1004W comes with a load booster
(PLZ2004WB).
Using a single PLZ1004W as a master unit, up to four load boosters can be con-
nected in parallel (9 kW, 1800 A maximum).
In parallel operation without using load boosters, up to five electonic loads of the
same type including the master unit can be connected in parallel (5 kW, 1000 A
maximum).

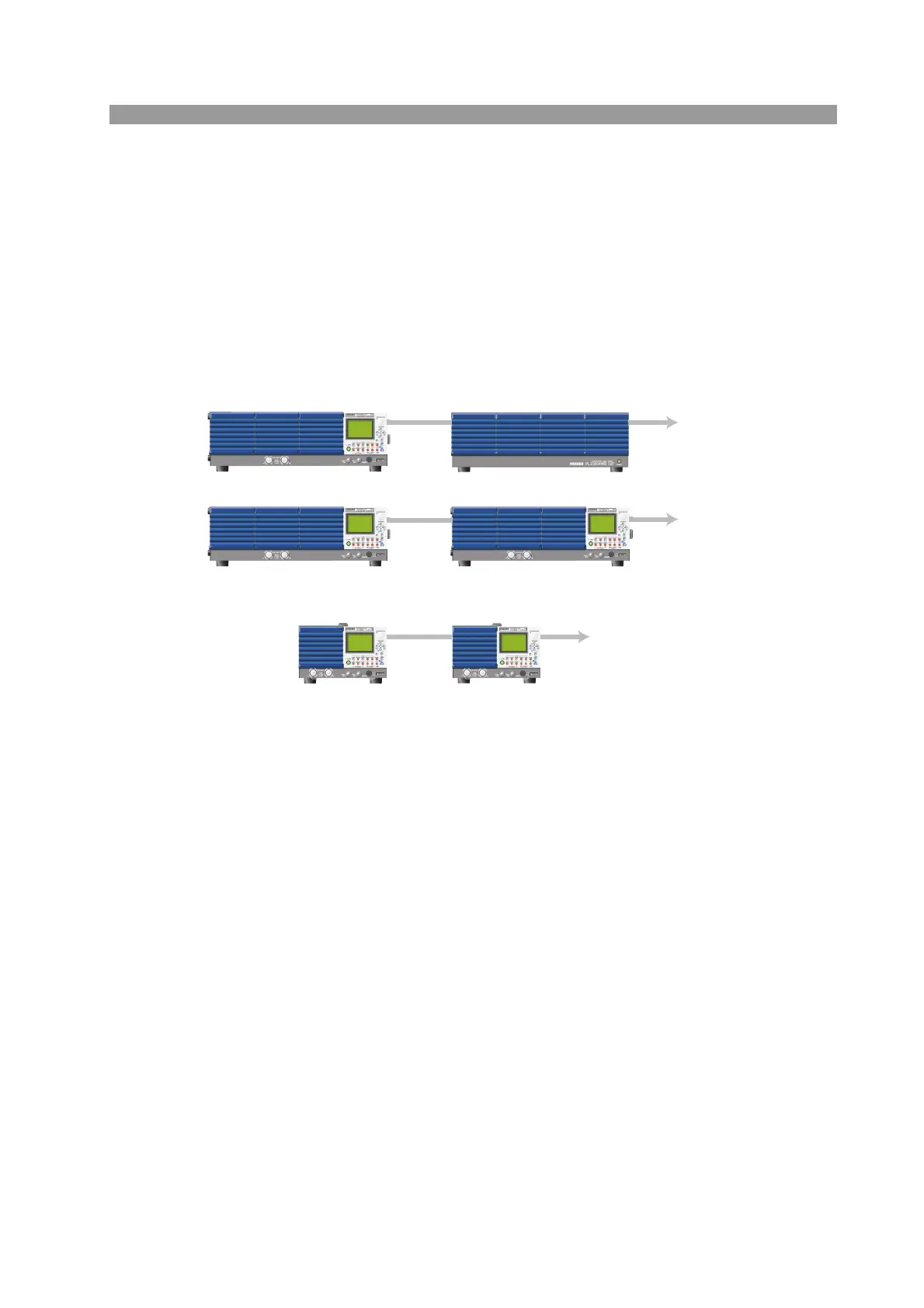

Fig. 1-3 Parallel connection
Master (PLZ1004W)
Master (PLZ1004W)
Master Slave
Load booster (PLZ2004WB)
Slave (PLZ1004W)
Up to four PLZ2004WBs
can be connected
Up to five PLZ-4Ws of the same type as
the master device can be connected
PLZ-4W other than PLZ1004W
PLZ1004W
Up to five PLZ1004Ws
can be connected
