6-2 Applied Operation PLZ-4W
6.1 ABC preset memories
Three separate sets of settings for each range of each operation mode can be saved
to memories A, B, and C. Settings are saved or recalled after determining the opera-
tion mode and range. Settings (A, B, and C) saved in the current operation mode at
the current range can be recalled.

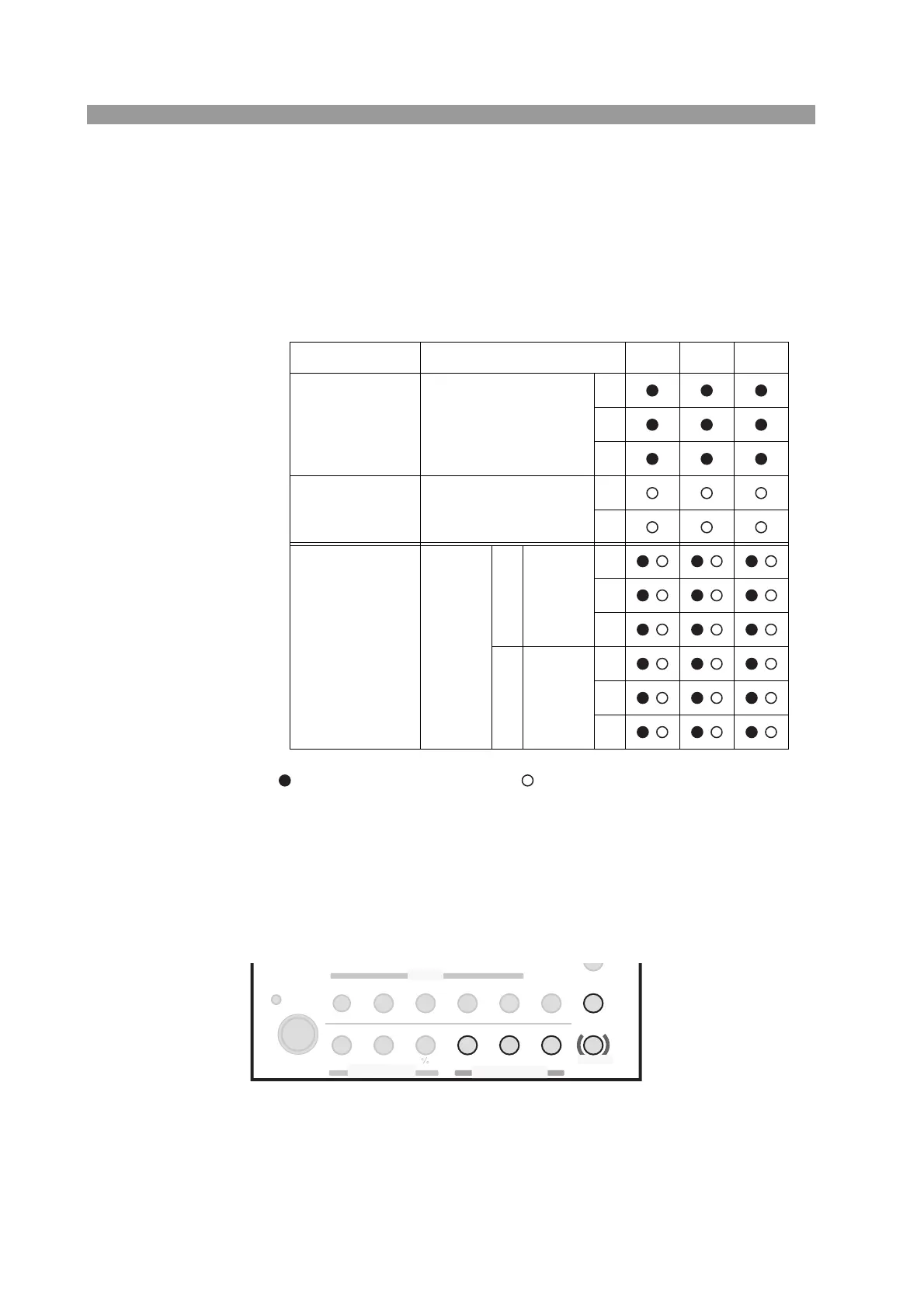

Table6-1 Memory Overview
current, resistance, and wattage voltage
In CC+CV and CR+CV modes, the settings are saved to the memories of CC,
CR, and CV modes.
In CC, CR, and CP modes, the settings according to the current range are saved to
the memories A, B, and C. In CV mode, the settings according to the voltage range
are saved. In CC+CV and CR+CV modes, the voltage and current values are saved.
ABC preset memories can be recalled even when the load is turned on.
