6-6 Applied Operation PLZ-4W
6.2 Setup Memory
The setup memory can store up to 100 sets (0 to 99) of the current conditions of the
items shown below. You can attach a memo using up to 15 characters to each mem-
ory set. The stored settings can be recalled as necessary.
■ Settings that are saved
• Operation mode (CC, CR, CV, or CP, and enabled/disabled condition of
+CV)
• Basic settings (current, resistance, voltage, and power)
• Range setting (RANGE/VRANGE)
• Slew rate value (SLEW RATE)
• Switching frequency and duty cycle (FREQ/DUTY)
• Switching time (Th/TL)
• Switching level and ratio (LEVEL/%)
• Protection setting (OCP/OPP/UVP)
• Contents of ABC preset memories (A/B/C)

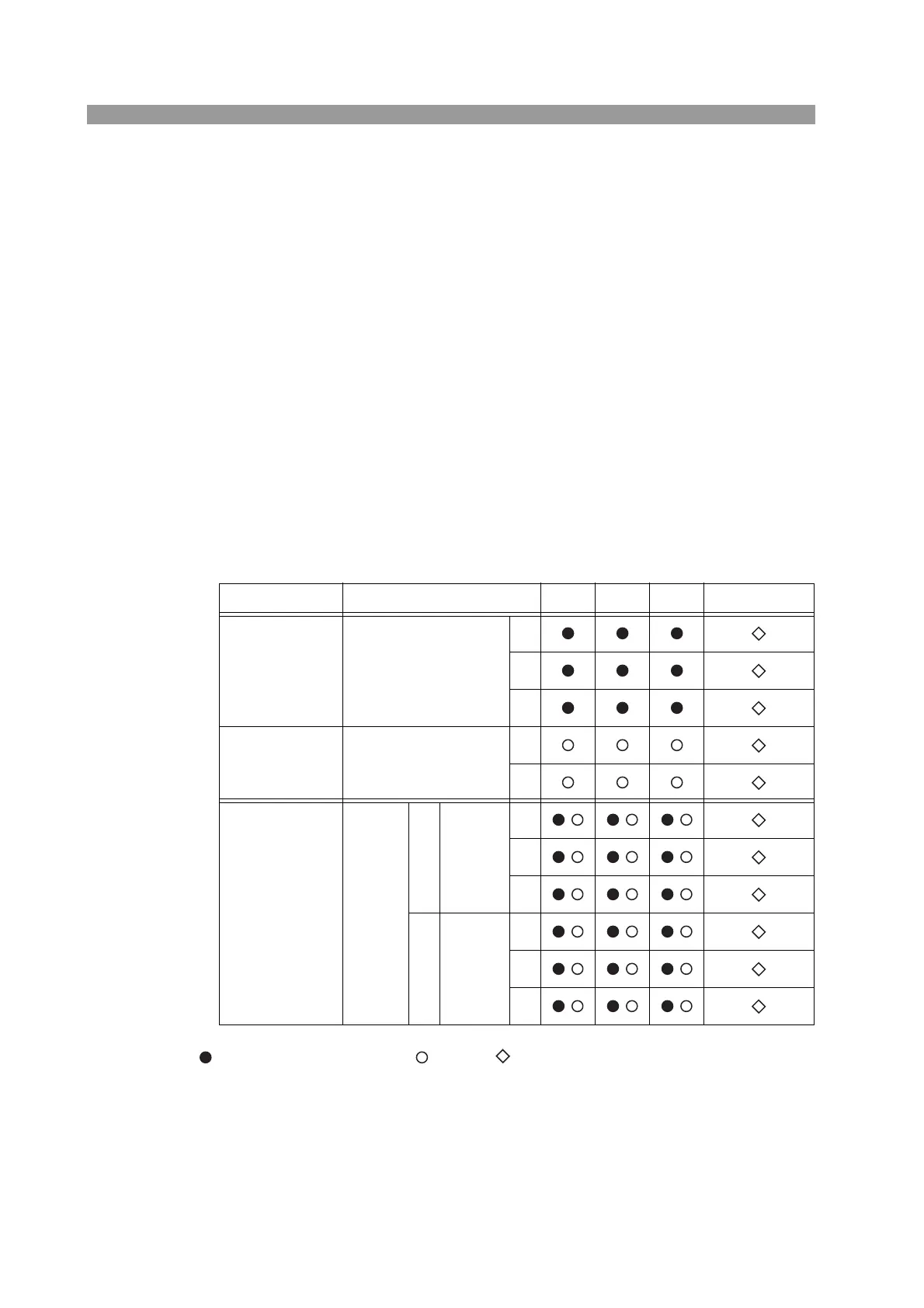

Table 6-2 Contents saved to a single memory set
current, resistance, wattage voltage other values (slew rate, switching, and pro-
tection)
Operation mode Range A B C Other settings
CC
CR
CP
Current
H
M
L
CV Voltage
H
L
CC+CV
CR+CV Voltage
H Current
H
M
L
L Current
H
M
L
To Next Page
