PLZ-4W Applied Operation 6-61

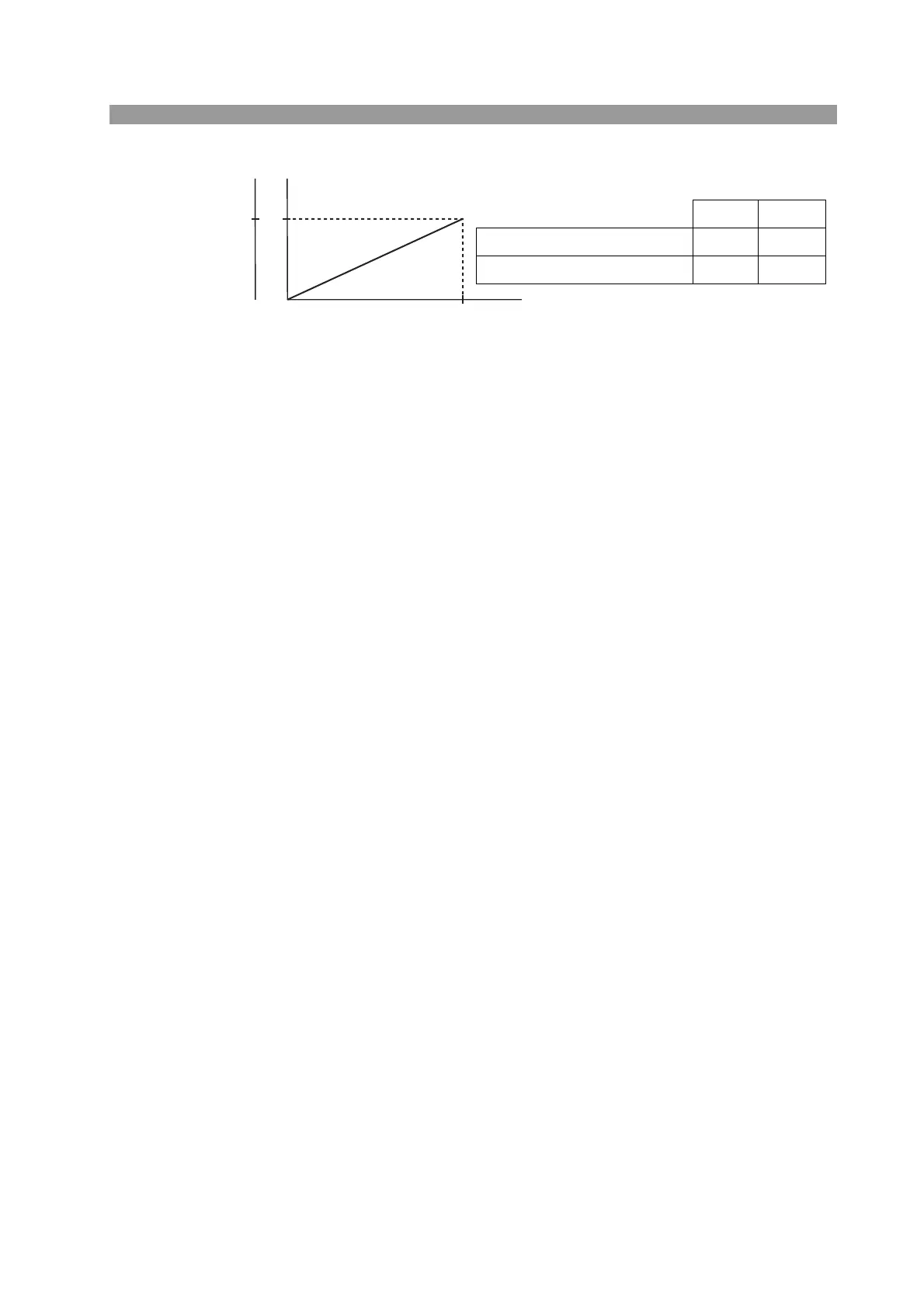

Fig. 6-48 Current monitor output
For parallel operation, the full scale of the current range is the total value of the units
connected in parallel. The monitor output corresponds to this full scale current (the
total of the full scale currents of each range).
Monitor output
V
H/L V M
0
Range
H/L M
0
Current Full scale of range
(Total value of all units
connected in parallel
during parallel operation)
VH/L VM
I MON OUT connector (BNC) 1 V 0.1 V
Across pins 2 and 3 of the J1 connector 10 V 1 V
