A-18 Appendix PLZ-4W

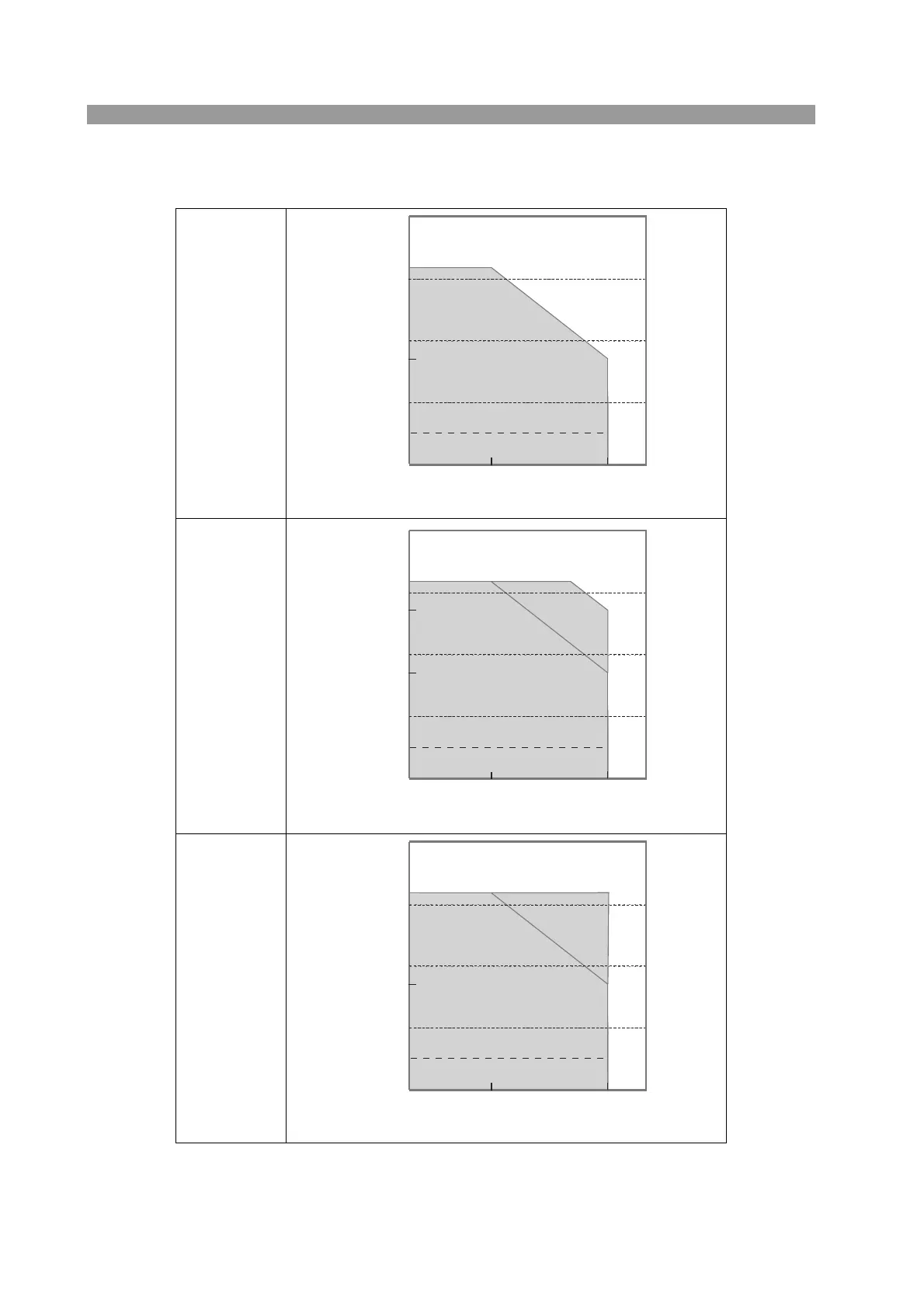

A.3.4 Operating Area of the PLZ164WA
PLZ164WA
(0 V input type)
H range
PLZ164WA
(0 V input type)
M range
PLZ164WA
(0 V input type)
L range
0.1
0.3
1
10
100
0.1 1 10
Input current [A]
Input voltage [V]
Operating area where
specifications are guaranteed
165W
150
5
1.1
33
0.1
0.3
1
10
100
0.01
0.1
1
Input current [A]
Input voltage [V]
Operating area where
specifications are guaranteed
16.5W
150
5
0.11
3.3
50
165W
CP mode M range
0.1
0.3
1
10
100
0.001
0.01
0.1
Input current [A]
Input voltage [V]
Operating area where
specifications are guaranteed
1.65W
150
5
0.011
0.33
CP mode L range
