Kinco FV20 Series User Manual

66
66
other industries and occasions requiring traverse
and winding. The typical work is shown in Fig. 6-56.

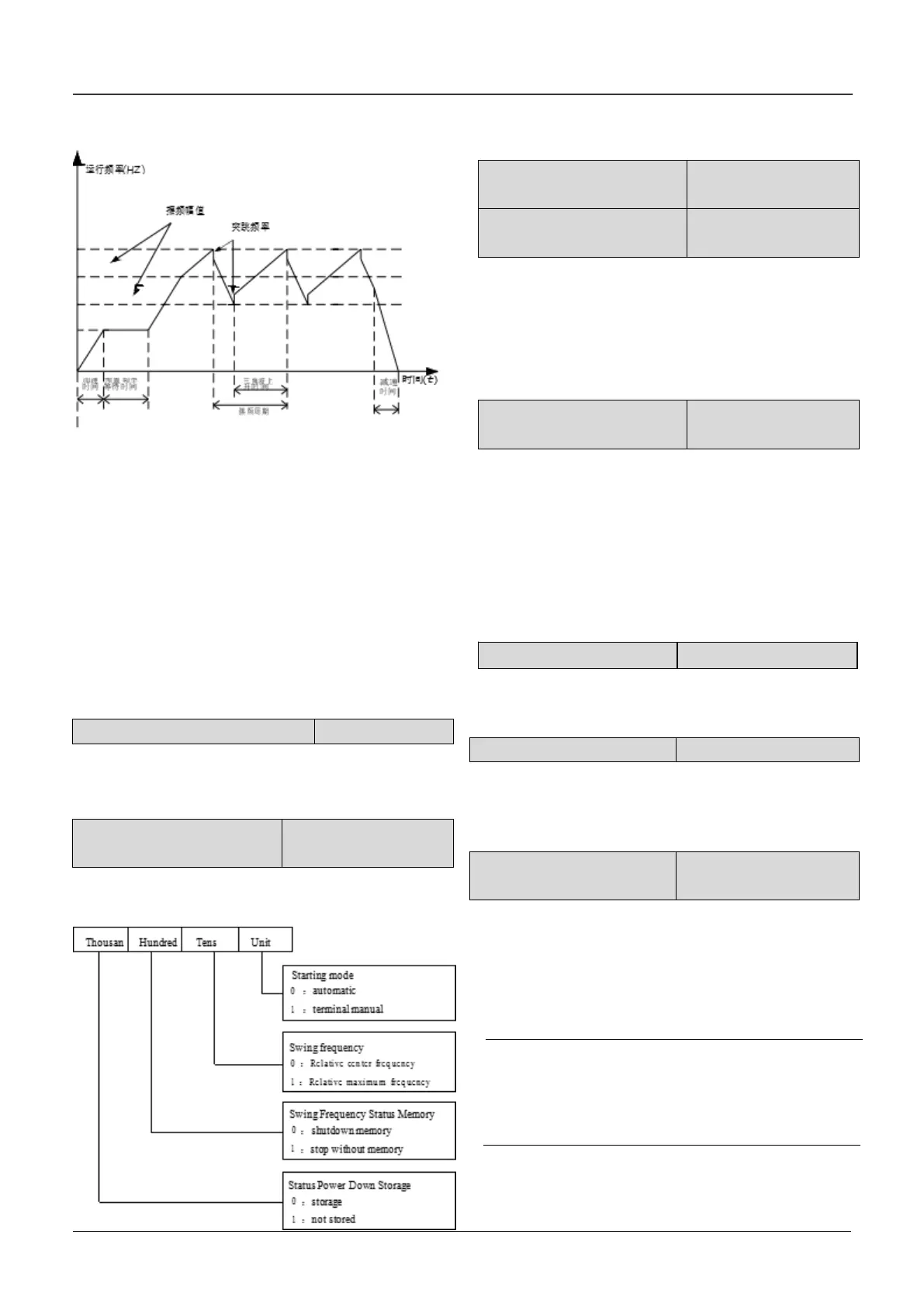

Fig. 6-56Schematic diagram of swing frequency
Swing frequency control process： firstly accelerate
to the swing preset frequency according to the
acceleration time (C3.02), and wait for a period of
time (C3.03), then accelerate to the center
frequency according to the acceleration time, and
then according to the set swing frequency amplitude
(C3.04), kick frequency (C3.05), swing frequency
cycle (C3.06), triangle wave rise time (C3.07)cycle,
until there is a stop command, decelerate to stop
according to the deceleration time.
C3.00 Textile function selection
0～1【0】
0：disable
1：enable
When set to 1, the swing frequency function is valid.
C3.01 Swing frequency
operation
0000～1111H【0000】
Set the swing frequency operation mode.As the Fig
6-57 shown.
Fig. 6-57 Swing Frequency Operation
C3.02 Swing frequency
preset frequency
0.00HZ~Upper limit
frequency【0.00HZ】
C3.03 Swing frequency
preset frequency waiting time
0.0~3600.0S【0.0S】
C3.02 It is used to set the running frequency before
the swing frequency running state. C3.03 is used to
set the running time in the swing frequency preset
frequency state. When the swing frequency running
mode is manual, the C3.03 setting is invalid.
C3.04 Swing frequency
amplitude
0.0%~50.0%【0.0%】
The swing frequency amplitude setting is a
percentage of the relative center frequency or the
maximum frequency.
Relative center frequency： swing frequency value
= center frequency * C3.04
Relative maximum frequency ： swing frequency
value = maximum frequency * C3.04
C3.05 Mutation frequency
0.0%~50.0%
【
0.0%
】
As shown in Figure 6-56, when C3.05 is set to 0, no
kickout frequency exists.
C3.06 Wobble cycle
0.0~999.9S【10.0S】
Define the swing frequency to rise and fall during
operation for a complete cycle time, as shown in
Figure 6-56.
C3.07 Triangle wave rise
time
0.0%~100.0%【50.0%】
The triangular wave rise time C3.07 is the
percentage of the relative swing frequency period.
As shown in Fig. 6-56, the swing frequency rise time
is the triangle wave rise time.
Note
Center frequency ： refers to the frequency value
corresponding to the set main frequency source mode.
Maximum frequency：refers to the value set by A0.08.
