6.19 Group d0
The parameters of Group d0 are used to monitor
some states of drives and motors.
d0.00 Main reference
frequency
－300.0～300.0Hz【0.00】
This parameter is used to monitor main reference
frequency at normal operation mode.
d0.01 Auxiliary
reference frequency
－300.0～300.0Hz【0.00】
This parameter is used to monitor the auxiliary
reference frequency at normal operation mode.
d0.02 Preset frequency
－300.0～300.0Hz【0.00】
This parameter is used to monitor the frequency
combined by main reference frequency and
auxiliary reference frequency. Positive indicates
running forwards, negative indicates running
reverse.
d0.03 Frequency after
Acc/Dec
－300.0～300.0Hz【0.00】
This parameter is used to monitor the drive’s output
frequency (include direction) after the drive
accelerating or decelerating.
d0.04 Output frequency
－300.0～300.0Hz【0.00】
This parameter is used to monitor the drive’s output
frequency (include direction).
d0.05 Output voltage
0～480V【0】
This parameter is used to monitor the drive’s output
voltage.
d0.06 Output current
0.0～3Ie【0】
This parameter is used to monitor the drive’s output
current.
d0.07 Torque current
－300.0％～300.0％【0.0％】
This parameter is used to monitor the percentage of
drive’s torque current that corresponding to the
motor’s rated current.
d0.08 Magnetic flux current
0.0％～100.0％【0.0】
This parameter is used to monitor the percentage of
drive’s magnetic flux current that corresponding to
the motor’s rated current.
d0.09 Motor power
0.0％～200.0％【0.0】
This parameter is used to monitor the percentage of
drive’s output power that corresponding to the
motor’s rated power.
d0.10 Motor
estimated frequency
－300.00～300.00Hz【0.00】
This parameters is used to monitor the estimated
motor rotor frequency under the condition of
open-loop vector control.
d0.11 Motor actual
frequency
－300.00～300.00Hz【0.00】
This parameter is used to monitor the actual motor
rotor frequency measured by encoder under the
condition of close-loop vector control.
d0.12 Bus voltage
0～800V【0】
This parameter is used to monitor the drive’s bus
voltage.
d0.13 Drive
operation status
0000～FFFFH【0000】

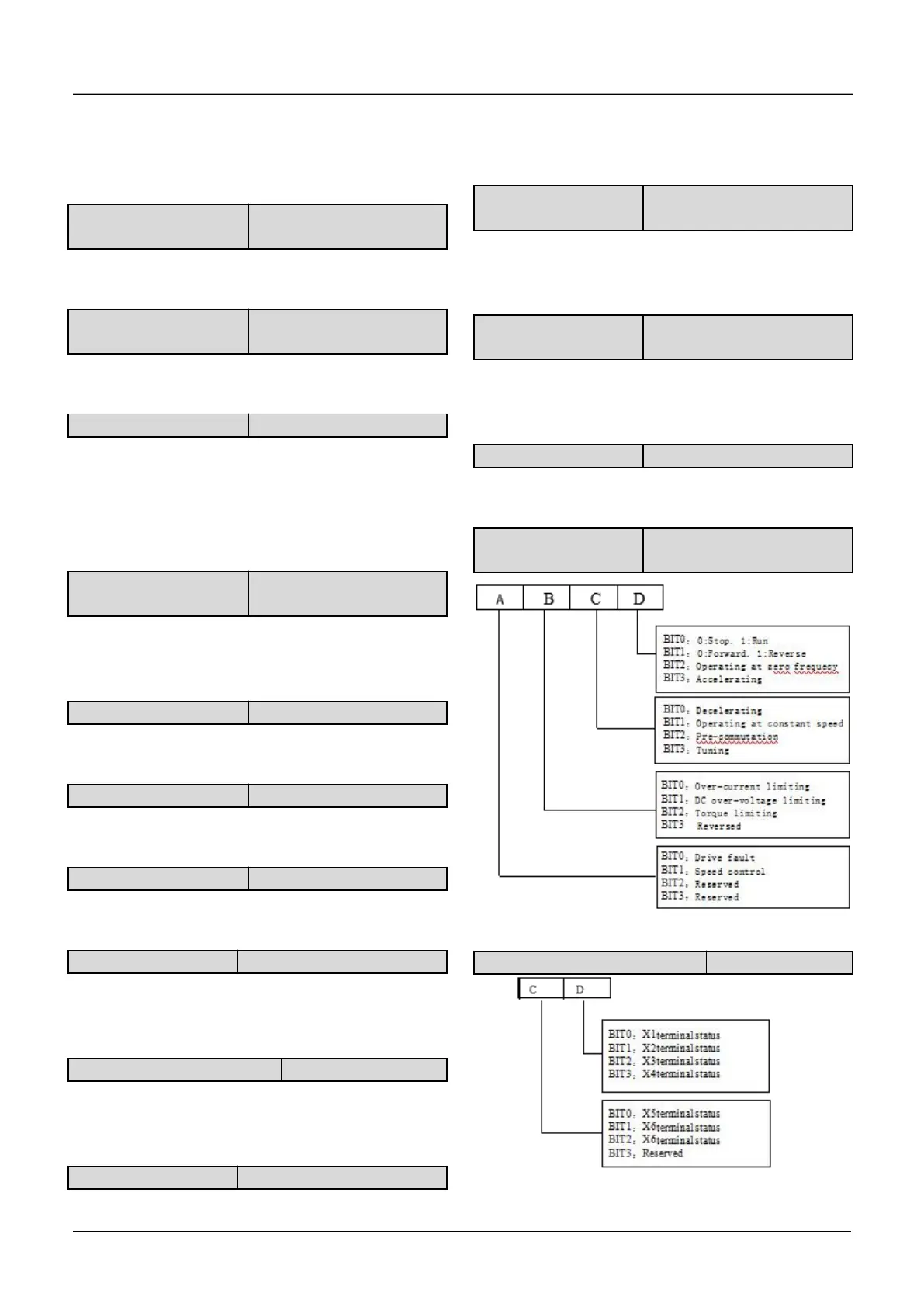

Fig.6-47 The drive’s operation status
d0.14 Input terminals status
00～FFH【00】
Fig.6-48 Input terminals status
