Chapter 5 Operation Instructions of Kinco VFD
5.1 Using Operation Panel
5.1.1 Operation panel appearance and keys’ function description

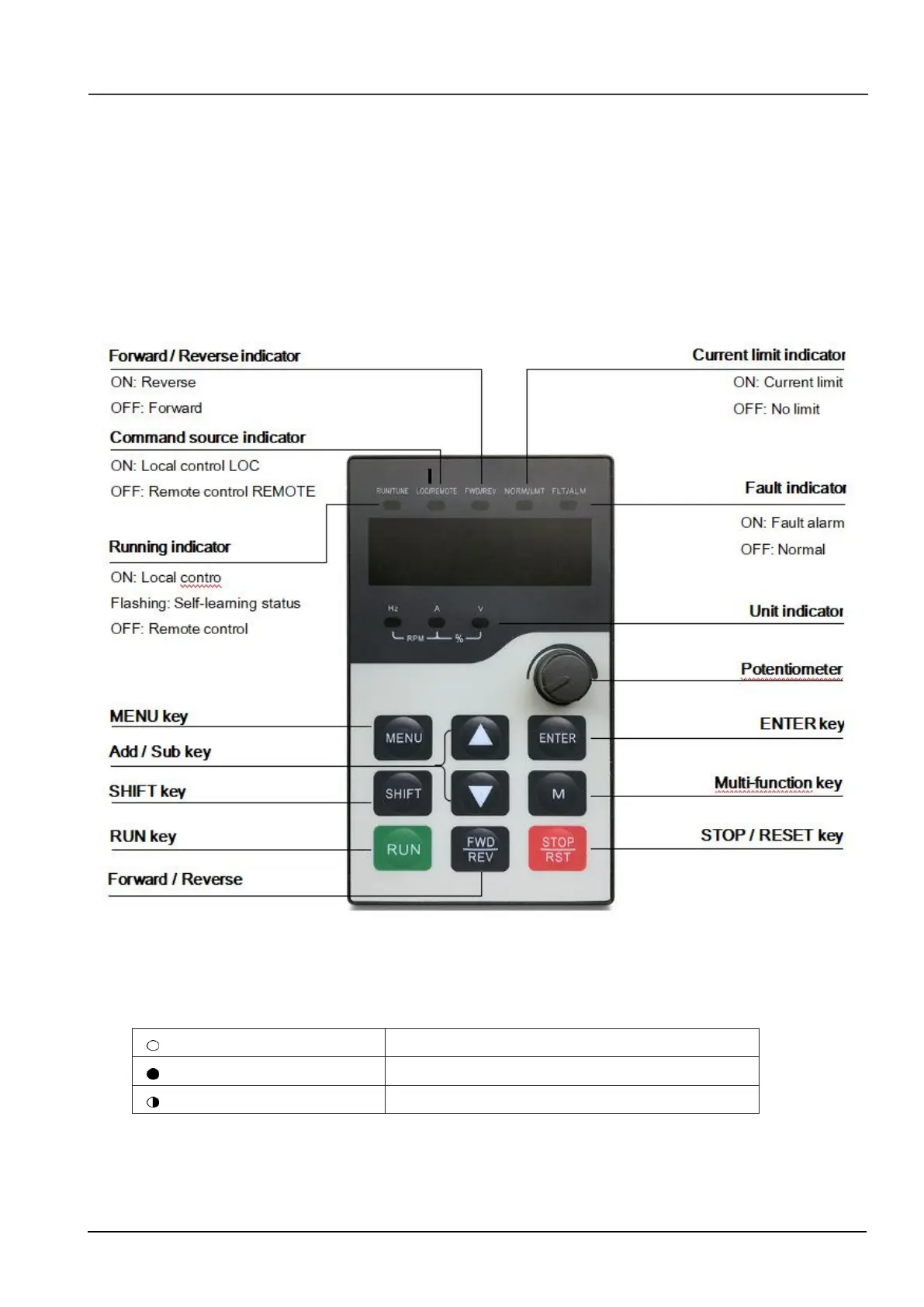

Operation panel is used to setup the drive and display parameters, it is LED display. As shown in Fig.5-1
Function indicator：
 RUN/TUNE： Light is on, VFD is in running state. Light is off, VFD is in tunning state.
 LOC/REMOTE： Panel operation, terminal operation and communication control indicator.
LOCAL/REMOT：Light off
Run/Stop in panel control
LOCAL/REMOT：Light on
Run/Stop in terminal control
LOCAL/REMOT：Light blink
Run/Stop in communication control
 FWD/REV： Light is on, VFD runs forward; Light is off, VFD runs reversely.
