Kinco SV100 Series User Manual

28
1: Reverse
A0.06 Acc time 1
0.0~6000.0s
【6.0s】
A0.07 Dec time 1
0.0~6000.0s
【6.0s】
Default value of Acc/Dec time 1：
2KW or below:6.0S
30KW~45KW:20.0S
45KW or above:30.0S
Acc time is the time taken for the motor to accelerate
from 0Hz to the maximum frequency (as set in A0.08).
Dec time is the time taken for the motor to decelerate
from maximum frequency (A0.08) to 0Hz.
SV100 series VFD has defined 4 kinds of Acc/Dec
time.(Here only Acc/Dec time 1 is defined, and Acc/Dec
time 2~4 will be defined in A4.01~A4.06),and the
Acc/Dec time 1~4 can be selected via the combination
of multiple function input terminals,please refer to
A6.00~A6.07.
A0.08 Max. output
frequency
Max{50.00,A0.11 upper
limit of frequency}~300.00Hz
【50.00】
A0.09 Max. output
voltage
0～480V【VFD’s rating
values】
A0.10 Upper limit
of frequency
A0.12~A0.09【50.00】
A0.11 Lower limit
of frequency
0.00~A0.11【00.00】
A0.12 Basic
operating frequency
0.00~Max. output frequency
A0.08【50.00】
Max output frequency is the highest permissible output
frequency of the drive, as shown in Fig. 6-1 as F
max
;
Max output voltage is the highest permissible output
voltage of the drive, as shown in Fig. 6-1 as V
max
Upper limit of frequency is the highest permissible
operating frequency of the user setting, as shown in Fig.
6-1 as F
H.
Lower limit of frequency is the lowest permissible
operating frequency of the user setting,as shown in
Fig.6-1 as F
L
.
Basic operating frequency is the Min. frequency when
the drive outputs the max voltage in V/F mode, as shown
in Fig. 6-1 as F
b

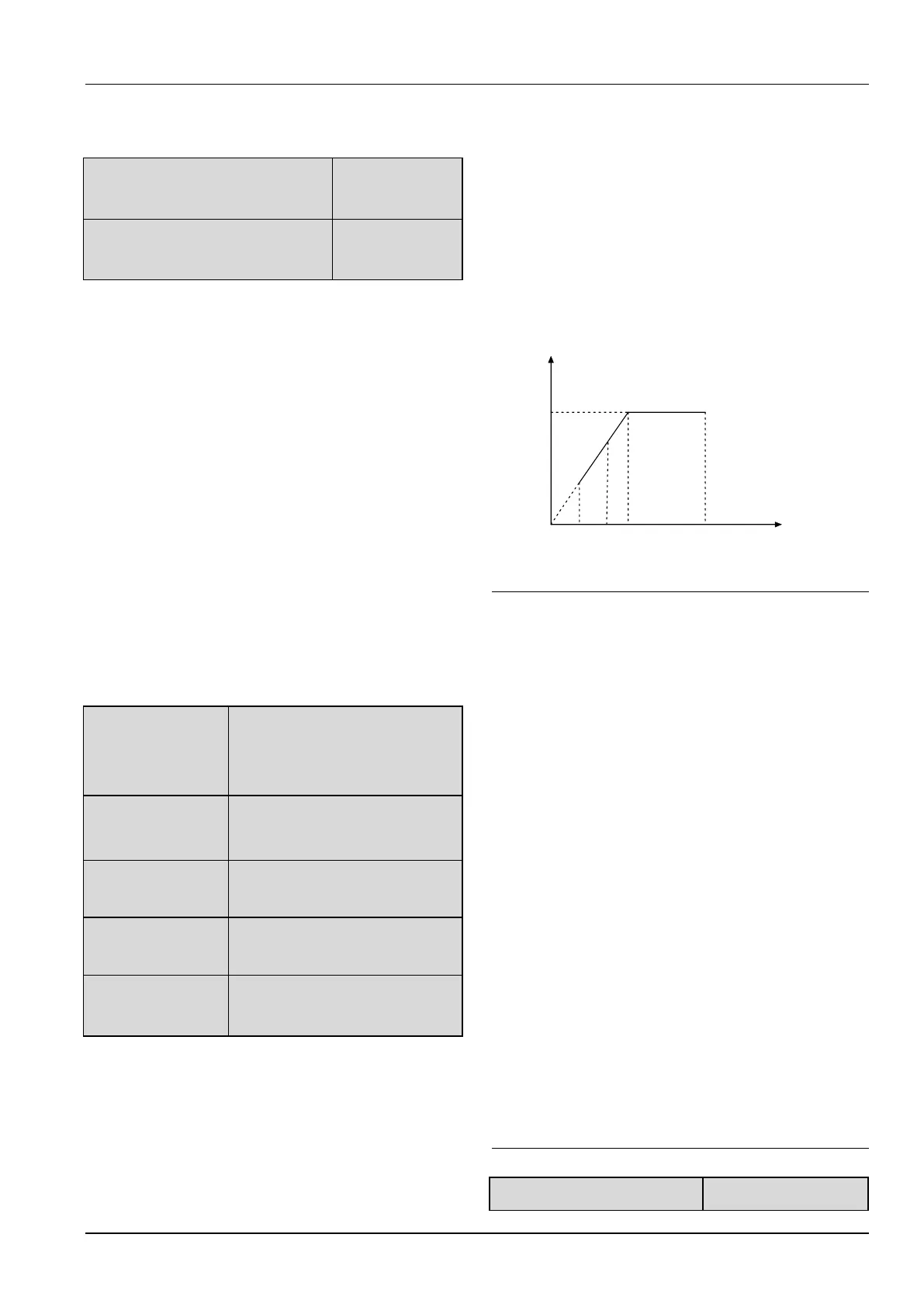

Fig.6-1 Characteristic parameters
Note:
1．Please set Fmax, F
H
and F
L
carefully according to
motor
Parameters and operating states.
2．F
H
and F
L
is invalid for JOG mode and auto tuning
mode.
3．Besides the upper limit of frequency and lower limit
of frequency,the drive is limited by the setting value of
frequency of starting,starting frequency of DC braking
and hopping frequency.
4．The Max. output frequency,upper limit frequency and
lower limit frequency is as shown in Fig.6-1.
5．The upper/lower limit of frequency are used to limit
the actual output frequency.If the preset frequency is
higher than upper limit of frequency,then it will run in
upper limit of frequency.If the preset frequency is lower
than the lower limit of frequency,then it will run in lower
limit of frequency.If the preset frequency is lower than
starting frequency,then it will run in 0Hz.
A0.13 Torque boost of motor 1
0.0～30.0％【0.0％】
F
L
F
H
F
b
F
m
a
x
V
m
a
x
Output
Voltage
Output frequency
