2-3

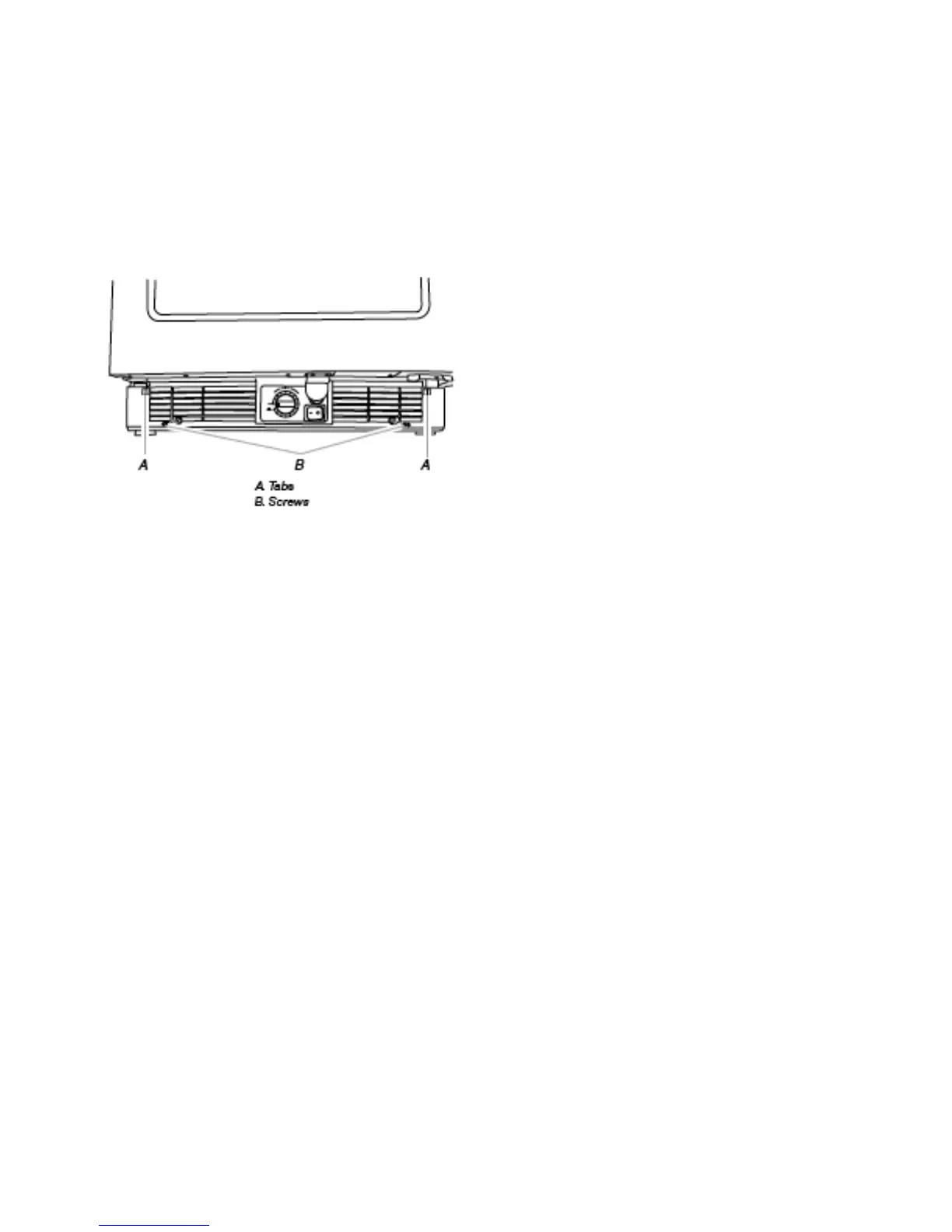

REMOVE THE BASE GRILLE
Open the unit door.
Using a Phillips screwdriver, remove the two
screws. Push both tabs in toward the center
to release the base grille from the unit.
Remove the base grille.
1.
2.
3.
REPLACE THE
BASE GRILLE
Open the unit door.
Position the base grille so that both tabs align
and the base grille snaps into place. Replace
the two screws. Tighten the screws.
1.
2.
