KitchenAid KUWS24LSBS - Wiring Connector Block

4-9

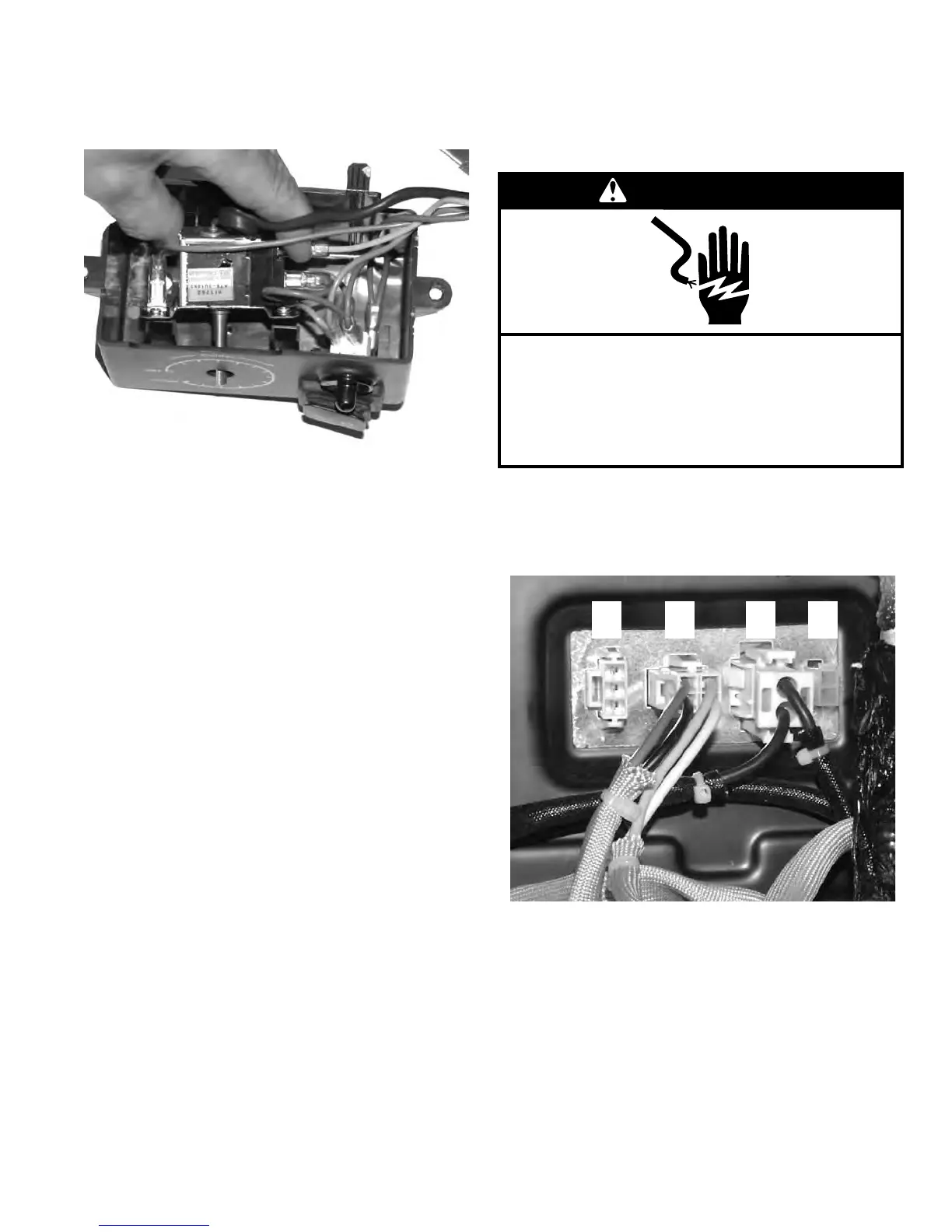

The wiring connector block located behind the
evaporator cover has 4 connections on it. All
three units, UW, BC, UR, have the same con-
nector block.
Evaporator Fan Motor connection
Defrost Thermostat connection
Defrost Heater connection
Separator Display connection for UW & BC
models.
1.
2.
3.
4.
WIRING CONNECTOR
BLOCK
1 2 3 4
WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Failure to do so can result in death or
electrical shock.
Replace all parts and panels before operating.
Remove the control knob. Remove the ther-
mostat control by rotating the back of the
thermostat up and out of the control box.
NOTE: The rocker light switch shown is not
included on the Undercounter refrigerator
control box.
8.
9.
