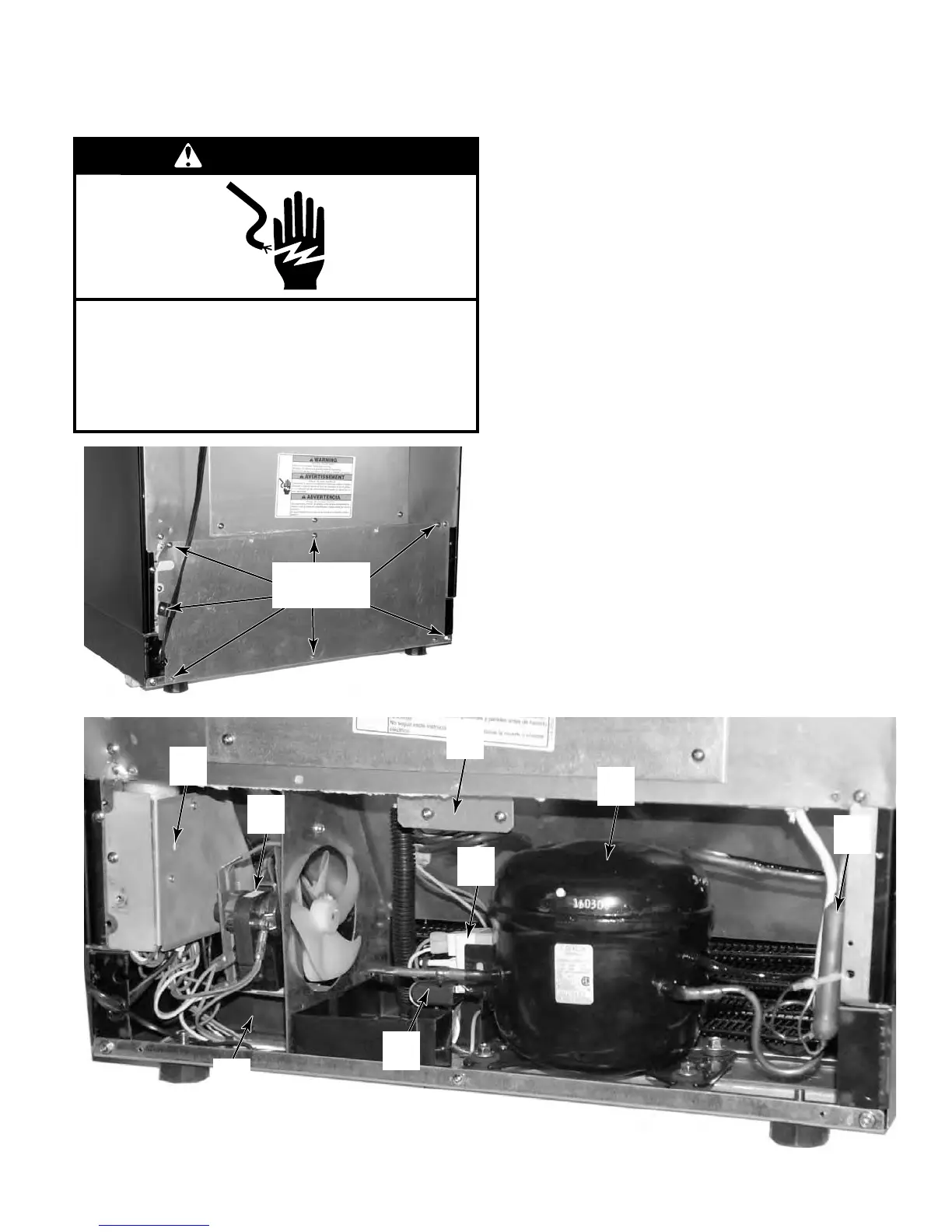

Remove the seven screws that attach the ac-
cess panel to the rear of the unit
Components accessible with the component
cover removed are:
1. Defrost Timer
2. Condenser Fan Motor
3. Ambient Thermostat
4. Relay / Overload
5. Run Capacitor
6. Compressor
7. Filter / Drier
8. Temperature Display Transformer.
1.
2.
•
•
•
•
•
•
•
•
ACCESSING THE UNIT COMPARTMENT
Remove 7
Screws
7
6
3
4
2
1
5
8
WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Failure to do so can result in death or
electrical shock.
Replace all parts and panels before operating.
