4-20
Remove two screws that secure the con-
denser fan to the bracket and remove the
fan.
4.
Remove the unit compartment cover (see
page 4-15)
Remove the drain pan (see page 4-19)
Remove three wire connectors from the con-
denser fan.
1.
2.
3.

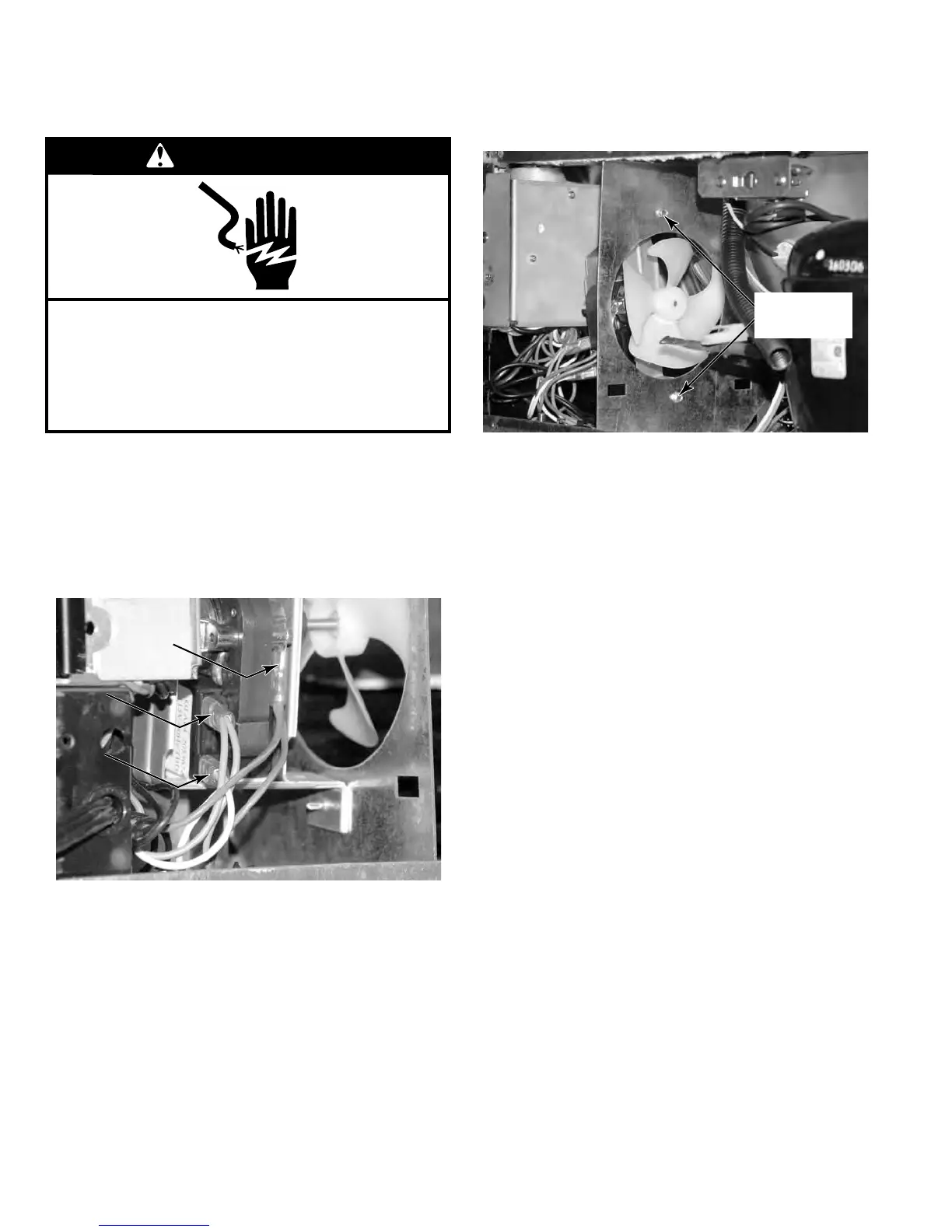

REMOVE CONDENSER FAN
WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Failure to do so can result in death or
electrical shock.
Replace all parts and panels before operating.
Two
Screws
To Next Page
