5-3
See Page 4-20 for access and removal pro-
cedures for the condenser fan and motor.
Touch the leads of an ohmmeter to the termi-
nals of the condenser fan motor.
The meter should indicate 90 ohms + 10%
1.
2.
3.

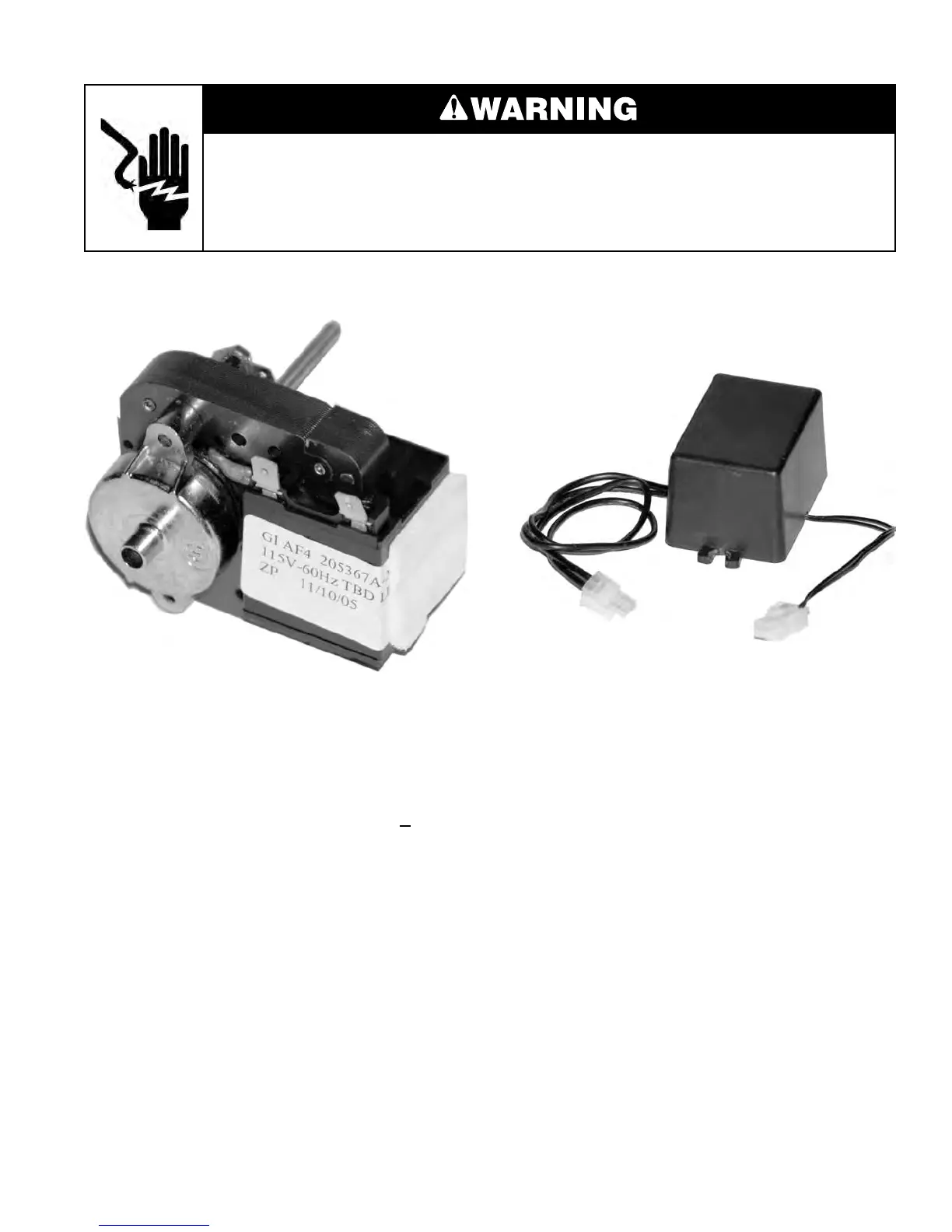

CONDENSER FAN MOTOR
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before operating.
Failure to do so can result in death or electrical shock.
See Page 4-21 for access and removal pro-
cedures for the temperature display trans-
former.
The long wire shown on the left connects to
the primary winding.
Touch the leads of an ohmmeter to the termi-
nals of the long wire shown on the left.
The meter should indicate 225 ohms.
The short wire shown on the right connects
to the secondary winding.
Touch the leads of an ohmmeter to the termi-
nals of the short wire shown on the right.
The meter should indicate 4.5 to 4.6 ohms.
1.
2.
3.
4.
5.
6.
7.
TEMPERATURE DISPLAY
TRANSFORMER
Secondary Winding
Connector
Primary Winding
Connector
To Next Page
