4-11
Carefully remove the thermal fuse at the right
side of the evaporator.
Disconnect the wiring connector from the
wiring connector block at position 2. (See
page 4-9) The thermostat and thermal fuse
are connected to the same harness and are
removed together.
3.
4.

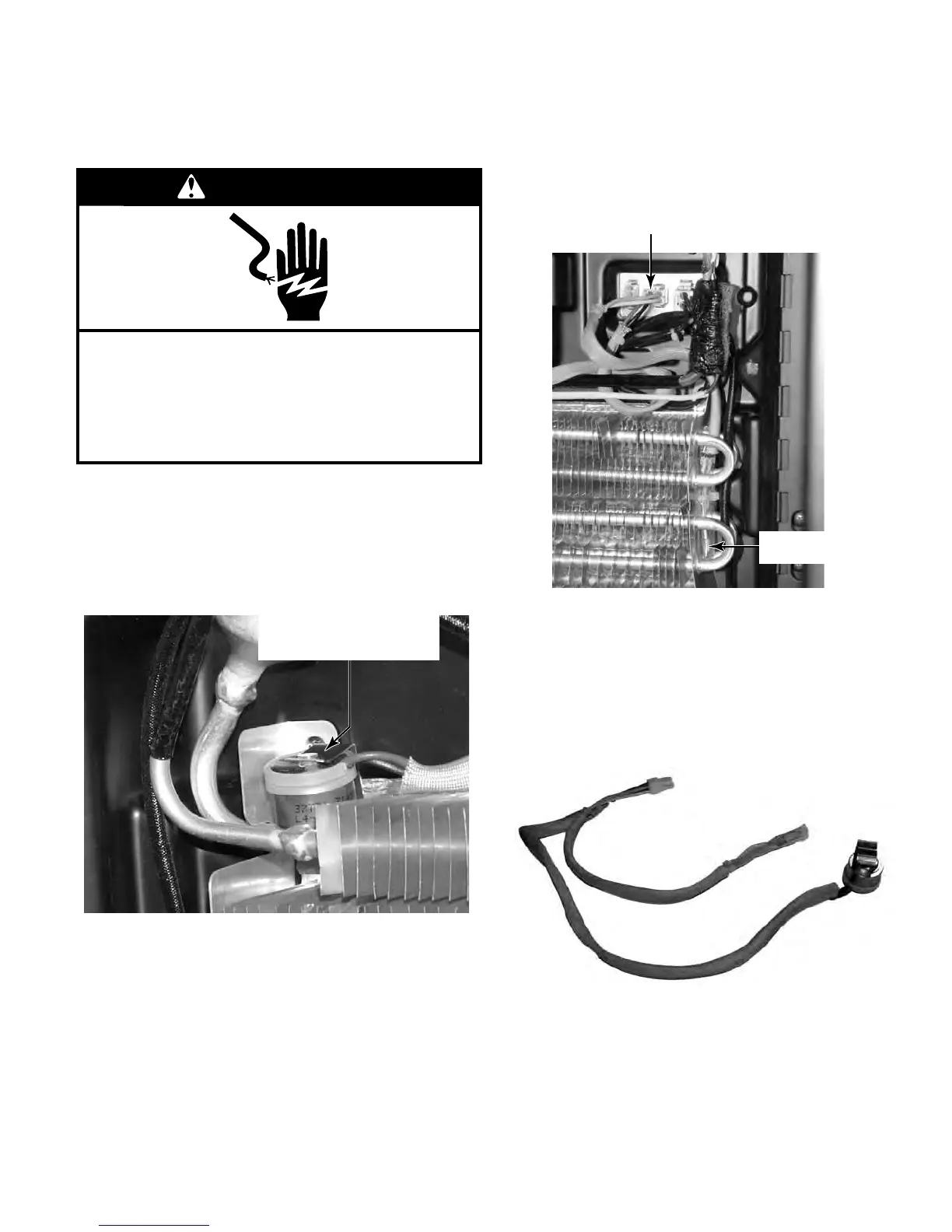

To Remove the defrost thermostat and ther-
mal fuse, begin by removing the evaporator
cover (See page 4-4).
Unclip the metal bracket that secures the
thermostat to the top left of the evaporator.
1.
2.
REMOVE THE DEFROST THERMOSTAT
AND THERMAL FUSE
Wiring connector
Thermal fuse
Metal Thermostat
Bracket
WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Failure to do so can result in death or
electrical shock.
Replace all parts and panels before operating.
To Next Page
