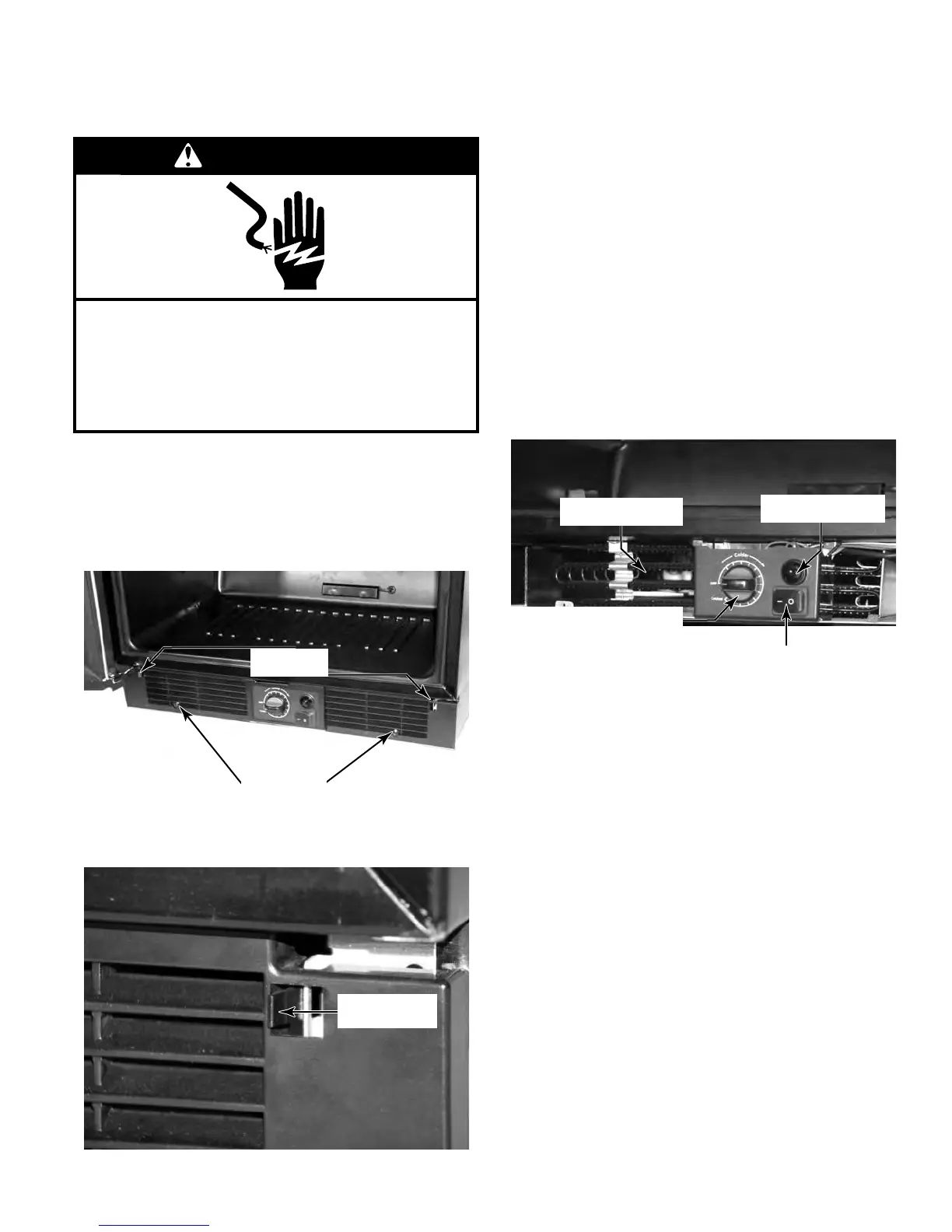

Open the unit door.
Using a Phillips screwdriver, remove the
two screws that secure the base grille to the
unit.
Push both tabs in toward the center to re-
lease the base grille from the unit.
1.
2.
3.
Remove the base grille.
Components accessible with the base grille
removed are:
Condenser
Thermostat control
Door switch
Rocker light switch (not included on the Un-
dercounter refrigerator)
4.
5.
•
•
•
•
REMOVE THE BASE GRILLE
WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Failure to do so can result in death or
electrical shock.
Replace all parts and panels before operating.
Screws
Tabs
Thermostat Knob
Condenser
Rocker Light Switch
Door Switch
Push tab
