4-18
Remove the unit compartment cover (see
page 4-15)
Use a small screwdriver to lift the wire retain-
er off of the Run Capacitor
Disconnect the wire connector from the Re-
lay / Overload.
1.
2.
3.

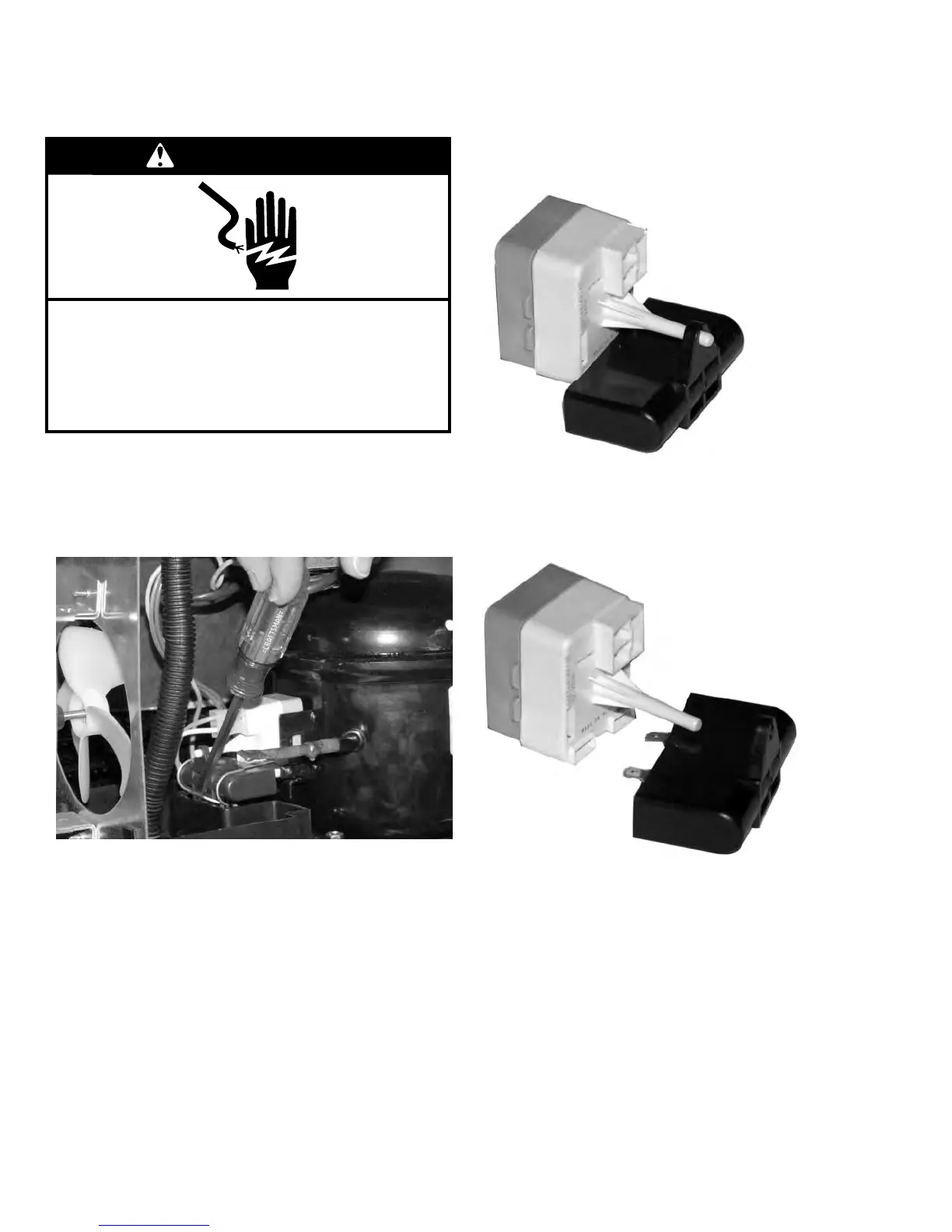

REMOVE THE RELAY / OVERLOAD & RUN CAPACITORS
Pull the Run capacitor and the Relay / Over-
load off the terminals of the compressor.
Pull the Run capacitor off the support rod of
the Relay / Overload.
4.
5.
WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Failure to do so can result in death or
electrical shock.
Replace all parts and panels before operating.
