Section 2
Installation
20425561
5-2005/Rev 0
2-2
2.3 Site Requirements
The intensifier must be installed indoors where air borne dust and contaminants are minimal. The
ambient temperature should be between 40° F (5° C) and 104° F (40° C), with a maximum
relative humidity of 95 percent.
Refer to Table 2-1, Equipment Dimensions and Weight, to establish a suitable installation site. A
minimum clearance of 36 inches (914 mm) should be provided on all sides of the machine to
facilitate service.

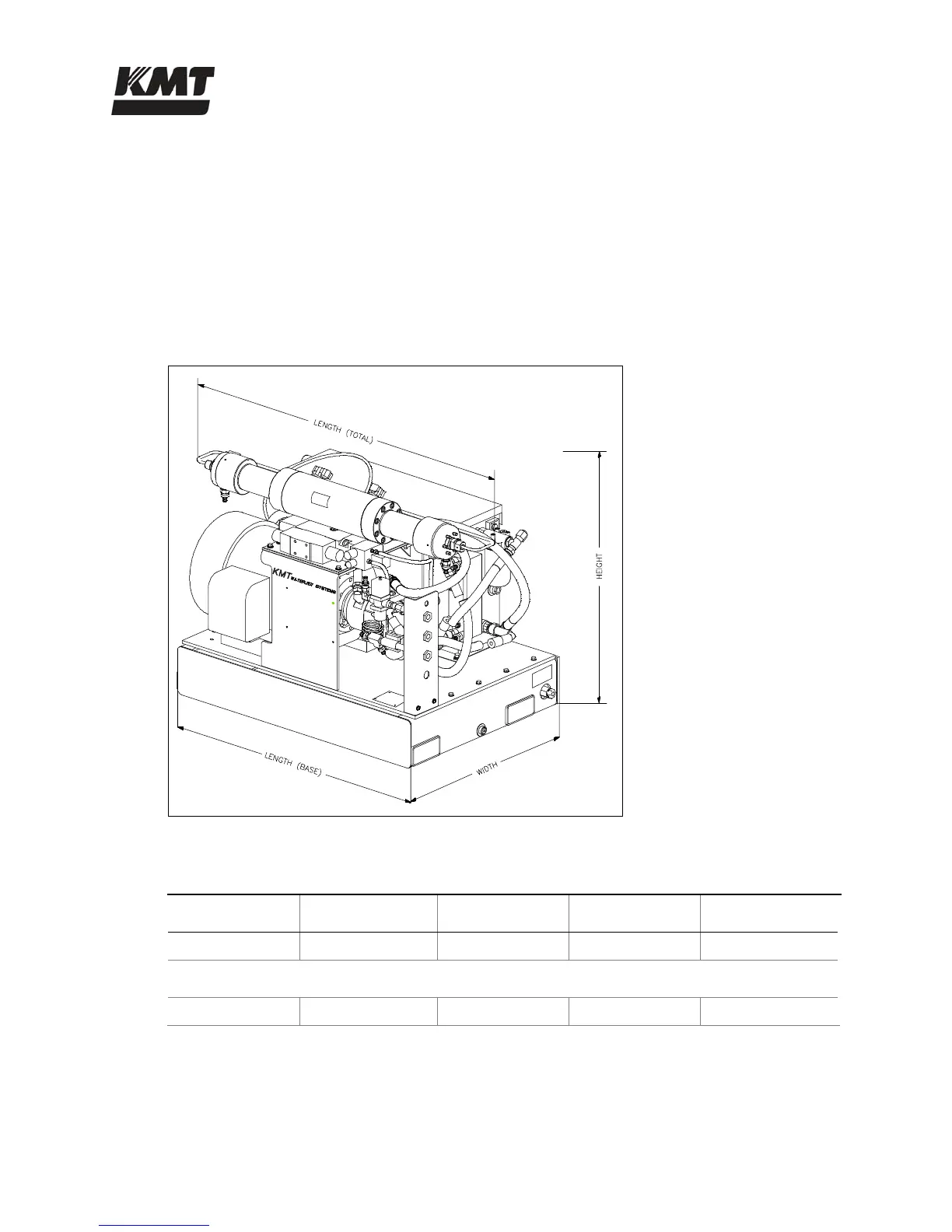

Figure 2-1: Equipment Dimensions
Table 2-1
Equipment Dimensions and Weight
Total Length Base Length Width Height Weight
53.50” (1,359 mm) 44.00” (1,117 mm) 32.39” (823 mm) 37.00” (940 mm) 1,750 lbs (794 kg)
Redundant Model
39.07” (992 mm) 28.25” (718 mm) 2,030 lbs (921 kg)
