Section 2
Installation
20425561
5-2005/Rev 0
2-7
2. Multiply the pressure drop (PSI/FT) by the length in feet of each pipe size used from the
water source to the intensifier. Add the values together for a total pressure drop value.
3. Add 30 to the total pressure drop to determine the minimum flowing, source water
pressure required to provide adequate supply to the intensifier.
Cutting water and cooling water capacity should be calculated separately. Note that the cutting
water requirements represent instantaneous, not average, demand.

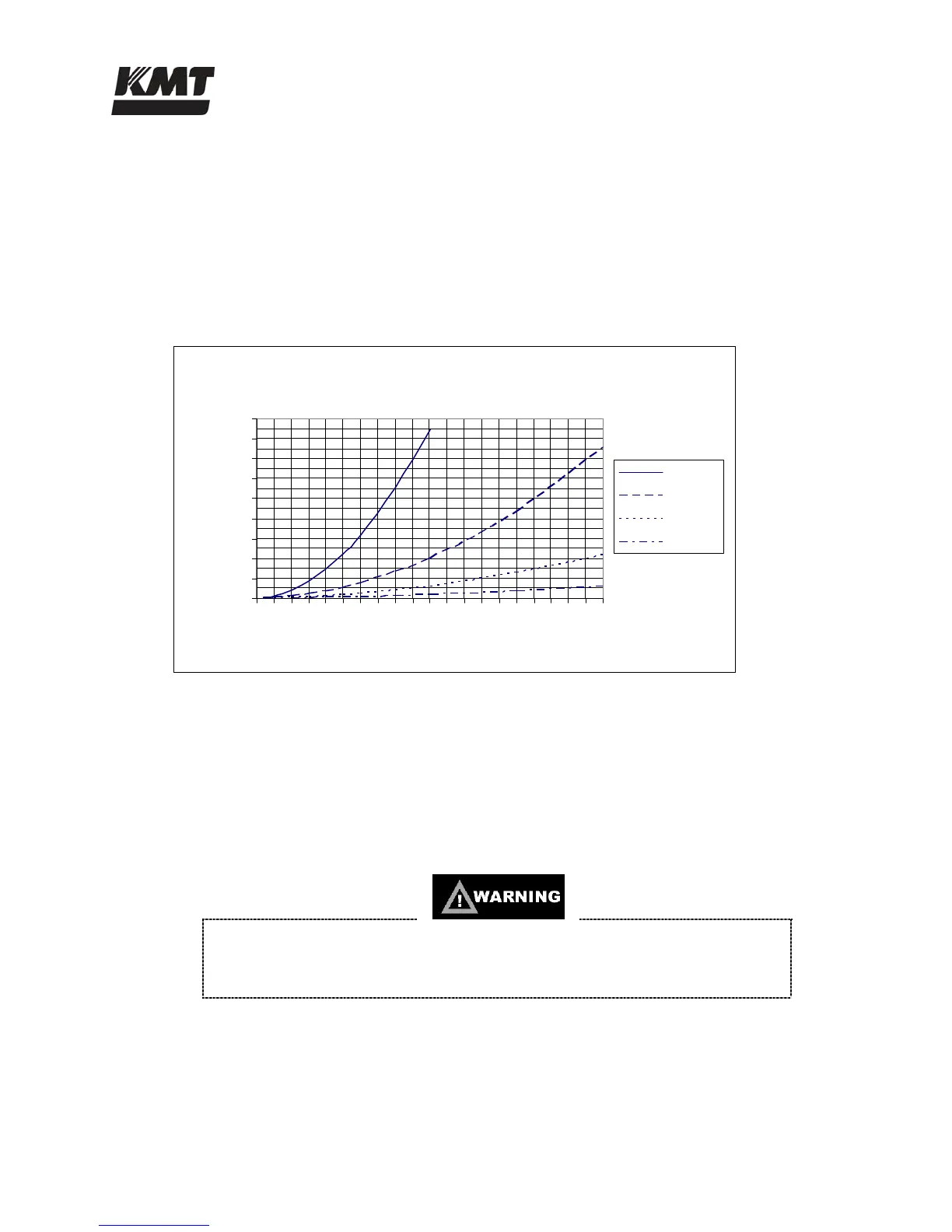

Figure 2-4: Pressure Drop Values
Pipe Sizing
0
0.05
0.1
0.15
0.2
0.25
0.3
0.35
0.4
0.45
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 1617 18 19 20
Required GPM
Pressure drop (PSI/FT
1/2" ID
3/4" ID
1" ID
1-1/4" ID
2.7 High Pressure Piping
High pressure piping is used to transport high pressure cutting water from the machine to the
cutting station. High pressure piping and fittings must be properly rated and sized. When
transporting high pressure water over long distances, tubing and fittings with an outside diameter
of 9/16-inch are recommended. The large tubing size reduces vibration, strain and motion; as
well as reducing pressure drop and pulsation.
High pressure tubing and fittings must be rated for 60,000 psi (4,136 bar). Failure
to use properly rated components may result in component failure causing
equipment damage, personal injury or death.
High pressure tubing lengths must be coned and threaded prior to installation. KMT Waterjet
provides both hand and power tools for coning and threading high pressure tubing. Tool
descriptions and part numbers are provided in Table 2-4.
