Section 1
Introduction
20425553
5-2005/Rev 0
1-2
• Each long, slow stroke of the plunger moves more water, while reducing seal and
component wear.
The following options are available at the time of purchase, or as upgrades for existing
equipment.
• A booster pump and low pressure water filter ensure water quality and supply to the high
pressure system.
• A safety dump valve instantly releases high pressure from the system.
• The individual cables in the electrical wiring harness are attached to terminal blocks inside
the optional junction box.
• Proportional pressure control provides remote control of hydraulic operating pressure.
1.3 Operational Overview
The following provides a brief overview of the function and primary components associated with
the individual systems. A detailed discussion of each system is provided in Sections 4 through 8.
Equipment specifications are provided in Section 10, Specifications.
Low Pressure Water System
The low pressure water system supplies the cutting water flow to the intensifier. The optional
booster pump and low pressure water filter assembly enhance performance and allow the pressure
of the cutting water supply to be monitored.

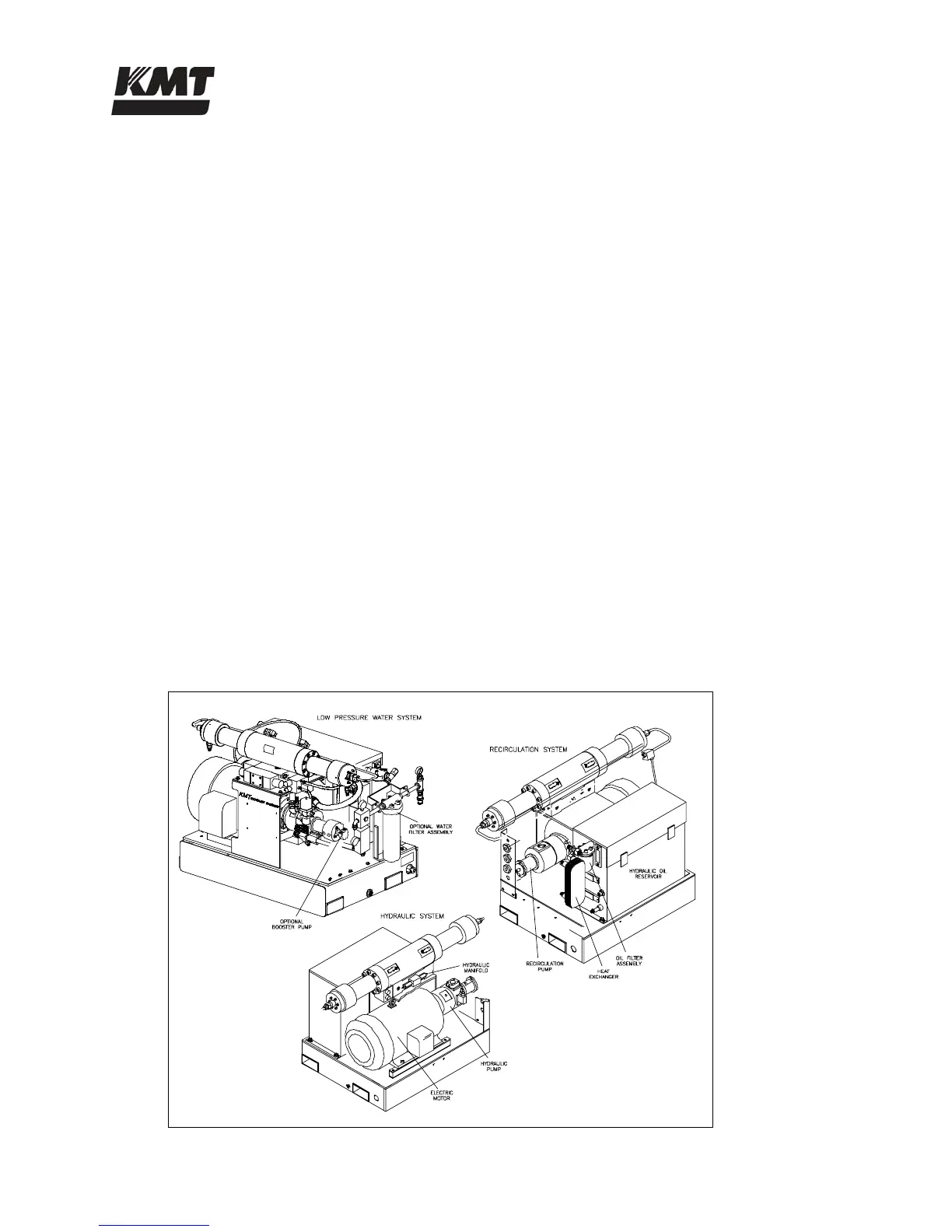

Figure 1-1: System Components
