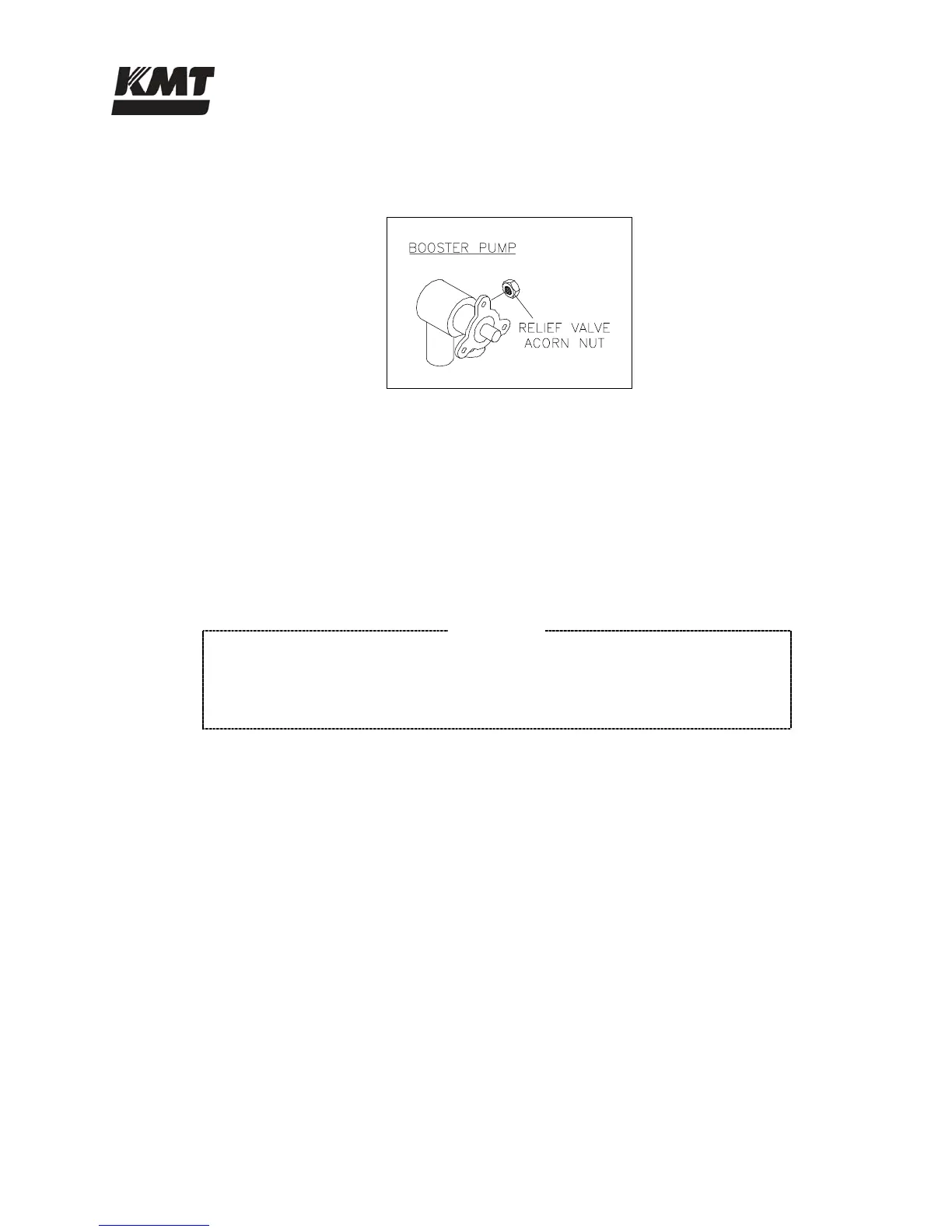

Remove the acorn nut on the side of the booster pump and use a flat blade screwdriver to
turn the adjustment screw. Turn the screw clockwise to increase the pressure or counter-
clockwise to decrease the pressure.
12. Install a large, inexpensive orifice and start the machine.
13. Select high pressure operation. Increase the high pressure setting in gradual increments,
checking for leaks at each interval. Continue increasing the pressure until the operating
pressure is reached.
The high pressure setting is increased by turning the high pressure control valve on the
hydraulic manifold clockwise, or from the controller if equipped with proportional
pressure.
NOTE
It is strongly recommended that the high pressure plumbing be purged under high
pressure operating conditions, using a large, inexpensive orifice. Contamination
can be released when the tubing expands under pressure. Early orifice failures
could be experienced if the piping is not adequately purged.
2.10 Decommissioning
All local regulations must be adhered to when the intensifier is decommissioned and taken out of
service for any reason.
