Section 8
High Pressure Water System
20425618
5-2005/Rev 0
8-28
Severe injury can result if the machine is not properly locked out. Observe
electrical Lockout/Tagout procedures before proceeding.
Ensure all pressure is relieved or blocked from the hydraulic and high pressure
circuits before proceeding.
2. Disconnect the high and low pressure water piping from both ends of the intensifier,
following the procedure, High and Low Pressure Water Piping.
3. Remove the high pressure cylinder assembly on each end of the intensifier, following the
procedure, High Pressure Cylinder Assembly Removal.

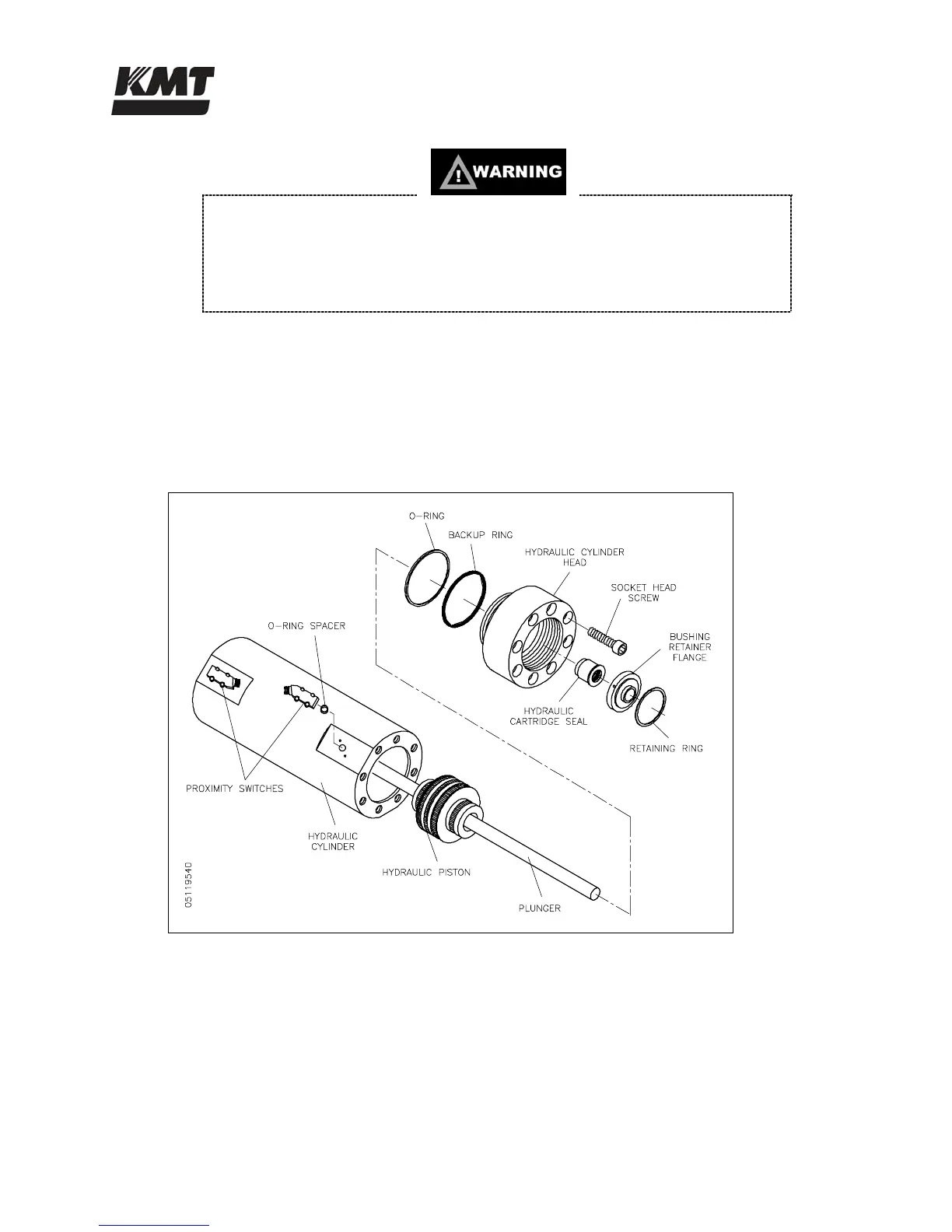

Figure 8-19: Hydraulic Piston Removal
4. Remove both of the proximity switches to prevent interference.
5. Remove the retaining ring, bushing retainer flange and the hydraulic cartridge seal from
both hydraulic cylinder heads. It is not necessary to remove the plunger.
6. Loosen and remove the socket head screws in one of the hydraulic cylinder heads.
